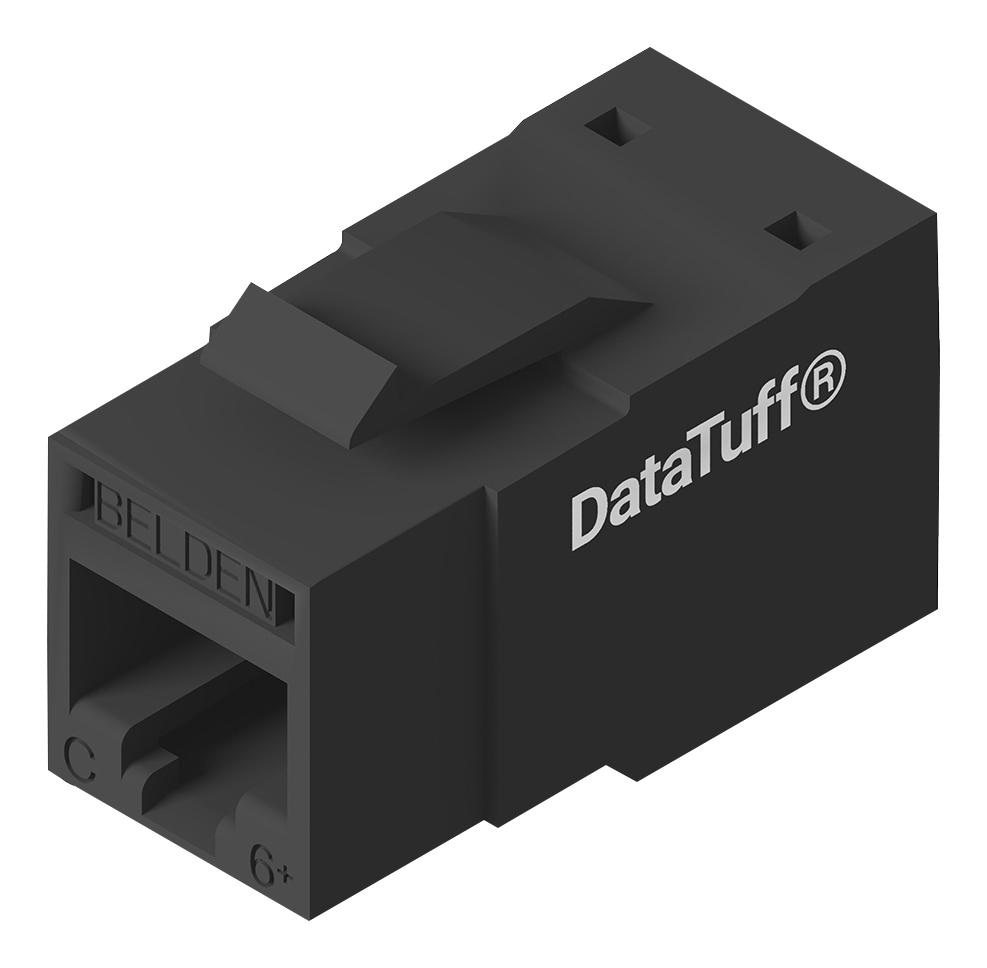

BELDEN RV6IJ2UBKB24 Industrial Ethernet Jack
The industrial REVConnect CAT6+ UTP modular jack offers reliable connectivity for high-speed Ethernet systems. Designed for TIA Category 6 and ISO Class E standards, it supports 1GBASE-T applications across various systems including 2400, 3600, and 4800. The jack features copper cladded flexible PCB contacts with gold plating, a UL94V-0 rated PBT body, and is compatible with REVConnect termination tools. Its robust design ensures secure connections with retention of 15 lbs. for cables, 20 lbs. for hardware, and 11.250 lbs. for plugs. Suitable for indoor environments, it meets UL, IEC, and IEEE standards, supporting Power over Ethernet up to 100W and Flame UL2043 certification.
BELDEN RV6IJ2UBKB24 Industrial Ethernet Jack Specifications:
- Dimensions: not specified
- Material: Copper clad flexible PCB, gold plated contacts over nickel, UL94V-0 PBT body
- Wiring Scheme: T568A/B
- Weight: 0.016 lbs.
- Operating Temperature Range: -40°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Cable/Connector Retention: 15 lbs.
- Connector/Hardware Retention: 20 lbs.
- Plug/Connector Retention: 11.250 lbs.
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.3 A
- Insulation Resistance: 500 M-Ohm minimum
- Max Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
- Standards: UL94V-0, IEEE 802.3at/abc, RoHS, UL, IEC 60603-7
- Environmental: Indoor use, Flame UL2043
Buy the Belden RV6IJ2UB – Reliable Industrial Ethernet Jack for CAT6+ Applications
Enhance your network infrastructure with this high-performance industrial Ethernet jack designed for reliable CAT6+ connections. Compatible with standard faceplates and patch panels, it supports Power over Ethernet up to 100W, making it ideal for industrial and high-speed data applications. Made with durable copper contacts and UL-approved materials, ensuring compliance with industry standards. Easy to install using REVConnect termination tools, this jack guarantees secure connections and optimal performance in indoor environments. Upgrade your network seamlessly with this trusted modular connector.
Get Belden RV6IJ2UB today—built for high-speed industrial networking and long-lasting durability.
