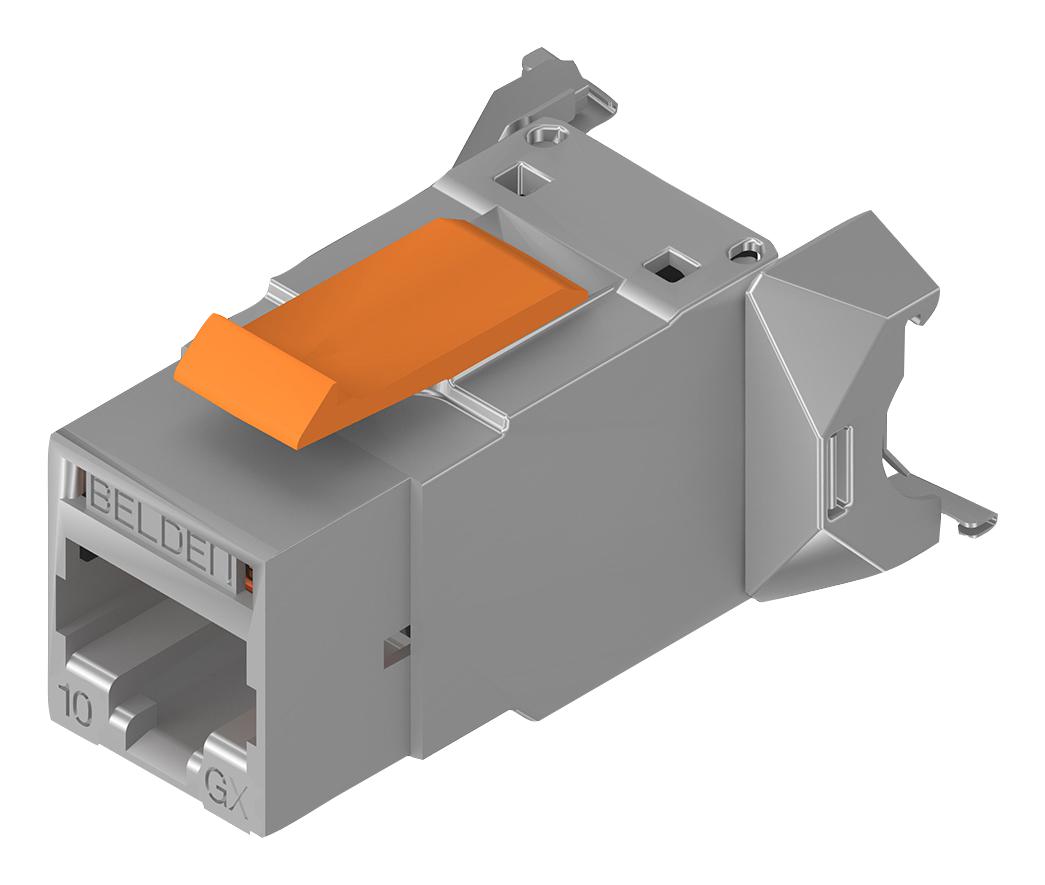

BELDEN RVAIJ2SMEB24 Shielded Modular Jack
The industrial REVConnect 10GX shielded modular jack offers high-performance connectivity with a rugged zinc alloy body, gold-plated contacts, and compatibility with T568A/B wiring schemes. Designed for shielded Category 6A systems, it supports high-speed data transmission up to 10GBASE-T, meeting industry standards like IEEE 802.3at for Power over Ethernet. Its robust build ensures reliable connections in demanding environments, with excellent insertion loss and temperature resilience from -40°C to +70°C. Suitable for professional networking, data centers, and industrial applications, this jack ensures fast, secure, and shielded network connections.
BELDEN RVAIJ2SMEB24 Shielded Modular Jack Specifications:
- Dimensions: Not specified
- Materials: Copper cladding, nickel plating, zinc alloy body, gold-plated contacts
- Wiring Scheme: T568A/B
- Connection Compatibility: RJ45, RJ11
- Insertion Loss: 0.100 dB at 1 MHz, 0.200 dB at 100 MHz, 0.350 dB at 300 MHz
- Frequency Range: Up to 625 MHz
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +70°C
- Cable/Connector Retention: 15 lbs.
- Connector/Hardware Retention: 20 lbs.
- Dielectric Strength: 1,000 V RMS @ 60Hz for 1 min
- Current Rating: 1.3A
- Insulation Resistance: 500 M-Ohm minimum
- Max Contact Resistance: 20 m-Ohm
- Flame Rating: UL94V-0
- Compliance: IEEE 802.3at, RoHS, UL, IEC 60603-7
Buy the Buy Belden 10GX Shielded Modular Jack Part Number RVAIJ2SMEB24 Online
Purchase the Belden Shielded Modular Jack RVAIJ2SMEB24 online today to ensure your high-speed networking systems are reliable, shielded, and capable of supporting up to 10GBASE-T. This robust modular connector features a durable zinc alloy body with gold-plated contacts for excellent conductivity, compatible with T568A/B wiring schemes, and supports Power over Ethernet standards up to 100W. Its design ensures excellent insertion loss performance, high mechanical strength, and temperature resilience from -40°C to +70°C, making it ideal for data centers, industrial, and professional networking environments. Order now for fast shipping and dependable performance.
Order your Belden SeriesRVAIJ2SMEB24 high-speed shielded modular jack today and secure reliable, high-performance network connections in demanding environments.
Frequently Asked Questions
Where can I buy BELDEN RVAIJ2SMEB24?
You can click on the BUY or RFQ button to purchase RVAIJ2SMEB24 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RVAIJ2SMEB24?
You can download the RVAIJ2SMEB24 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RVAIJ2SMEB24?
BELDEN
