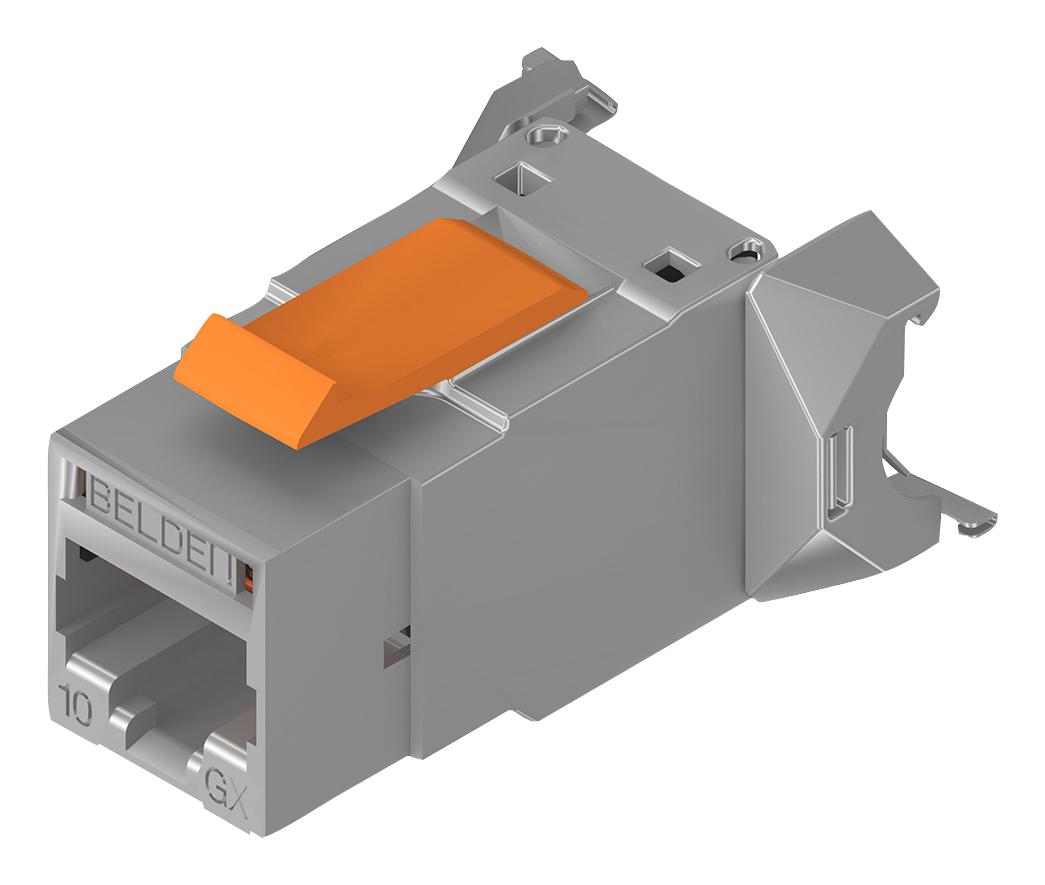

BELDEN RVAIJ2SMES1 Shielded Ethernet Jack
The REVConnect 10GX Shielded Modular Jack offers reliable, high-speed Ethernet connectivity suitable for Shielded 10GBASE-T networks. Made from durable metal, it features T568A/B wiring schemes and compatible RJ45 and RJ11 connectors. Designed for industrial environments, this jack supports IEEE 802.3at type 1 and 2 Power Over Ethernet and complies with UL standards. It has a compact footprint, with an easy termination process using dedicated tools, and provides optimal electrical performance with low insertion loss and excellent insulation resistance. Ideal for high-bandwidth, shielded networking applications requiring robust, standards-compliant connections.
BELDEN RVAIJ2SMES1 Shielded Ethernet Jack Specifications:
- Material: Copper clad flexible PCB, nickel plated zinc alloy diecast, copper alloy, gold plated contacts
- Size: Compact footprint designed for industrial applications
- Wiring Scheme: T568A/B
- Retention Force: Cable/Connector 15 Ibs, Hardware 20 Ibs, Plug 11.250 Ibs
- Temperature Range: Storage and operating -40°C to +70°C
- Electrical Resistance: Max contact resistance 20 m-Ohm, Insulation resistance 500 M-Ohm
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.3A, Flame rating UL94V-0, UL rated, IEC 60603-7
- Standards: TIA 568.C.2, ISO/IEC 11801:2002 Ed.2, UL, FCC Part 68
- Compliance: RoHS compliant, CE listed, cULus Listed for safety
- Transmission Characteristics: Suitable for high-frequency data transmission with low insertion loss
Buy the Belden Series 10GX Shielded Ethernet Connector: RVAIJ2SME-S1
Enhance your industrial networking setup with the Belden Shielded Ethernet Jack. Designed for high-speed, shielded 10GBASE-T applications, it offers durability, easy installation, and compliance with industry standards. Whether upgrading existing infrastructure or building new high-performance networks, this rugged modular jack ensures reliable data transmission with minimal loss. Compatible with T568A/B wiring schemes and rated UL94V-0, it supports Power Over Ethernet and features low insertion loss for optimal performance. Purchase online now to secure a dependable and compliant connection for your high-bandwidth needs.
Order your Belden Series 10GX Shielded Ethernet Jack today and ensure your high-speed industrial network connection is reliable and compliant with industry standards.
Frequently Asked Questions
Where can I buy BELDEN RVAIJ2SMES1?
You can click on the BUY or RFQ button to purchase RVAIJ2SMES1 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RVAIJ2SMES1?
You can download the RVAIJ2SMES1 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RVAIJ2SMES1?
BELDEN
