BELDEN RVAIP2SMES1 Shielded Ethernet Connector
The industrial REVConnect 10GX shielded plug is a metal, field-mountable RJ45 connector designed for high-speed Ethernet applications. Made with durable zinc alloy body, gold-plated contacts over palladium/nickel, and ethylene propylene front connection, it supports T568A/B wiring schemes. Suitable for Category 6A networks, it withstands temperatures from -40°C to +70°C, and features UL94V-0 flame rating and CE compliance. It provides reliable connections for 10GBASE-T and Power over Ethernet (PoE), with quick installation using RVUTTO1 tool and individual packaging for easy handling.
BELDEN RVAIP2SMES1 Shielded Ethernet Connector Specifications:
- Material: Zinc alloy diecast body, gold-plated contacts over Palladium/Nickel, ethylene propylene front connection
- Temperature Range: -40°C to +70°C operating, storage, and installation temperatures
- Flame Rating: UL94V-0
- Insulation Resistance: 500 M-Ohm minimum
- Max Contact Resistance: 20 m-Ohm
- Current Rating: 1.5 A
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Wire Retention: 15 lbs., connector retention: 20 lbs., plug retention: 11.250 lbs.
- Dimensions: Standard RJ45 compatible footprint, measures approximately 20 mm x 25 mm
- Compliance: UL, RoHS, IEC 60603-7, FCC
- Standards: TIA 568.C.2, ISO/IEC 11801:2002, IEEE 802.3at/PoE
- Packaging: Individually packaged

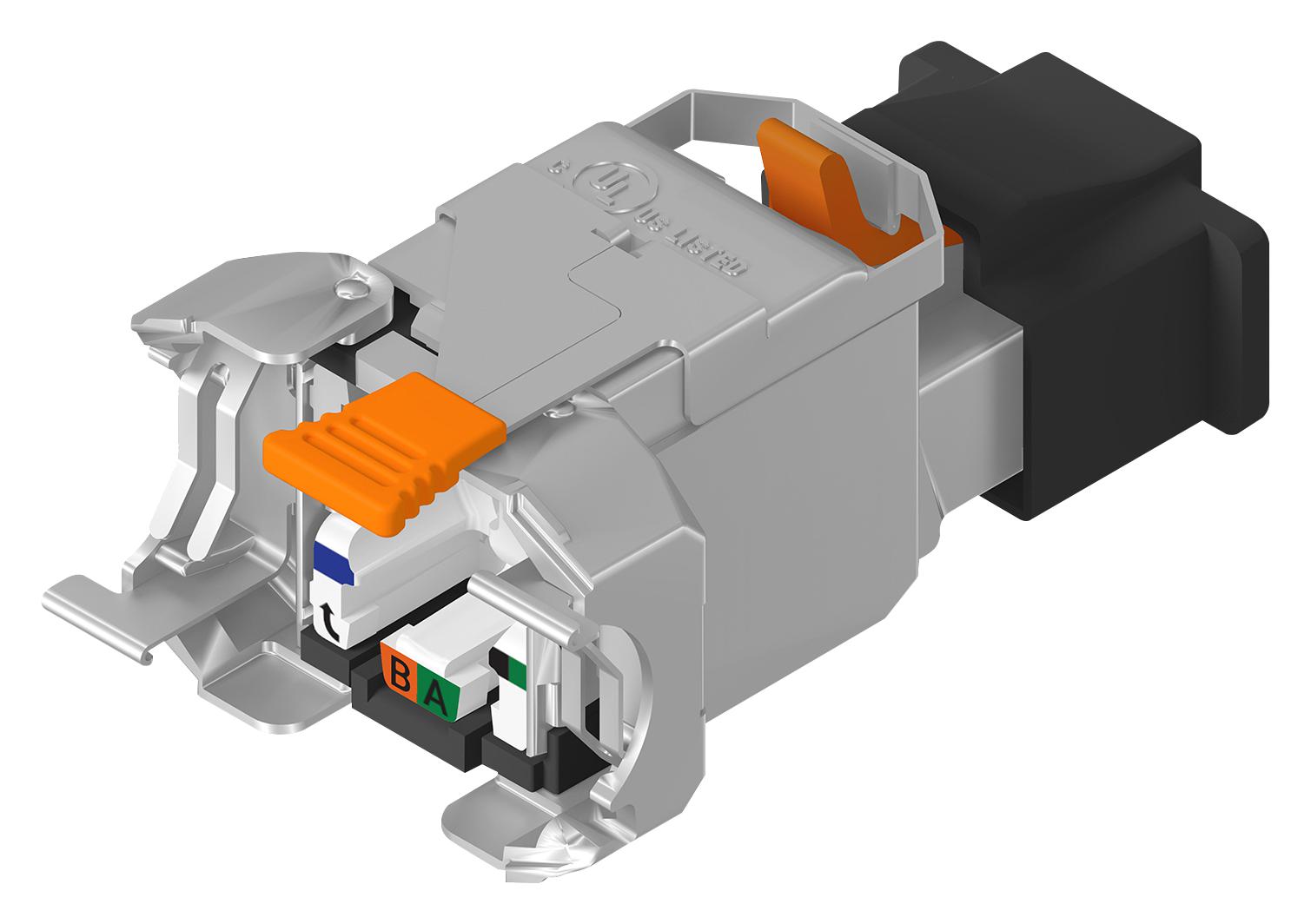

Buy the Belden Series Industrial REVConnect Shielded Plug: RVAIP2SME-S1
Enhance your network reliability with the Belden Series industrial REVConnect shielded Ethernet connector. This rugged RJ45 plug supports 10GBASE-T, PoE, and Category 6A standards, making it ideal for industrial and high-speed data applications. With its durable zinc alloy body, gold-plated contacts, and UL94V-0 flame rating, it ensures safe, long-lasting connections. Easy to install with the RVUTTO1 tool, each connector is individually packaged for convenience and security. Order online now and upgrade your network infrastructure effortlessly.
Order your Belden Series industrial REVConnect Shielded Plug today and ensure reliable high-speed Ethernet connections for demanding environments.
Frequently Asked Questions
Where can I buy BELDEN RVAIP2SMES1?
You can click on the BUY or RFQ button to purchase RVAIP2SMES1 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RVAIP2SMES1?
You can download the RVAIP2SMES1 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RVAIP2SMES1?
BELDEN
