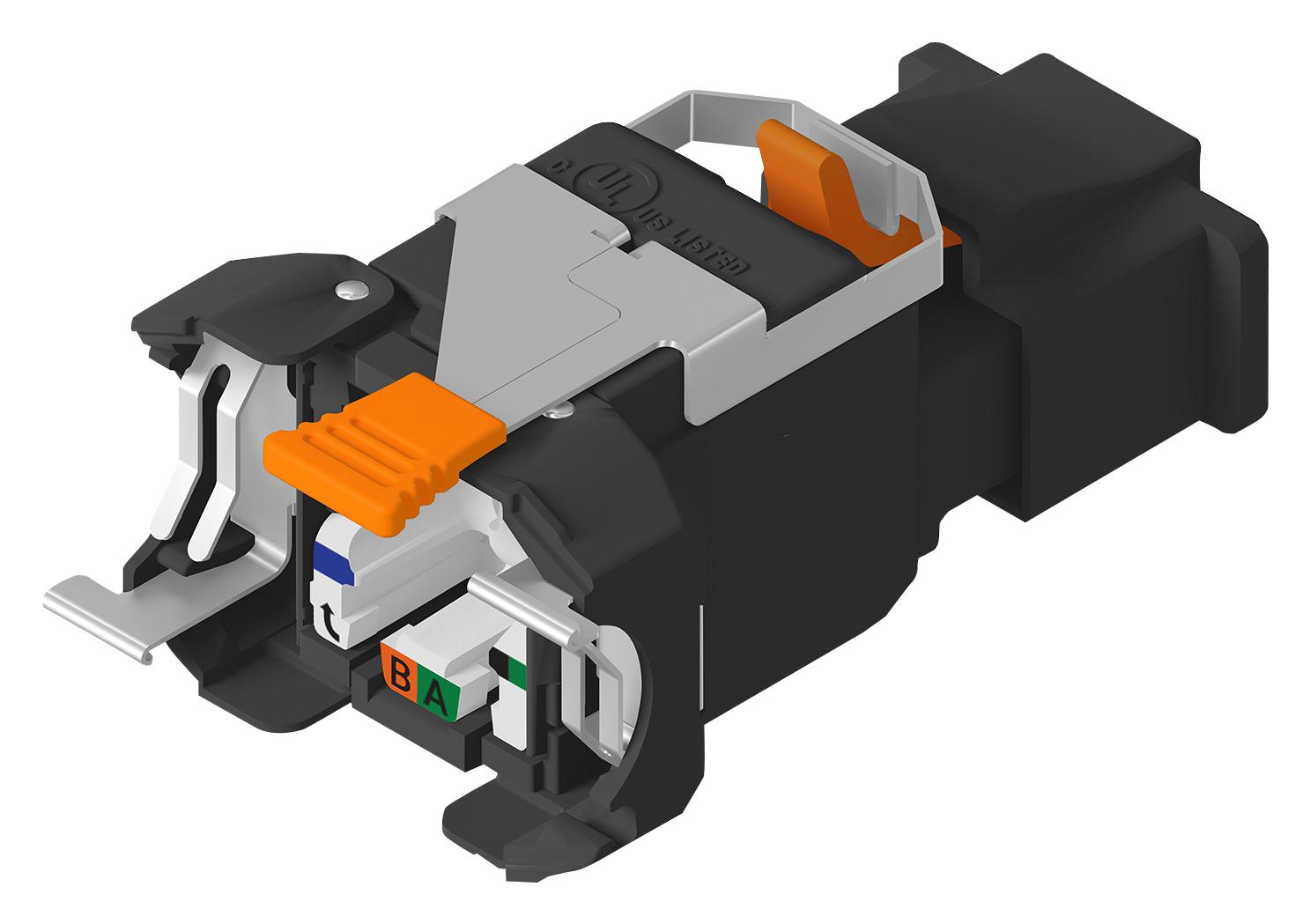

BELDEN RVAIP2UBKS1 Industrial Ethernet Plug
Industrial REVConnect 10GX UTP field mount plug designed for high-speed data transmission applications such as 10GBASE-T, compliant with category 6A standards. Constructed from UL94V-0 polycarbonate, the connector features gold-plated contacts over palladium/nickel for excellent connectivity and corrosion resistance. It supports T568A/B wiring schemes, with a lightweight design weighing merely 0.016 lbs. The plug is suitable for indoor environments, offering reliable performance with a retention force of 20 lbs. Compatible with REVConnect termination tools, it ensures quick and secure connections for industrial networking setups.
BELDEN RVAIP2UBKS1 Industrial Ethernet Plug Specifications:
- Material: UL94V-0 Polycarbonate
- Contact Material: Gold-plated over Palladium/Nickel
- Wiring Scheme: T568A/B
- Weight: 0.016 lbs
- Rated Voltage: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.500 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max. Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
- Operating Temperature Range: -40°C to +70°C
- UL Rating: UL94V-0
- Compliance: RoHS, UL, IEC 60603-7, FCC
- Dimensions: Compatible with RJ45 connectors, footprint supports easy mounting
- Flame Test: UL2043 for Air Handling Spaces
- Cable/Connector Retention: 20 lbs
- Connector Body: NA Polycarbonate - UL94V-0
Buy the Buy Belden Modular Connectors Part Number RVAIP2UBKS1 Online
Purchase Belden’s industrial Ethernet plug now and enjoy reliable, high-speed data transmission supporting 10GBASE-T. Designed with UL94V-0 polycarbonate and gold-plated contacts, it ensures durability and corrosion resistance in demanding environments. Compatible with REVConnect tools, this plug features easy installation, secure retention force of 20 lbs, and complies with industry standards including TIA 568C.2 and RoHS. Perfect for industrial Ethernet and high-speed networking projects, buy online for quick delivery and dependable connectivity for professional networking systems.
Get Belden RVAIP2UBKS1 today—engineered for industrial networking with high-speed data transmission and durable connections.
