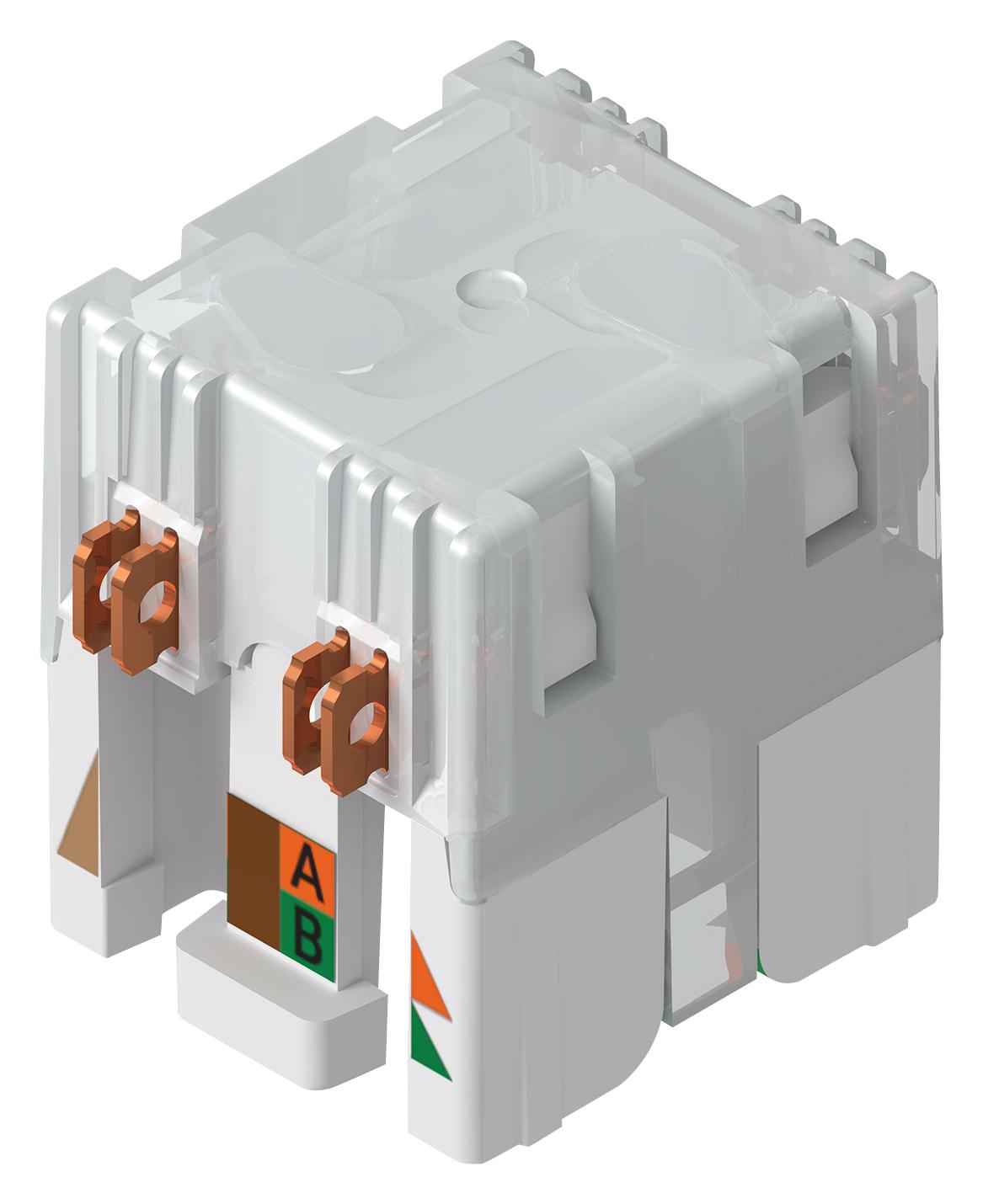

BELDEN RVUIO0UEWB50 Industrial RJ45 Connector
The DataTuff Industrial REVConnect RJ45 Core is a universal, indoor-use connector compatible with solid and stranded 23 to 24 AWG cables, supporting up to TIA Category 6A and ISO Class EA 10GBASE-T standards. Designed for reliable network connections, it features gold-plated contacts over nickel, with durable PBT body and UL-rated insulation. It withstands temperatures from -40°C to +70°C, with dielectric strength of 1,000V RMS, and supports PoE power delivery. Its robust construction ensures long-term performance with maximum contact resistance of 20mOhm and insulation resistance exceeding 500 M-Ohm, suitable for industrial and data communication environments.
BELDEN RVUIO0UEWB50 Industrial RJ45 Connector Specifications:
- Environmental Space: Indoor
- Supported Standards: TIA Category 6A, ISO Class EA, 10GBASE-T
- Physical Dimensions: Height 0.58 in., Width 0.46 in., Depth 0.56 in.
- Material: PBT connector body, gold-plated contacts over nickel
- Electrical Characteristics: Dielectric Strength 1000V RMS, Current Rating 1.5A, Insulation Resistance 500 M-Ohm minimum, Max Contact Resistance 20mOhm, Termination Resistance 2.5mOhm
- Operating Temperature Range: -40°C to +70°C
- UL Rating: UL 94V-0, UL 1863
- Telecom Standards: Up to Category 6A, TIA 568.C.2, ISO/IEC 11801:2002 Ed.2
- PoE Support: IEEE 802.3at, IEEE 802.3bt, up to 100W
- Physical Connectivity: Mated connection, durability of 200 cycles, retention forces: cable 25 lbs., connector 20 lbs., plug 11.250 lbs.
- Connectors: Front connection with 10uin gold-plated contacts, compatible with solid and stranded 23-24 AWG cables
- Packaging: 50 units per plastic bag
- Compliance: RoHS, China RoHS, UL, FCC part 68-F
Buy the Belden RVUIOUEWB50 – Reliable Industrial Ethernet for Data Transmission
Enhance your industrial network with the Belden RVUIOUEWB50 RJ45 connector, designed for reliable data and power transmission in harsh environments. This high-quality connector supports Category 6A standards, PoE up to 100W, and features durable gold-plated contacts. Compatible with solid and stranded cables, it is easy to install and ensures long-lasting performance. Perfect for industrial Ethernet setups, data centers, and communication infrastructures. Order online today and benefit from fast delivery, superior quality, and technical support to optimize your network systems.
Order your Belden Series RVUIOUEWB50 industrial RJ45 connecter today and ensure your network's robustness and performance in demanding environments.
