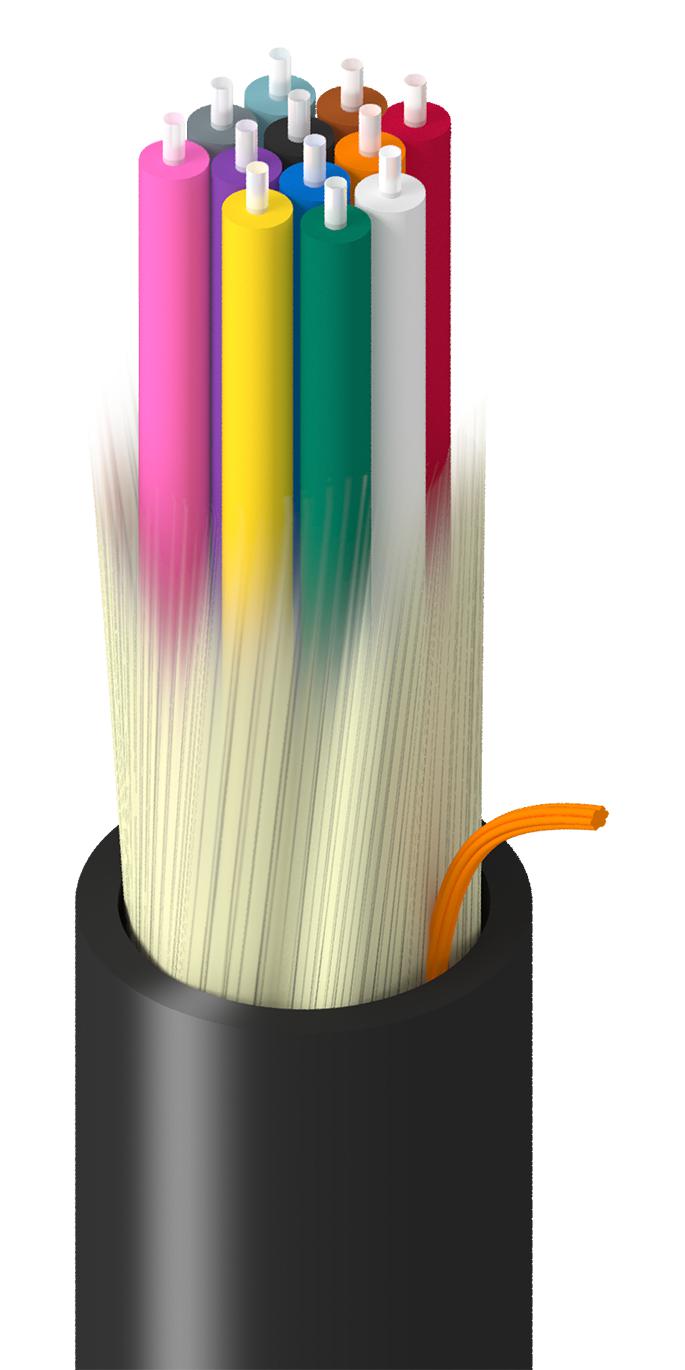

BELDEN TF1D9012RN5N Fiber Distribution Cable
This fiber distribution cable designed for indoor and outdoor use features 12 optimized fibers with a 625um core diameter, housed within a PVC jacket resistant to UV, ozone, and oil. Its rugged construction includes aramid strength members for enhanced tensile strength, suitable for extended distance horizontal and backbone data networks. It supports high-performance Ethernet over 300 meters at 1Gb and 33 meters at 10Gb speeds, with excellent bend radius tolerances and temperature resilience for challenging environments, ensuring reliable signal transmission in noisy, wet, or outdoor locations.
BELDEN TF1D9012RN5N Fiber Distribution Cable Specifications:
- Fiber Type: omt
- Fiber Core Diameter: 625 um
- Fiber Diameter: 250 um
- Buffer Material: PVC - Polyvinyl Chloride
- Buffer Diameter: 200 um
- Fiber Count: 2
- Fiber Color Coding: TIA598-D
- Strength Member: Waterblocking Aramid Yams
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Diameter: 0.260 in (6.6 mm)
- Max. Attenuation: 3.25dB/km, 1.0 dB/km
- Ethernet Performance: 300 m at 1Gb, 550 m at 1Gb, 33 m at 10Gb
- Minimum Restricted Launch Bandwidth: 220 MHz•km
- Minimum Overfilled Launch (OFL) Bandwidth: 200 MHz•km to 500 MHz•km
- Minimum Bend Radius During Installation: 15x cable OD
- Minimum Bend Radius During Operation: 10x cable OD
- Max. Tensile Strength During Installation: 1335 N (300 lb)
- Max. Tensile Strength During Operation: 400 N (90 lb)
- Crush Resistance: 220 N
- Cable Weight: 27 lbs/kt (40 kg/km)
- Installation Temp Range: 10°C to +60°C
- Operating Temp Range: -40°C to +70°C
- Storage Temp Range: -40°C to +70°C
Buy the BELDEN TF-1D9-012-RN5 – Reliable Fiber Distribution Cable for Industrial Applications
Order BELDEN TF-1D9-012-RN5 fiber distribution cable online today and ensure dependable data transmission for your indoor and outdoor network needs. This high-performance cable features 12 fibers with a PVC jacket resistant to UV, ozone, and oil, ideal for extended distance applications. Its rugged construction includes aramid strength members for durability, supporting Ethernet speeds up to 1Gb for 300 meters and 10Gb for 33 meters. Suitable for noisy, wet, or outdoor environments, it guarantees reliable connectivity across diverse conditions.
Buy BELDEN TF-1D9-012-RN5 fiber distribution cable now and experience unmatched reliability and performance in challenging environments.
Frequently Asked Questions
Where can I buy BELDEN TF1D9012RN5N?
You can click on the BUY or RFQ button to purchase TF1D9012RN5N from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part TF1D9012RN5N?
You can download the TF1D9012RN5N datasheet or visit the BELDEN website for support.
Who is the manufacturer of TF1D9012RN5N?
BELDEN
