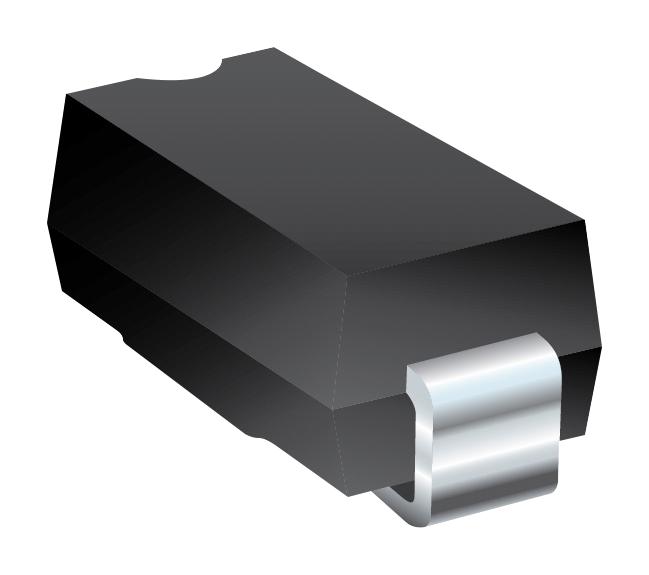

Bourns 15SMC36CAQ Transient Voltage Suppressor Diode
Bourns 1.5SMC Transient Voltage Suppressor Diodes are specifically engineered to safeguard sensitive electronic components from voltage surges and electrostatic discharge (ESD) events. These diodes, packaged in a compact DO-214AB (SMC) size format, are ideal for portable communications, computing, and video equipment applications. The series provides a range of breakdown voltages from 6.8V to 550V, ensuring versatility in circuit protection. With fast response times, these diodes effectively clamp voltage spikes, preventing damage to downstream components. Bourns Chip Diodes conform to JEDEC standards and are designed for easy handling in automated assembly processes.
Bourns 15SMC36CAQ Transient Voltage Suppressor Diode Specifications:
- Minimum Peak Pulse Power Dissipation (TP = 1 ms): 1500 Watts
- Peak Forward Surge Current (8.3 ms Single Half Sine Wave): 200 Amps
- Maximum Instantaneous Forward Voltage (IPP= 100 A): 3.5-5.0 Volts
- Operating Temperature Range: -55 to +150 °C
- Storage Temperature Range: -55 to +150 °C
- Breakdown Voltage (VBR) Min: 6.45 Volts
- Breakdown Voltage (VBR) Max: 7.14 Volts
- Typical Temperature Coefficient: 0.1 % x VBR @ 25 °C x ∆T
- Breakdown Voltage (VBR) @ IT (mA): 10 mA
- Working Peak Reverse Voltage: 5.8 Volts
- Maximum Reverse Leakage @ VRWM: 1000 μA
- Maximum Reverse Voltage @ IRSM: 10.5 Volts
- Maximum Reverse Surge Current: 144.8 Amps
Buy the 1.5SMC36CA-Q Bourns Transient Voltage Suppressor Diode | myMectronic
Securely purchase the Bourns 1.5SMC36CA-Q Transient Voltage Suppressor Diode online for reliable circuit protection.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 15SMC36CAQ?
You can click on the BUY or RFQ button to purchase 15SMC36CAQ from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 15SMC36CAQ?
You can download the 15SMC36CAQ datasheet or visit the Bourns website for support.
Who is the manufacturer of 15SMC36CAQ?
Bourns
