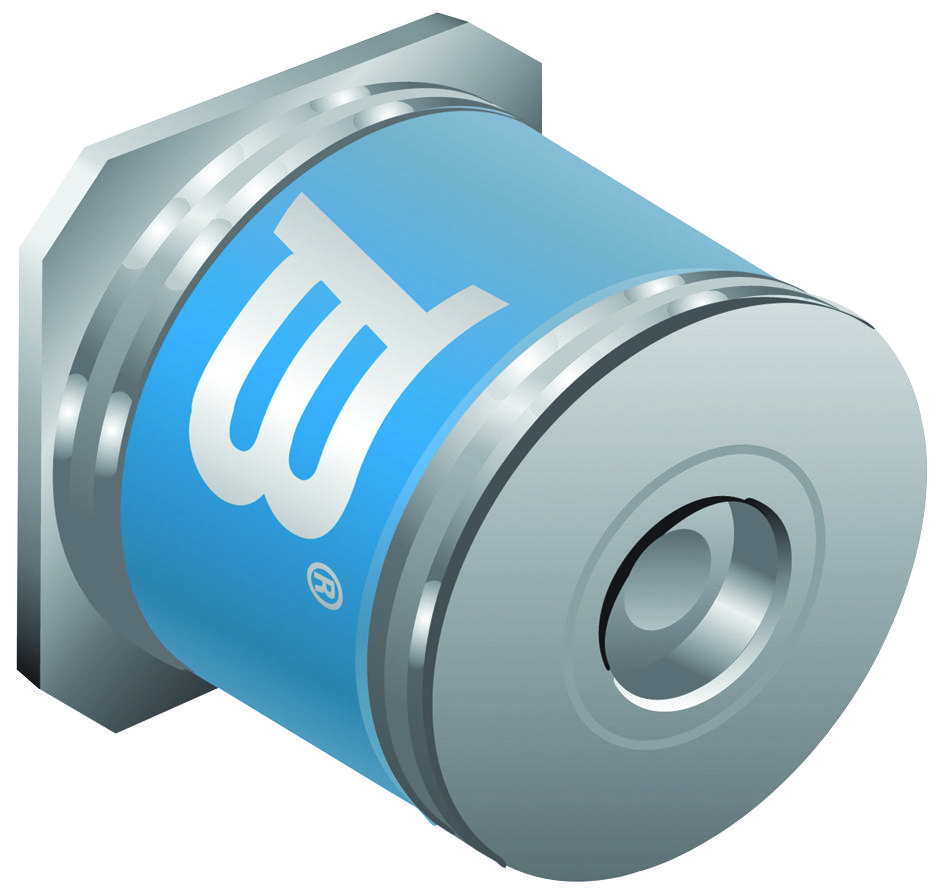

Bourns 202707SMRPLF Precision Gas Discharge Tube Surge Protector
Bourns offers the 2027-07-SM-RPLF, an 8 x 6 mm surface mount 2-electrode GDT surge protection device. This device features surface mount design for economical assembly, high surge current rating, low capacitance, and stable breakdown throughout its life. It is compatible with pick and place assembly systems and ideal for PCBs in telecommunications, commercial, and industrial applications. The 2027-SM series is UL Recognized and provides robust surge protection for sensitive electronic circuits.
Bourns 202707SMRPLF Precision Gas Discharge Tube Surge Protector Specifications:
- DC Sparkover: 75 V
- Impulse Sparkover: 300 V
- Insulation Resistance: >10Ω
- Glow Voltage: ~70 V
- Arc Voltage: ~10 V
- Glow-Arc Transition Current: < 0.5 A
- Capacitance: < 1 pF
- DC Holdover Voltage: 135 V
- Impulse Discharge Current: 25000 A
- Alternating Discharge Current: 65 Arms
- Operating Temperature: -55 to +125 °C
- Climatic Category: 40/90/21
Buy the 2027-07-SM-RPLF BOURNS Precision Gas Discharge Tube Surge Protector | myMectronic
Securely purchase the Bourns 2027-07-SM-RPLF surge protector and ensure reliable protection for your electronics.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 202707SMRPLF?
You can click on the BUY or RFQ button to purchase 202707SMRPLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 202707SMRPLF?
You can download the 202707SMRPLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 202707SMRPLF?
Bourns
