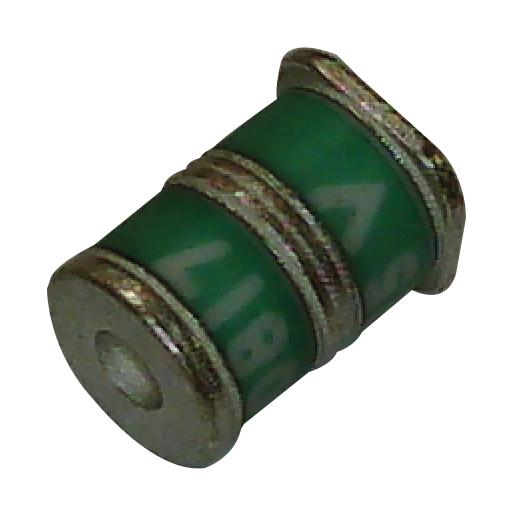

Bourns 203607SMRPLF Precision Gas Discharge Tube Surge Protector
The Bourns 2036-xx-SM Precision Gas Discharge Tube Surge Protector is a surface mount (SM) 3-electrode GDT designed to protect high-bandwidth circuits like xDSL, cable broadband, and high-speed Ethernet. This device offers industry-leading quality with a balanced Mini-TRIGARD™ series design, ensuring stable breakdown and long life. It acts as a 'crowbar,' creating a short-to-ground circuit when a voltage transient surge exceeds the breakdown voltage, preventing damage to sensitive components. Available in various voltage ratings, the 2036-SM series is ideal for pick-and-place manufacturing techniques and offers a compact form factor.
Bourns 203607SMRPLF Precision Gas Discharge Tube Surge Protector Specifications:
- balanced_mini_trigard_series: 5 mm diameter, 7.3 mm length
- dc_sparkover_voltage: 75 V ±20 % @ 100 V/s (Model 2036-07)
- impulse_sparkover_voltage: 250 V @ 100 V/µs, 525 V @ 1000 V/µs (Model 2036-07)
- capacitance: < 2 pF
- dc_holdover_voltage: >135 V (Model 2036-07)
- impulse_discharge_current: 20000 A, 8/20 µs (Model 2036-07)
- alternating_discharge_current: 20 Arms, 1 s (Model 2036-07)
- storage_temperature: -55 to +105 °C
- operating_temperature: -55 to +105 °C
- rohs_compliant: Yes
- ul_recognized: UL File E153537
- packaging_bulk: 250 pieces per bag, 4 bags per box
- packaging_reelpack: 1000 pcs./reel, 330 mm diameter
Buy the 2036-07-SM-RPLF BOURNS Precision Gas Discharge Tube Surge Protector | myMectronic
Securely purchase the Bourns 2036-07-SM-RPLF and ensure reliable surge protection for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 203607SMRPLF?
You can click on the BUY or RFQ button to purchase 203607SMRPLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 203607SMRPLF?
You can download the 203607SMRPLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 203607SMRPLF?
Bourns
