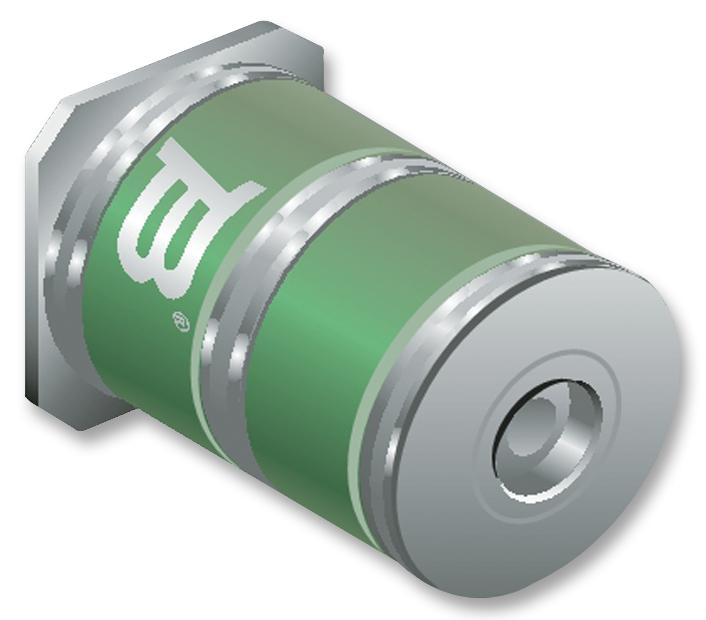

Bourns 203609SMRPLF Precision Gas Discharge Tube Surge Protector
Bourns' 2036-09-SM-RPLF is a surface mount (SM) 3-electrode Gas Discharge Tube (GDT) surge protection device designed for board-level protection of high-bandwidth applications. This device, part of the industry-leading TRIGARD™ series, utilizes a balanced Mini-TRIGARD™ design with a 5 mm diameter and 7.3 mm length. It offers high energy handling capability, long and stable life performance, and low capacitance, making it suitable for xDSL, cable broadband, and high-speed Ethernet systems. The GDT acts as a 'crowbar,' creating a short-to-ground circuit when a voltage transient surge exceeds the breakdown voltage, protecting sensitive circuits from damage.
Bourns 203609SMRPLF Precision Gas Discharge Tube Surge Protector Specifications:
- balanced_mini_trigard_series: 5 mm diameter, 7.3 mm length
- ideal_for: board level protection of broadband circuits
- surface_mount: economical assembly
- breakdown_voltage: stable throughout life
- high_surge_current_rating: low insertion loss
- rohs_compliant: version available
- dc_sparkover_voltage: 75 V (±20 % @ 100 V/s)
- impulse_sparkover_voltage: 250 V @ 100 V/µs, 525 V @ 1000 V/µs
- capacitance: < 2 pF
- dc_holdover_voltage: >135 V
- impulse_discharge_current: 20000 A @ 8/20 µs
- alternating_discharge_current: 20 Arms @ 1 s
- storage_temperature: -55 to +105 °C
- operating_temperature: -55 to +105 °C
- climatic_category: 55/105/21
- ul_recognized: UL File E153537
- packaging_bulk: 250 pieces per bag, 4 bags per box
- packaging_reelpack: 1000 pcs./reel, 330 mm diameter
