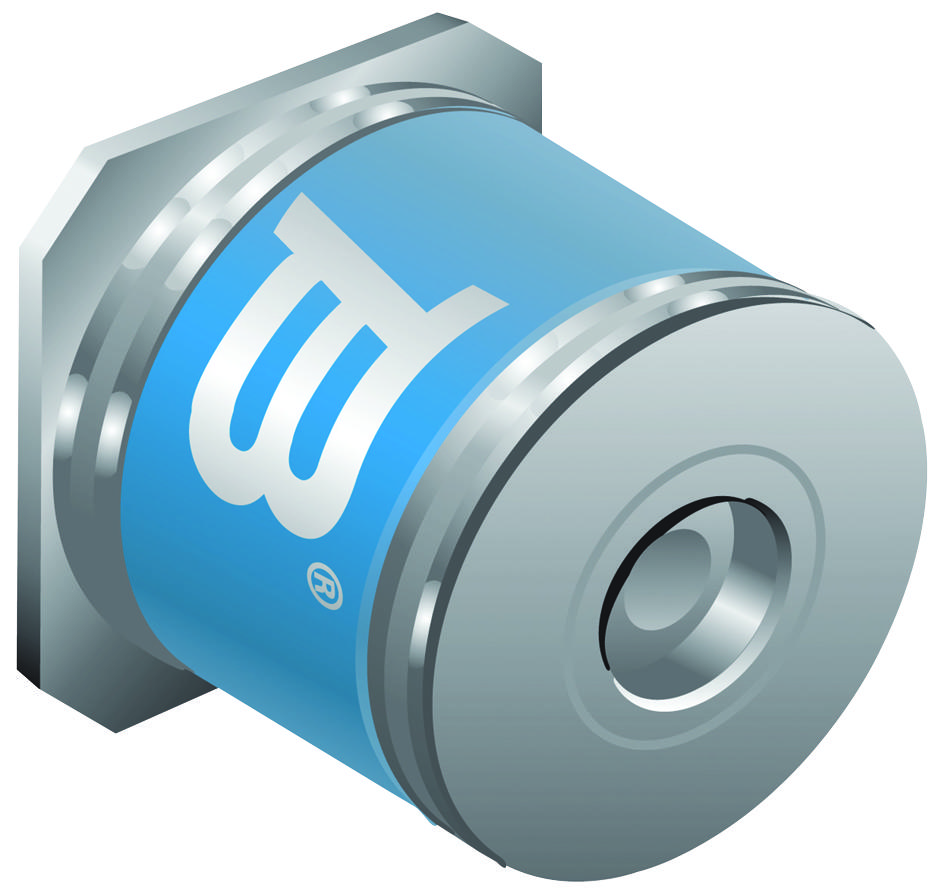

Bourns 2039110SMRPLF Precision Fast Responding GDT
The Bourns 2039-110-SM-RPLF is a precision, fast-responding, high-voltage gas discharge tube (GDT) designed for surface mount applications. This miniature GDT provides robust protection against transient voltage surges in sensitive electronic circuits, particularly in high-bandwidth systems such as xDSL, cable broadband, and high-speed Ethernet. Its low capacitance minimizes signal distortion, while its compact size allows for efficient integration into space-constrained designs. The device acts as a 'crowbar,' creating a short-to-ground circuit when a surge exceeds its breakdown voltage, preventing damage to downstream components. Bourns GDTs are known for their long and stable life performance and are UL Recognized.
Bourns 2039110SMRPLF Precision Fast Responding GDT Specifications:
- DC Sparkover Voltage: 800 V (2039-80-SM), 1100 V (2039-110-SM)
- Impulse Sparkover Voltage: 1250 V (2039-80-SM), 1500 V (2039-110-SM)
- Insulation Resistance: > 109Ω
- Arc Voltage: ~ 10 V @ 1 A
- Glow-Arc Transition Current: < 0.5 A
- Capacitance: < 1 pF @ 1 MHz
- DC Holdover Voltage: 135 V (2039-80-SM), 150 V (2039-110-SM)
- Max. Single Discharge: > 1 operation (5 kA), > 10 operations (2.5 kA, 8/20 µs)
- Alternating Discharge Current: < 10 operations (2.5 Arms, 1 s)
- Operating Temperature: -55 to +85 °C
- Climatic Category: 40/90/21
- Sparkover Limits After Life: +30/-25%
- IR: >10[8] Ω
- Packaging: Standard bulk pack (250 pieces per bag, 4 bags per box), Reelpack (-RP) (1,500 pieces per reel), Reelpack (-RP3) (1,000 pieces per reel)
Buy the 2039-110-SM-RPLF Bourns Precision Fast Responding GDT | myMectronic
Securely purchase the Bourns 2039-110-SM-RPLF GDT and ensure reliable surge protection for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 2039110SMRPLF?
You can click on the BUY or RFQ button to purchase 2039110SMRPLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 2039110SMRPLF?
You can download the 2039110SMRPLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 2039110SMRPLF?
Bourns
