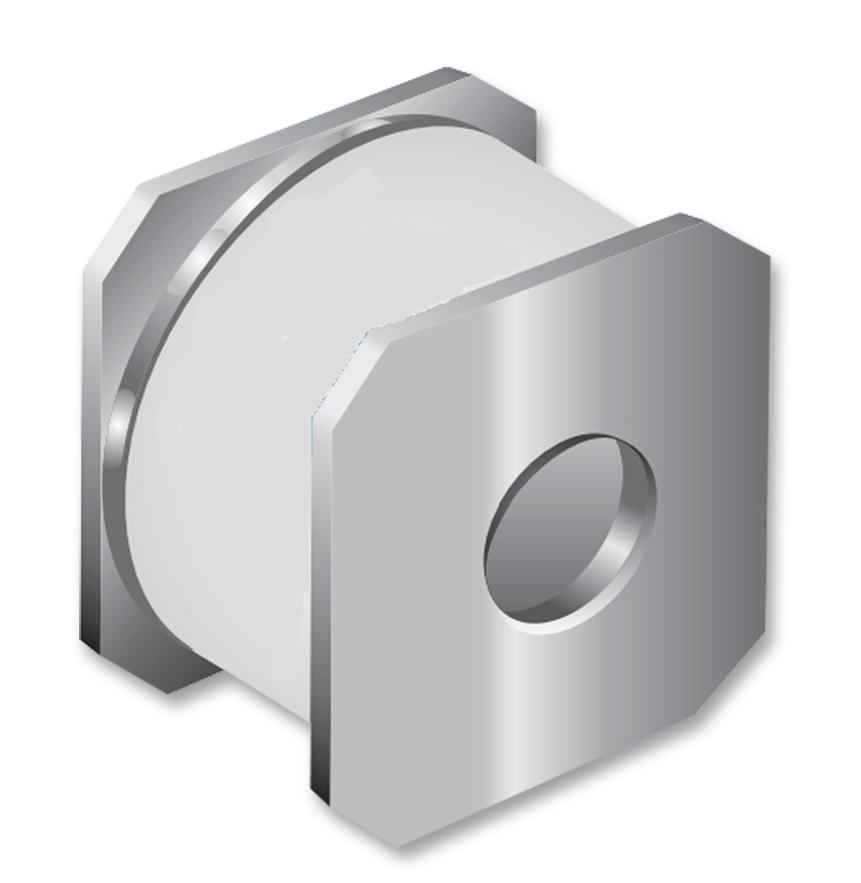

Bourns 2087120SMRPLF High Voltage Mini Surge Protector
The Bourns 2087-120-SM-RPLF is a miniature gas discharge tube (GDT) surge protector designed for applications requiring high voltage protection in a compact form factor. Its small size (4mm diameter, 4.2mm length) allows for easy integration into space-constrained designs. The device exhibits high insulation resistance and a wide operating temperature range (-30°C to +85°C), ensuring reliable performance in diverse environments. It is commonly used in industrial equipment, telecommunications electronics, consumer electronics, and surface mount applications where protection against voltage transients is critical. The 2087 series is RoHS compliant and UL Recognized, meeting industry standards for safety and environmental responsibility.
Bourns 2087120SMRPLF High Voltage Mini Surge Protector Specifications:
- DC Sparkover Voltage: 1200 V
- Impulse Sparkover Voltage: < 1600 V
- Insulation Resistance: > 1 GΩ
- Glow Voltage: ~ 60 V
- Arc Voltage: ~ 15 V
- Capacitance: < 0.5 pF
- Impulse Discharge Current: 3000 A (8/20 µs)
- Alternating Discharge Current: 2 Arms (50 Hz)
- Impulse Life: > 100 operations
- Operating Temperature: -30 to +85 °C
- Storage Temperature: -40 to +115 °C
- Climatic Category: 40 / 90 / 21
- Sparkover ±20 %: @ 100 V/s
- Impulse Sparkover: 100 V/µs, 1000 V/µs
- Glow-Arc Transition Current: < 1 A
- Packaging: Reelpack (900 pcs./13 “ reel)
