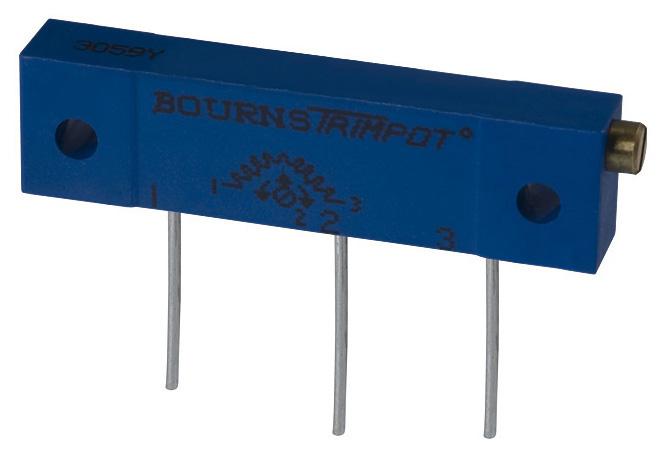

Bourns 3059L1500MLF Trimming Potentiometer
The Bourns 3059 Series Trimpot® is a versatile, sealed, perpendicular multiturn trimming potentiometer suitable for panel mount applications. It features a 1-1/4 inch rectangular form factor with resistance ranges from 10 ohms up to 2 megaohms, offering tight tolerance options and a resistance variation of only 1.0% or 1 ohm max. Its rugged construction includes solderable printed circuit pins, and it complies with RoHS standards. The device's environmental durability includes high resistance to vibration, shock, humidity, and temperature extremes, making it ideal for precision adjustment in industrial and electronic systems.
Bourns 3059L1500MLF Trimming Potentiometer Specifications:
- Resistance Range: 10 to 2 megaohms
- Resistance Tolerance: ±10%, tighter tolerances available
- Resistance Variation: 1.0% or 1 ohm max.
- Power Rating: 1.0 watt at 70°C, 0.5 watt at 150°C
- Temperature Range: -55°C to +150°C
- Temperature Coefficient: +100 ppm/°C
- Dielectric Strength: 6,000 V
- Insulation Resistance: >4000 megaohms
- Environmental Durability: MIL-STD-202 Method 106 humidity, shock 50 G, vibration 20 G
- Mechanical: Wiper with 200 cycles rotational life, maximum torque 0 oz-in.
- Physical: Rectangular form factor, terminals for soldering, weight approximately 0.1 oz.
- RoHS compliant version available, with optional panel mount and factory-installed wiring
Buy the Bourns Series 3059 Trimpot: 3059L1500MLF
Purchase the Bourns Series 3059 Trimming Potentiometer online today for reliable, precise resistance adjustment in industrial and electronic systems. This sealed multiturn potentiometer offers resistance ranges up to 2 megaohms with tight tolerances and high environmental durability. Its rugged design includes solderable terminals, compliance with RoHS standards, and a compact rectangular form factor suitable for panel mount applications. Whether for fine calibration, testing, or control in demanding conditions, the 3059 Series ensures accurate performance and long-term reliability, making it a smart choice for engineers and technicians.
Order your Bourns Series 3059 Trimpot 3059L1500MLF today and give your precision adjustment projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Bourns 3059L1500MLF?
You can click on the BUY or RFQ button to purchase 3059L1500MLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3059L1500MLF?
You can download the 3059L1500MLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3059L1500MLF?
Bourns
