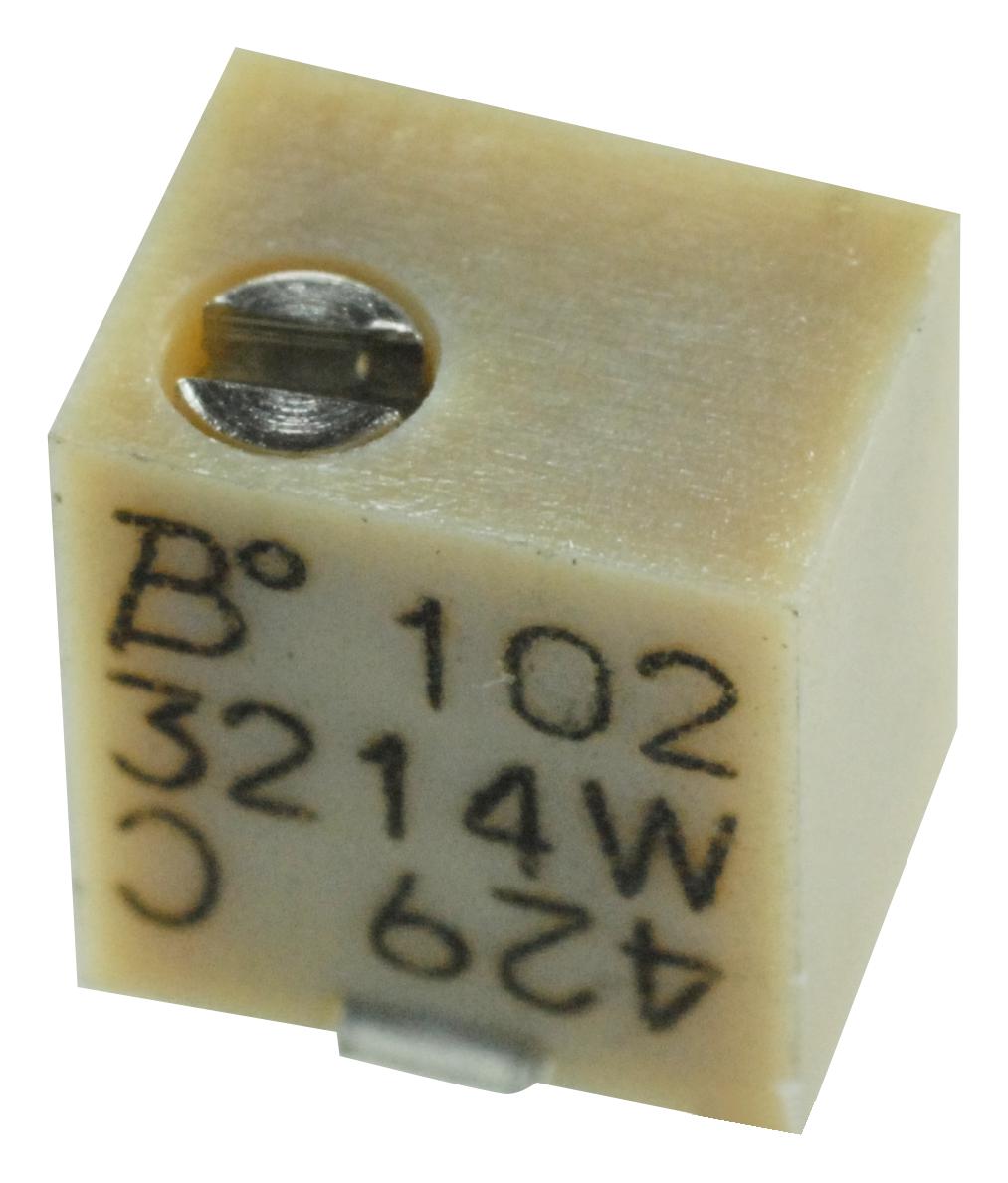

Bourns 3214W1102E Trimming Potentiometer
The Bourns Trimpot 3214 series are compact, surface-mount cermet potentiometers designed for precise circuit calibration in electronic devices. With a robust sealed construction, they withstand harsh manufacturing processes such as board wash. Available in side or top adjustment options, these 4mm square components conform to industry standard footprints, ensuring compatibility with automated assembly. They feature a resistance range from 10 ohms to 2 megaohms with ±10% tolerance, a temperature coefficient of ±100 ppm/°C, and operate from -65°C to +150°C. Rated for 0.25W, they provide reliable, repeatable adjustments over a rotational life of 200 cycles across 5 turns, with easy pick-and-place centering and flush adjustment for efficient manufacturing.
Bourns 3214W1102E Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2,000,000 ohms
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100 ppm/°C
- Operating Temperature: -65°C to +150°C
- Power Rating: 0.25W
- Size: 4mm square (standard footprint)
- Adjustment: Side or top adjustment options
- Sealed to withstand board wash processes
- Rotational Life: 200 cycles over 5 turns
- Material: Cermet
- Compliance: EIA/EIAJ/IPC/VECI standards
- Maximum Torque: 180 g-cm
- Weight: Approximately 0.01 oz
- Flammability: UL94VO
- Vibration & Shock Resistance: 20 GTRS+1%, 100 GTRS+1%
- Humidity & Environmental Standards: MIL-STD 202 Method 106
- Marking: Resistance code, manufacturer code, date code
Buy the Bourns 3214U202 – Reliable Trimming Potentiometer for Industrial Applications
Enhance your electronic device calibration with the Bourns Trimming Potentiometer from the 3214 series. This surface-mount, sealed cermet component is engineered for precision adjustments in industrial and electronic applications. Featuring a resistance range from 10 ohms to 2 megaohms, tolerances of ±10%, and a temperature coefficient of ±100 ppm/°C, it offers reliable performance over a wide temperature span. Easy to mount, with a standard 4 mm size, and resistant to harsh manufacturing processes, it ensures long-lasting, accurate adjustments for professional electronic systems.
Get Bourns 3214U202 today—built for precision, durability, and seamless electronic circuit calibration.
