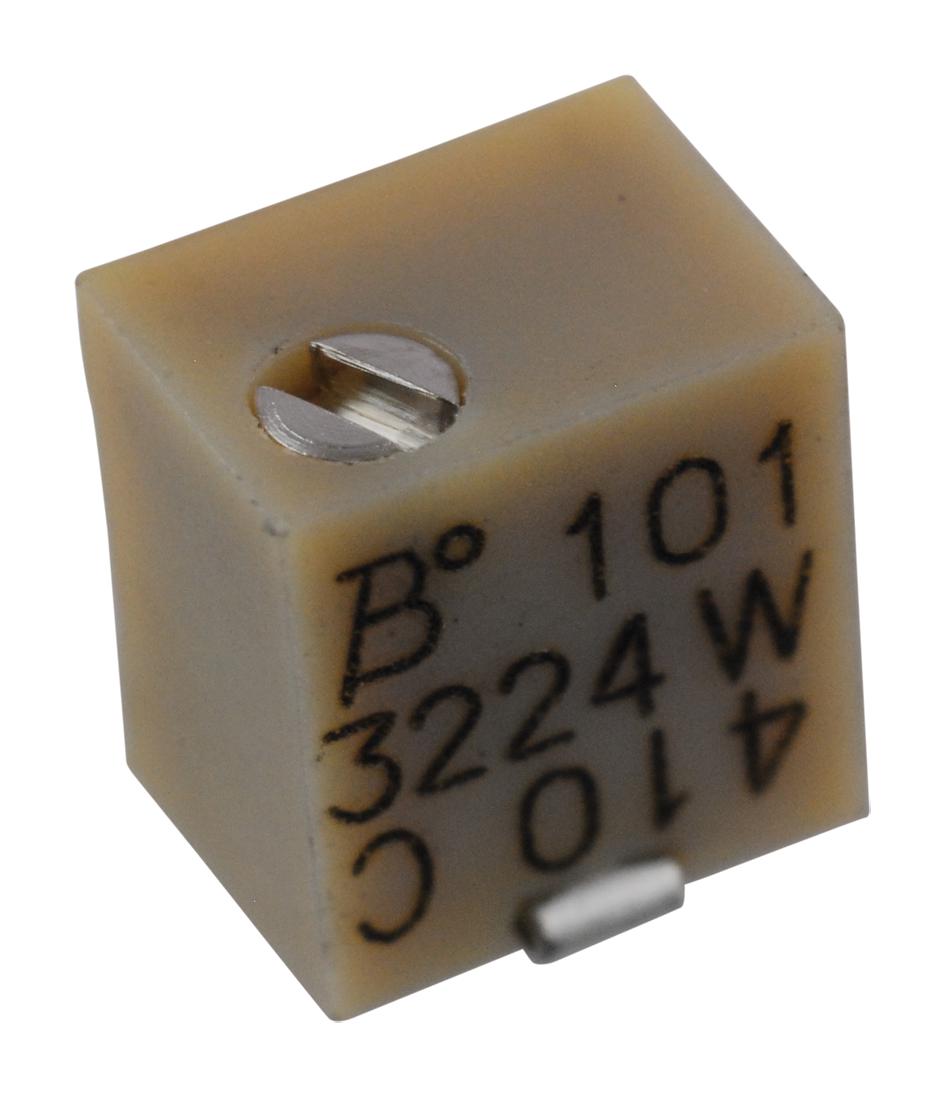

Bourns 3224W1103E 4mm SMD Trimming Potentiometer
The Bourns 3224W-1-103E is a 4mm surface mount trimming potentiometer designed for industrial applications. This multiturn potentiometer offers a compact footprint, low CRV, and sealed construction for reliable performance in various environments. It is halogen-free, RoHS compliant, and features a pick-and-place centering design for easy integration into automated assembly processes. The potentiometer is suitable for trimmer applications and offers a wide resistance range and high resolution.
Bourns 3224W1103E 4mm SMD Trimming Potentiometer Specifications:
- Standard Resistance Range: 10 to 2 megohm
- Resistance Tolerance: ±10 %
- Absolute Min. Resistance: 1 % or 2.0 ohms
- Contact Resistance Variation: 1 % or 3 ohms max.
- Insulation Resistance: 100 megohms min.
- Resolution: Essentially Infinite
- Adjustment Angle: 12 turns nom.
- Power Rating: 0.25 watt
- Temperature Range: -65 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert /60 seconds
- Humidity: MIL-STD 202 Method 106V
- Vibration: 20 G TRS±1 %; VRS ±1 %TRS ±2 %; IR 10 megohms
- Shock: 100 G TRS ±1 %; VRS±1 %
- Load Life: @ 85 °C rated power 1,000 hours
- Moisture Sensitivity Level: N/A
- ESD Classification: 2
- Mechanical Stop: Wiper idles
- TorqueWeight: Approximately 0.01 oz.
- Marking: Manufacturer’s code, resistance code and date code
- Solderability: Per MIL-STD-202, Method 208
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: UL94V0
