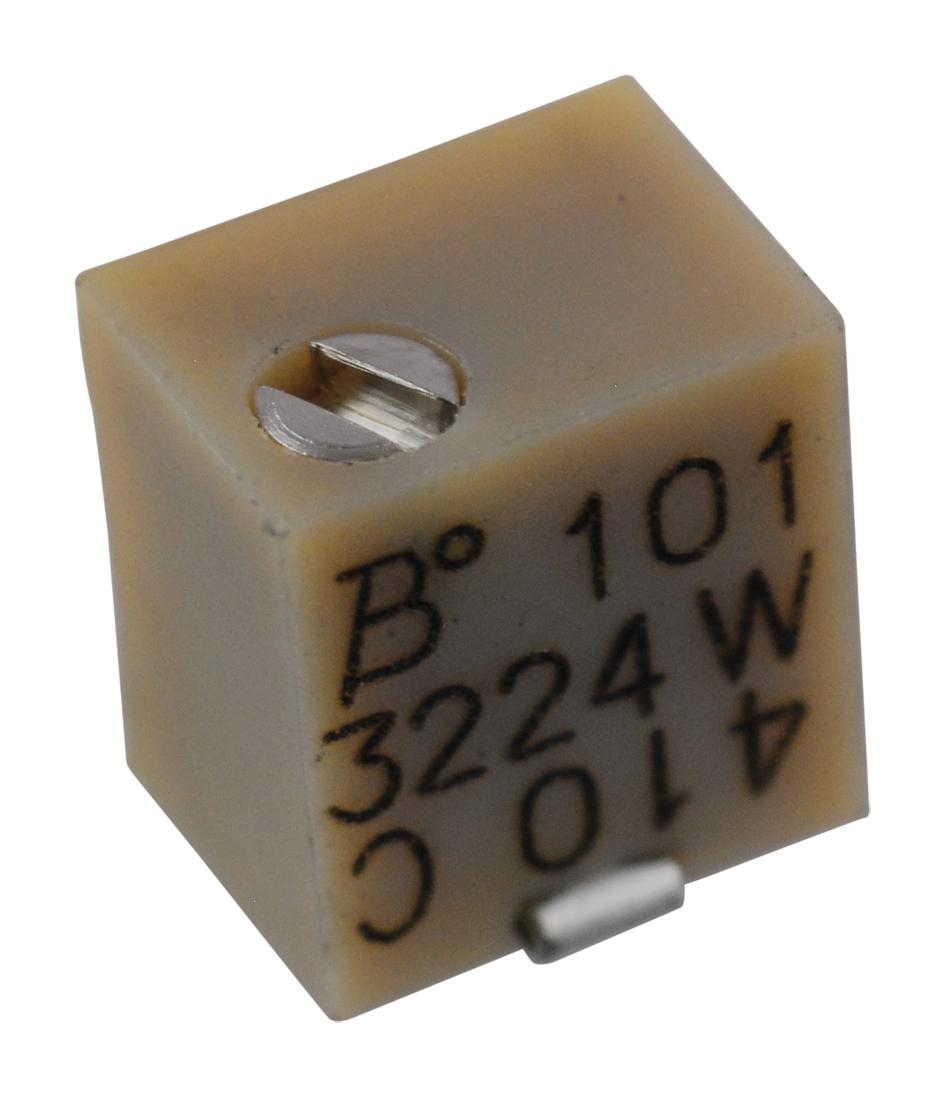

Bourns 3224W1104E 4mm SMD Trimming Potentiometer
The Bourns 3224W-1-104E is a compact, surface mount trimming potentiometer designed for a wide range of industrial applications. Its 4mm square footprint aligns with industry standards, ensuring compatibility with various SMD assembly processes. The multiturn design provides precise adjustment capabilities, while the sealed construction enhances reliability in harsh environments. This potentiometer is halogen-free, RoHS compliant, and features a low CRV, making it a sustainable and high-performance choice for circuit trimming and calibration.
Bourns 3224W1104E 4mm SMD Trimming Potentiometer Specifications:
- Standard Resistance Range: 10 to 2 megohm
- Resistance Tolerance: ±10 %
- Absolute Min. Resistance: 1 % or 2.0 ohms
- Contact Resistance Variation: 1 % or 3 ohms max.
- Insulation Resistance: 100 megohms min.
- Resolution: Essentially Infinite
- Adjustment Angle: 12 turns nom.
- Power Rating: 0.25 watt
- Temperature Range: -65 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert /60 seconds
- Humidity: MIL-STD 202 Method 106V
- Shock: 100 G
- Load Life: @ 85 °C rated power 1,000 hours
- Moisture Sensitivity Level: N/A
- ESD Classification: 2
- Mechanical Stop: Wiper idles
- TorqueWeight: Approximately 0.01 oz.
- Marking: Manufacturer’s code, resistance code and date code
- Solderability: Per MIL-STD-202, Method 208
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: UL94V0
Buy the 3224W-1-104E BOURNS 4mm SMD Trimming Potentiometer | myMectronic
Securely purchase the Bourns 3224W-1-104E 4mm SMD Trimming Potentiometer online for reliable component sourcing.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3224W1104E?
You can click on the BUY or RFQ button to purchase 3224W1104E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224W1104E?
You can download the 3224W1104E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224W1104E?
Bourns
