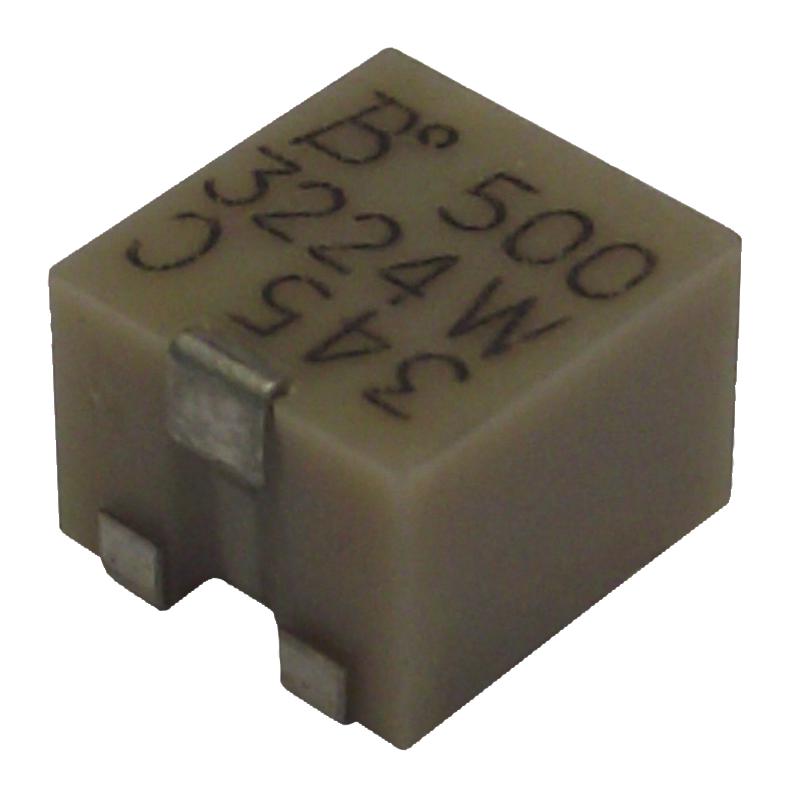

Bourns 3224W1205E Surface-mount trimmer potentiometer
The 3224W1205E is a 4 mm surface-mount trimmer potentiometer designed for precision adjustable resistance applications in industrial and electronic circuits. With a sealed, halogen-free construction compliant with RoHS standards, it features side and top adjustment styles, a resistance range from 1.10 ohms to 2 megohms, and a power rating of 300 volts at 85°C. Its compact design includes stainless steel shafts, high insulation resistance, and mechanical stops for reliable performance over thermal cycling and rotational stress. Ideal for tight PCB integration, the trimmer's specifications ensure durability and accurate adjustment in demanding environments.
Bourns 3224W1205E Surface-mount trimmer potentiometer Specifications:
- Resistance Range: 1.10 to 2 megohms
- Resistance Tolerance: ±1% or ±3 ohms maximum
- Power Rating: 300 volts at 85°C
- Temperature Range: -55°C to +150°C
- Resistance Code: 3224J, 3224W1205E
- Dimensions: 4 mm square surface-mount footprint
- Adjustment: Side and top adjustments, 12 turns nominal
- Insulation Resistance: 400 megohms minimum at 500 VDC
- Operating Environment: RoHS compliant, halogen-free, sealed to withstand board wash
- Construction: Stainless steel shaft, sealed enclosure, safety compliant
- Package Type: Reel with 600 to 1500 pcs depending on style, RoHS compliant
- Compliance: RoHS 2002/95/EC, UL94V0 flame retardant
- Mechanical Features: Mechanical stops, flush mount design
- Application: Precision trimming, calibration, electronic adjustments in industrial, automation, and control systems
Buy the Buy Bourns 3224W1205E Part Number 3224W1205E Online
Enhance your electronic projects and industrial systems with the Bourns 3224W1205E surface-mount trimmer potentiometer. Designed for precise resistance adjustments in compact spaces, this sealed, RoHS-compliant component offers resistance from 1.10 ohms to 2 megohms, with high insulation resistance and reliable mechanical stops. Its stainless steel shaft and durability make it suitable for demanding environments, ensuring accurate calibration and long-term performance. Purchase online today for fast delivery and seamless integration into your electronic assemblies.
Get Bourns 3224W1205E today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy Bourns 3224W1205E?
You can click on the BUY or RFQ button to purchase 3224W1205E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224W1205E?
You can download the 3224W1205E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224W1205E?
Bourns
