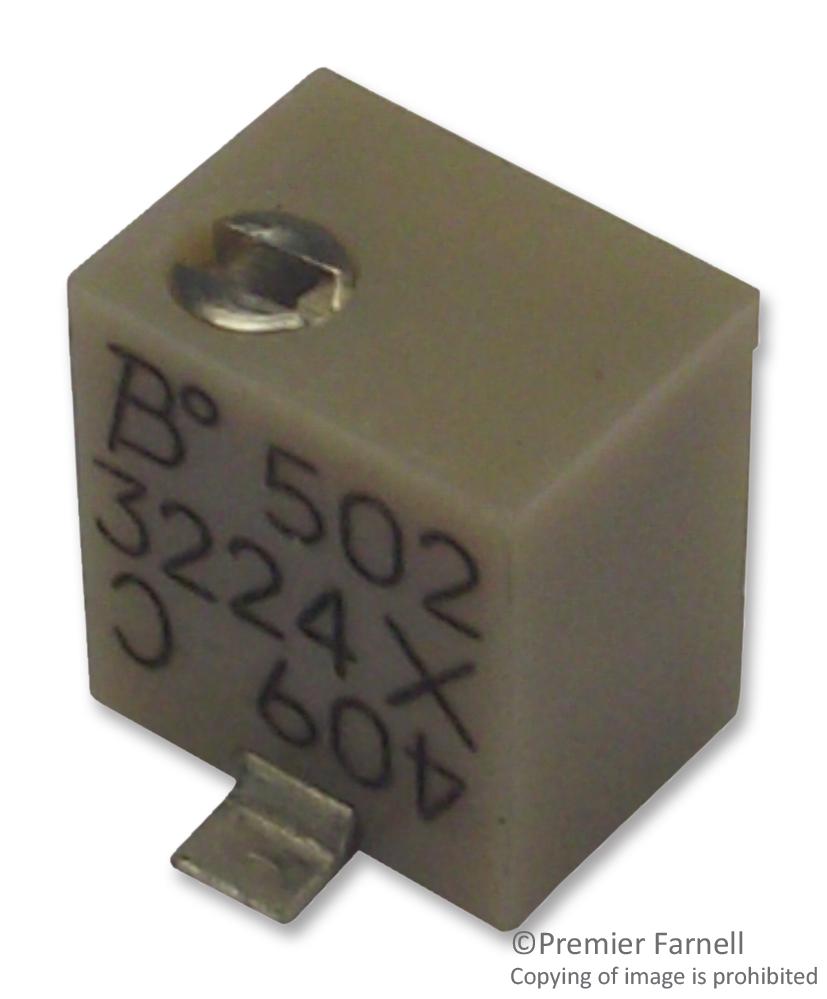

Bourns 3224X1502E Precision Trimmer
This 4 mm surface-mount trimmer potentiometer is ideal for precision adjustment in industrial and electronic applications. Features include sealed construction for durability, RoHS compliance, halogen-free design, and a low contact resistance variation of 3 ohms or 3%. It offers high temperature tolerance up to +150°C, an infinite resolution, and multiple adjustment styles like top and side. Its robust specifications make it suitable for PCB assembly, calibration, and fine-tuning in various electronic systems, ensuring reliable performance over a wide range of environmental conditions.
Bourns 3224X1502E Precision Trimmer Specifications:
- Resistance Range: 1.10 to 2 megohm
- Resistance Tolerance: ±2%, ±3 ohms max.
- Power Rating: 300 volts max, 85°C
- Temperature Range: -55°C to +150°C
- Temperature Coefficient: 100 ppm/°C
- Resistance Variation: 3 ohms or 3%
- Insulation Resistance: 400 megohms min at 500 Vdc
- Adjustment: 12 turns nominal, top and side adjustment styles
- Physical Dimensions: 4 mm square, with various reel and tape packaging
- Environmental: RoHS compliant, halogen-free, meets EIA standards
- Marking: Manufacturer’s code, resistance code, date code
- Mechanical: Approximate weight 0.01 oz, sealed construction to withstand wash cycles
- Compatibility: Surface mount, pick and place centering design, flush mount trimmers
- Packaging: Reels of 1500, 1000, 850, or 600 pieces, with embossed tape designators
Buy the Bourns 3224X1502E – Reliable Precision Trimmer for Industrial Applications
Enhance your electronic calibration and adjustment processes with the Bourns 3224X1502E. This high-quality surface-mount trimmer features sealed construction, RoHS compliance, and a robust design suitable for industrial environments. With a resistance range from 1.10 ohms to 2 megaohms, it provides excellent stability and precision at voltages up to 300 V and temperatures reaching +150°C. Easy to mount, adjust, and integrate, it ensures consistent, reliable performance for PCB calibration, fine-tuning, and automated assembly. Order online now for fast delivery and competitive pricing.
Buy Bourns 3224X1502E now and experience unmatched reliability and performance in high-precision adjustment tasks.
Frequently Asked Questions
Where can I buy Bourns 3224X1502E?
You can click on the BUY or RFQ button to purchase 3224X1502E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224X1502E?
You can download the 3224X1502E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224X1502E?
Bourns
