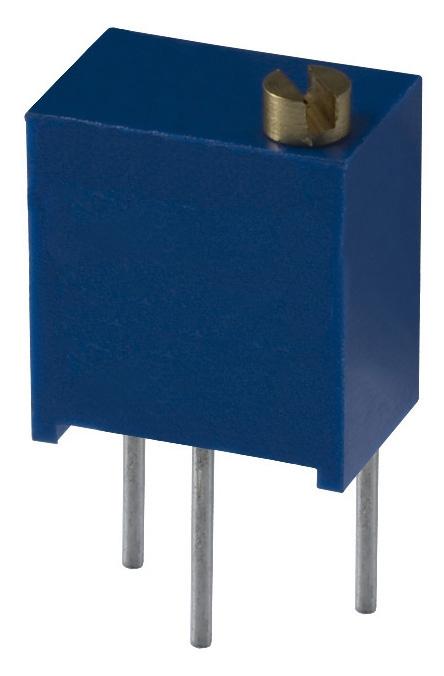

Bourns 3262W1103LF 1/4" Trimming Potentiometer
The Bourns 3262W-1-103LF is a precision trimming potentiometer designed for a wide range of industrial applications. This multiturn potentiometer offers high resolution and stability, making it ideal for applications requiring fine adjustments. It features a cermet resistive element, a sealed construction for environmental protection, and is RoHS compliant. The potentiometer is available with various resistance values and termination options to meet specific design requirements. Its robust design and reliable performance make it a suitable choice for demanding applications.
Bourns 3262W1103LF 1/4" Trimming Potentiometer Specifications:
- Resistance Range: 10 to 1 megohm
- Resistance Tolerance: ±10 % std.
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 3.0 % or 3 ohms max.
- Adjustability: Infinite
- Insulation Resistance: 1,000 megohms min.
- Dielectric Strength: 600 vac (Sea Level), 250 vac (80,000 Feet)
- Effective Travel: 12 turns nom.
- Power Rating: 0.25 watt (85 °C), 0.1 watt (150 °C)
- Temperature Range: -65 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Vibration: 30 G (1 % ΔTR; 1 % ΔVR)
- Shock: 100 G (1 % ΔTR; 1 % ΔDVR)
- Load Life: 1,000 hours (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Rotational Life: 200 cycles (2 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Torque: 3.0 oz-in. max.
- Mechanical Stops: Wiper idles
- Terminals: Solderable pins
- Weight: 0.015 oz.
- Marking: Manufacturer’s trademark, date code, manufacturer’s model resistance code, wiring diagram, date code, manufacturer’s model resistance code, wiring diagram, number and style
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: U.L. 94V-0
- Standard Packaging: 50 pcs. per tube
- Adjustment Tool: H-90
Buy the 3262W-1-103LF BOURNS 1/4" Trimming Potentiometer | myMectronic
Securely purchase the Bourns 3262W-1-103LF trimming potentiometer online for reliable component procurement.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3262W1103LF?
You can click on the BUY or RFQ button to purchase 3262W1103LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3262W1103LF?
You can download the 3262W1103LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3262W1103LF?
Bourns
