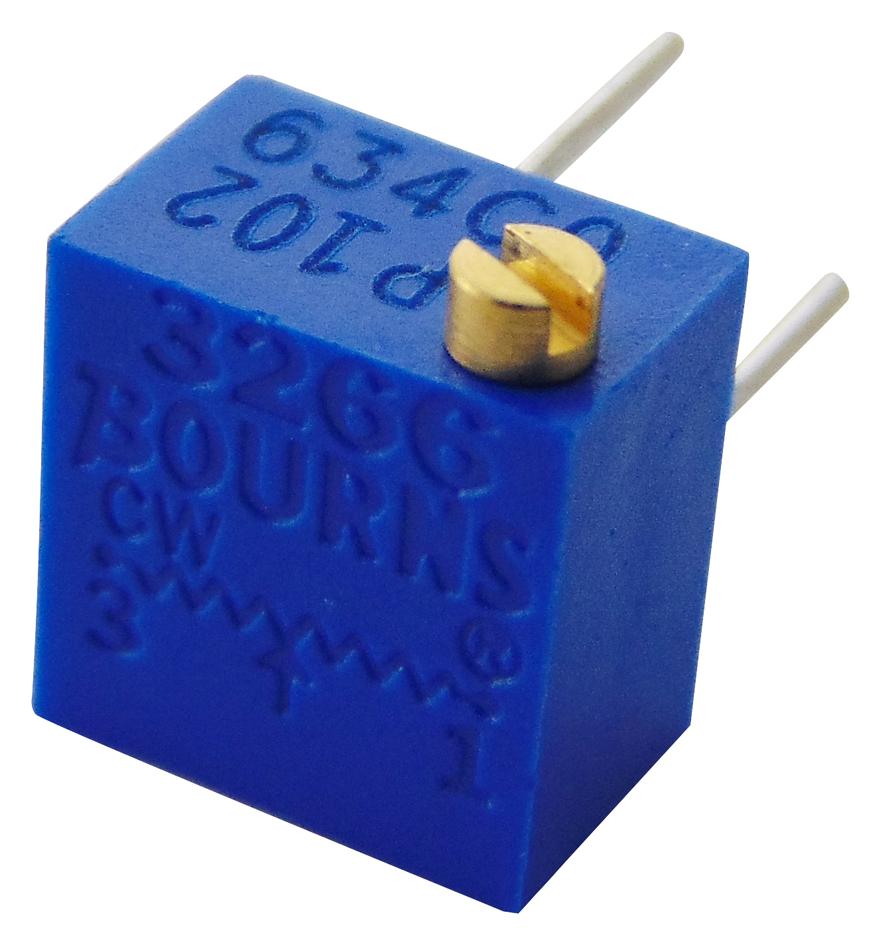

Bourns 3266P1102LF Square Trimmer Potentiometer
The 3266P1102LF is a square, multiturn trimmer potentiometer designed for precision circuitry and industrial applications. It features a sealed construction with solderable pins, RoHS compliance, and a wide resistance range up to 250,000 ohms. This adjustable device offers an resistance tolerance of ±10%, with a maximum resistance of 1 megaohm. Suitable for calibration, tuning, and adjustment in electronic systems, it boasts high reliability with long mechanical and rotational life, making it ideal for demanding environments such as aerospace, automation, and instrumentation. Its dimensions conform to industry standards, with easy PCB integration.
Bourns 3266P1102LF Square Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: ±10%
- Maximum Resistance: 1,000,000 ohms
- Adjustability: Fine tuning with 12 turns nominal
- Power Rating: 0.25 watt at 70°C, 0 watt at 150°C
- Temperature Range: -55°C to +125°C
- Resistance Variation: 3.0% or 3 ohms max
- Insulation Resistance: 1000 megohms min at 500 VDC
- Dielectric Strength: 80,000 feet at sea level
- Mechanical Stops: Wiper idles
- Physical Dimensions: 127.2 x 38 x 13 mm (approximate for model)
- Terminals: Solderable pins, in-line
- Flammability: UL 94V-0
- Sealing: Fluorinert test at 85°C
- Vibration & Shock Resistance: 30 G and 100 G respectively
- Rotational Life: 200 cycles
- Environmental Resistance: MIL-STD-202 Method 103, 96 hours humidity test
Buy the BOURNS 3266P1102LF – Reliable Trimmer for Industrial Applications
Order the Bourns 3266P1102LF today for high-precision calibration needs. This sealed, multiturn trimmer offers adjustable resistance up to 250k ohms. Its rugged design ensures reliable performance in industrial and electronic systems, providing fine-tuning with 12 turns and a durability of 200 rotational cycles. The device's RoHS compliance and adherence to industry standards make it suitable for demanding environments. Quick online purchase ensures your projects stay on schedule, with precise control and dependable operation in calibration, automation, and instrumentation applications.
Get BOURNS 3266P1102LF today—built for precision and long-lasting durability in calibration and adjustment tasks.
Frequently Asked Questions
Where can I buy Bourns 3266P1102LF?
You can click on the BUY or RFQ button to purchase 3266P1102LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3266P1102LF?
You can download the 3266P1102LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3266P1102LF?
Bourns
