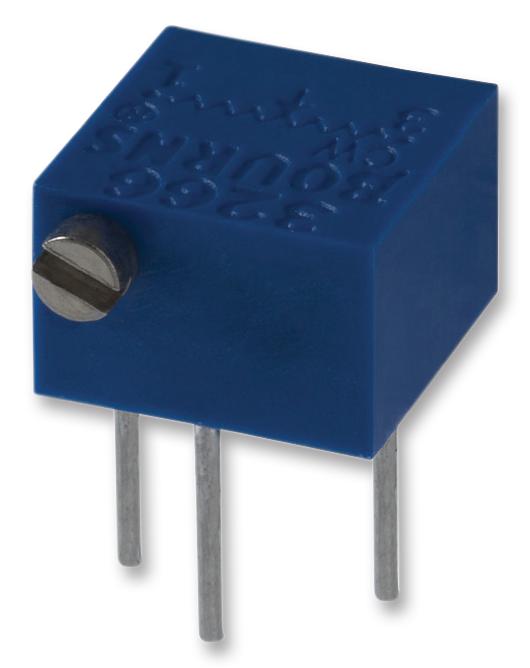

Bourns 3266P1502LF Square Trimmer Potentiometer
The 3266P1502LF is a square, multiturn, cermet trimmer potentiometer designed for precise adjustment in electronic circuits. It features a resistance range from 10 ohms to 1 megohm with a resistances tolerance of ±10%. Suitable for industrial applications, it offers stable electrical characteristics, including a low contact resistance variation, high insulation resistance of 1,000 megohms, and a voltage rating up to 600 vac. Its durable construction includes solderable pins, a sealed body for environmental resilience, and RoHS compliance, making it ideal for calibration, tuning, and control systems requiring reliable performance and easy installation.
Bourns 3266P1502LF Square Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: ±10%
- Contact Resistance Variation: 3.0% or 3 ohms max
- Insulation Resistance: 1,000 megohms min at 500 VDC
- Voltage Rating: 600 vac
- Power Rating: 0.25 watt at 70°C
- Temperature Range: -55°C to +125°C
- Mechanical Stops: Wiper idles
- Terminals: Solderable pins
- Physical Dimensions: 127 mm square, with adjustable slot, common dimensions approximately 2.25 inches width
- Environmental Resistance: Sealed body, RoHS compliant, Fluorinert tested
- Durability: 200 rotational cycles, 1,000 hours load life at 70°C
- Compliance: UL94V-0 flammability, RoHS
- Packaging: 50 pcs. per tube, tapereel options available
Buy the Bourns 3266P1502LF – Reliable Trimming Potentiometer for Industrial Applications
Enhance your electronic projects with the Bourns 3266P1502LF square trimmer potentiometer, offering precise resistance adjustment from 10 ohms to 1 megohm. Its sealed, RoHS-compliant design ensures durability and environmental resistance, making it ideal for calibration, tuning, and control systems in industrial applications. With a low contact resistance variation and high insulation resistance, this potentiometer provides reliable performance over extended use. Easily install with solderable pins, and choose from tape and reel packaging for efficient manufacturing integration. Order now to secure dependable, high-quality adjustment components for your electronics.
Order your Bourns Series 3266P1502LF trimmer potentiometer today and ensure precise, dependable adjustment for your electronic control systems.
Frequently Asked Questions
Where can I buy Bourns 3266P1502LF?
You can click on the BUY or RFQ button to purchase 3266P1502LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3266P1502LF?
You can download the 3266P1502LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3266P1502LF?
Bourns
