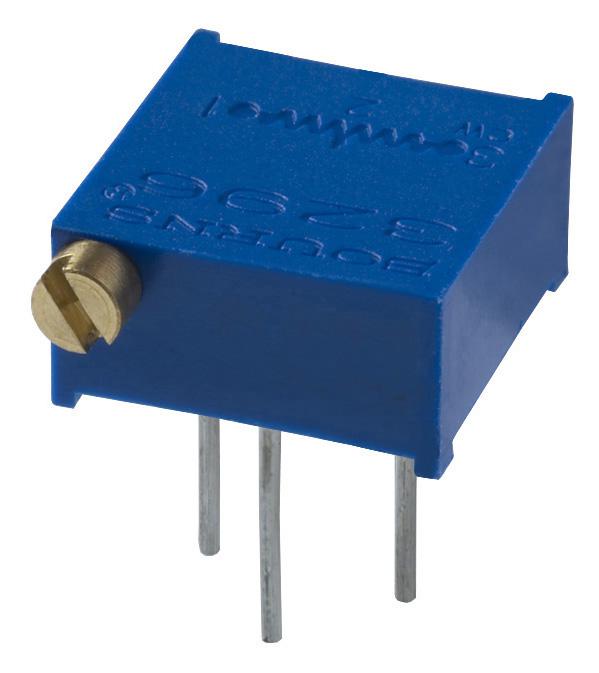

Bourns 3296P1105LF Square Trimming Potentiometer
The Bourns 3296P-1-105LF is a precision trimming potentiometer designed for industrial applications requiring fine adjustment of resistance. This multiturn potentiometer features a cermet resistive element, providing excellent stability and reliability. Its sealed construction ensures protection against environmental factors, while the RoHS compliant version caters to environmentally conscious designs. The 3296 series is commonly used in audio equipment, test and measurement instruments, and other applications where precise resistance adjustment is critical. Available with various termination options and packaging configurations, the 3296P-1-105LF offers versatility and ease of integration into diverse electronic circuits.
Bourns 3296P1105LF Square Trimming Potentiometer Specifications:
- Standard Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 %
- Absolute Minimum Resistance: 1 % or 2 ohms max.
- Contact Resistance Variation: 1.0 % or 3 ohms max.
- Adjustability Voltage: ±0.01 %
- Resolution: Infinite
- Insulation Resistance: 500 vdc. 1,000 megohms min.
- Dielectric Strength: 900 vac (Sea Level), 350 vac (70,000 Feet)
- Effective Travel: 25 turns nom.
- Power Rating: 0.5 watt (70 °C)
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert Humidity
- Vibration: 20 G (1 % ΔTR; 1 % ΔVR)
- Shock: 100 G (1 % ΔTR; 1 % ΔVR)
- Load Life: 1,000 hours 0.5 watt @ 70 °C
- Rotational Life: 200 cycles
- Torque: 3.0 oz-in. max.
- Mechanical Stops: Wiper idles
- Terminals: Solderable pins
- Weight: 0.03 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, mfr’s. model number and style
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: U.L. 94V-0
- Moisture Sensitivity Level: N/A
- ESD Classification (HBM): 2
