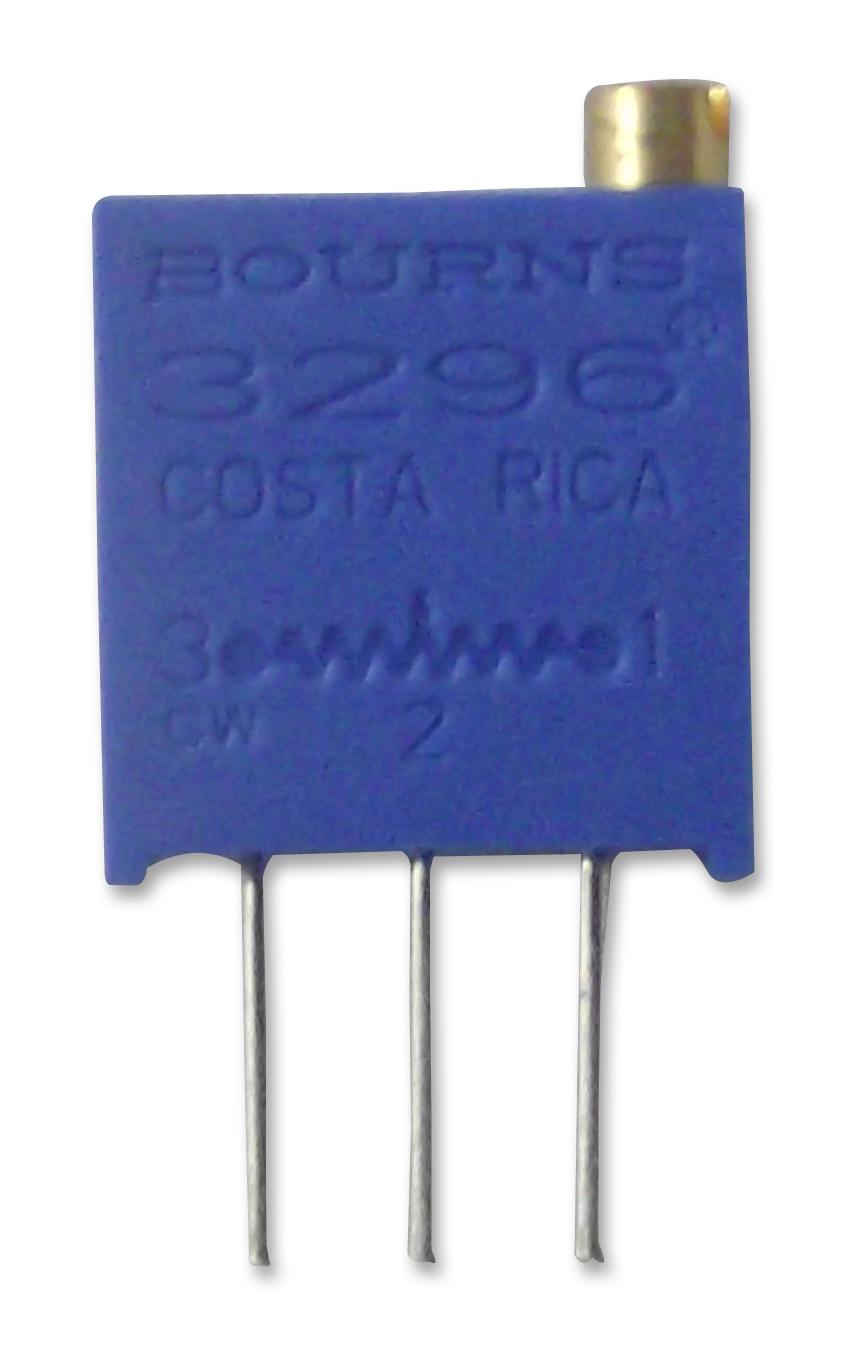

Bourns 3296W1103LF SMD Trimming Potentiometer
The Bourns 3296W-1-103LF is a precision SMD (Surface Mount Device) cermet trimmer potentiometer designed for applications requiring fine adjustments. Its stable, infinite resolution cermet element ensures accurate and repeatable settings. Available in vertical and horizontal adjust styles, this trimmer offers flexibility in design integration. The device is RoHS compliant, aligning with environmental regulations. It is commonly used in consumer electronics, industrial equipment, and other applications where precise control of resistance is critical. The compact size and surface mount capability simplify integration into modern circuit designs.
Bourns 3296W1103LF SMD Trimming Potentiometer Specifications:
- Standard Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: ±10 %
- Absolute Minimum Resistance: 1 % or 2 ohms max.
- Contact Resistance Variation: 3.0 % or 3 ohms max.
- Adjustability Voltage Divider: ±0.02 %
- Rheostat: ±0.05 %
- Resolution: Infinite
- Insulation Resistance: 500 vdc. 1,000 megohms min.
- Dielectric Strength Sea Level: 600 vac
- Dielectric Strength 80,000 Feet: 250 vac
- Effective Travel: 12 turns nom.
- Power Rating: 0.25 watt @ 85 °C
- Temperature Range: -65 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours @ 85 °C
- Rotational Life: 200 cycles
- Torque: 2.5 oz-in. max.
- Mechanical Stops: Wiper idles
- Terminals: Solderable pins
- Weight: 0.015 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, model number and style
- Adjust Tool: H-90
- Wiper: 50 % (Actual TR) ±10 %
