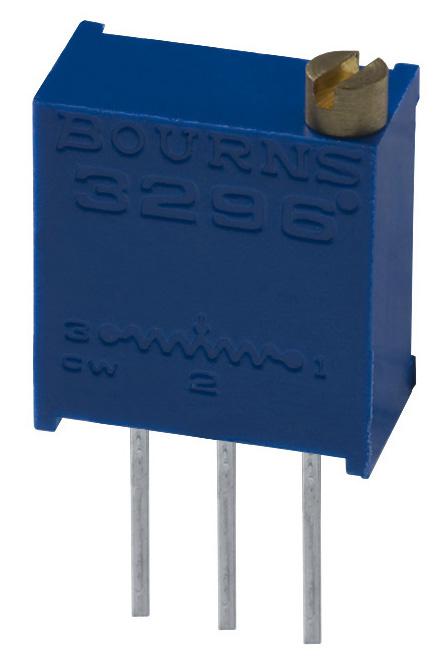

Bourns 3296W1504LF Trimming Potentiometer
The Bourns 3296 series are high-precision cermet, multi-turn, sealed trimming potentiometers designed for industrial applications. Featuring a compact 3/8-inch square form factor, these potentiometers offer reliable performance with resistance ranges from 10 ohms to 2 megaohms, ±10% resistance tolerance, and a temperature coefficient of ±100 ppm/°C. They support side or top adjustment, have a tough IP65 sealing for environmental protection, and a rotational life of 200 cycles. Suitable for precise calibration in demanding environments with a power rating of 0.5W and operating temperatures from -55°C to +125°C.
Bourns 3296W1504LF Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megaohms
- Resistance Tolerance: ±10%
- Resistance Absolute Minimum: 1% or 2 ohms max.
- Contact Resistance Variation: 1.0% or 3 ohms max.
- Temperature Coefficient: ±100 ppm/°C
- Power Rating: 0.5 watt at 70°C
- Operating Temperature Range: -55°C to +125°C
- Sealing: IP65 rating with chevron seal design
- Rotational Life: 200 cycles
- Environmental Resistance: MIL-STD-202 Method 103 humidity 96 hours, vibration 20 G, shock 100 G
- Termination Style: Solderable pins, with side or top adjustment options
- Material: Cermet, sealed for environmental protection
- Dimensions: 3/8 inch square, with various terminal configurations
- Markings: Manufacturer's logo, resistance code, style number, date code
Buy the Bourns Series 3296 Trimming Potentiometer: 3296W1504LF
Purchase the Bourns 3296W1504LF series sealed cermet trimming potentiometer online for reliable precision calibration. Designed for demanding industrial applications, it features a 3/8-inch square form factor, resistance from 10 ohms to 2 megaohms, and a sealing rating of IP65. With a power rating of 0.5W and an operating temperature range from -55°C to +125°C, it ensures high performance, environmental resistance, and durability. Ideal for precise adjustments in manufacturing, instrumentation, and control systems, order now for efficient setup and calibration.
Get Bourns 3296W1504LF today—built for precision and long-lasting durability, ideal for industrial calibration and sensitive electronic equipment.
Frequently Asked Questions
Where can I buy Bourns 3296W1504LF?
You can click on the BUY or RFQ button to purchase 3296W1504LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3296W1504LF?
You can download the 3296W1504LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3296W1504LF?
Bourns
