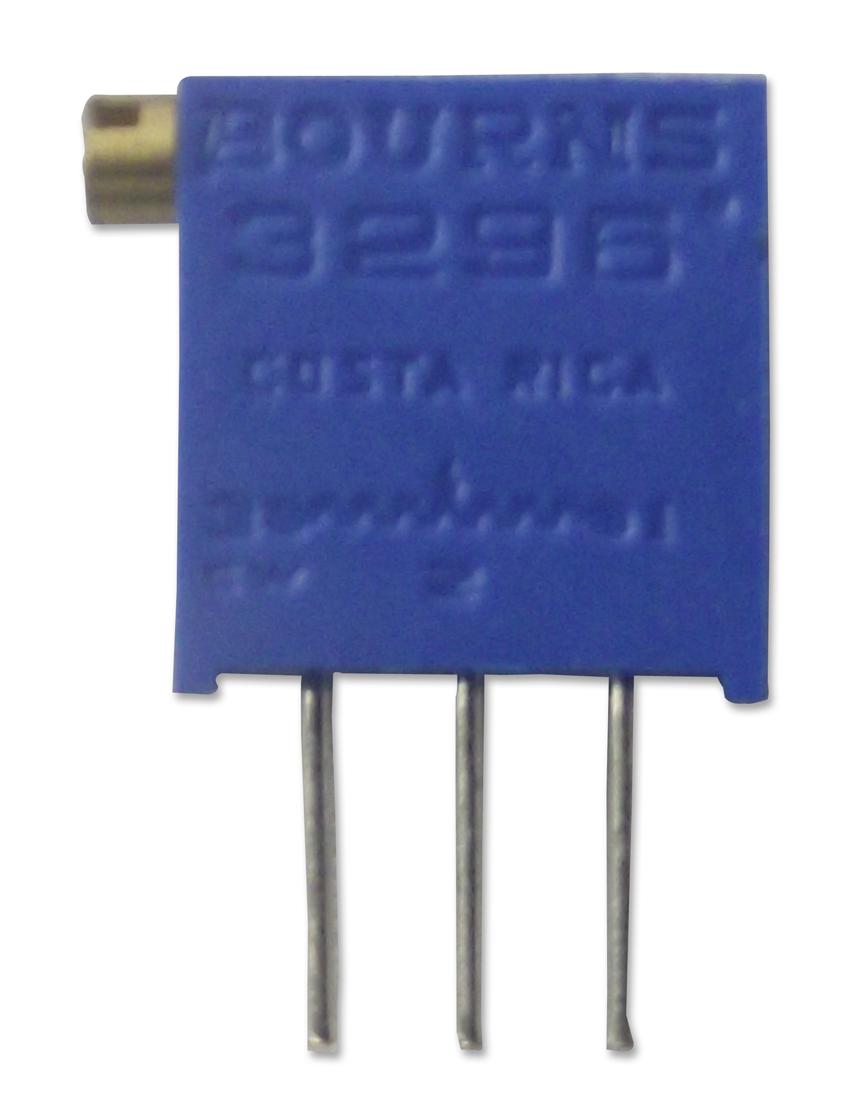

Bourns 3296X1200LF Multi-turn potentiometer
The Bourns 3296 series are cermet, through-hole, multi-turn trimming potentiometers designed for precise circuit tuning in industrial and electronics applications. Featuring a 3/8-inch square form factor, they offer accurate adjustments for resistance, voltage, and physical parameters, with sealed IP65 compliance for harsh environments. These potentiometers support resistance values from 10 ohms to 2 megohms with a ±10% tolerance, operate at temperatures from -55°C to +125°C, and deliver a power rating of 0.5W. Available in various terminal styles, they are ideal for calibration, measurement, and control tasks requiring durability and high precision.
Bourns 3296X1200LF Multi-turn potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10%
- Absolute Minimum Resistance: 2 ohms (or 1%), whichever is greater
- Contact Resistance Variation: 3 ohms (or 1%)
- Adjustability: Voltage ±0.01%, Resistance ±0.05%
- Power Rating: 0.5 watt at 70°C
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: 100 pprv/°C
- Sealing: IP65, Chevron seal design
- Mechanical Life: 200 cycles
- Operational Voltage: 70,000 VAC dielectric strength
- Vibration & Shock: 20 G, 100 G respectively
- Wiper Travel: 25 turns nominal
- Terminals: Solderable pins, five terminal styles
- Mounting: 3/8-inch square form factor
- Operating Environment: MIL-STD-202 humidity and vibration standards
- Weight: 0.03 oz.
- Flammability: UL94V-0
- Packaging: 50 pcs. per tube, tape and reel options available
Buy the Bourns Series 3296 Trimming Potentiometer: 3296X1200LF
Explore the Bourns 3296X1200LF multi-turn cermet potentiometer online today. Designed with a sealed IP65 rating and high resistance range, it offers precise tuning and excellent durability for industrial, measurement, and calibration tasks. With a 25-turn rotation, operating from -55°C to +125°C, and a power rating of 0.5W, this component ensures reliable performance in demanding environments. Available in multiple terminal styles, it’s ideal for applications requiring accurate and stable adjustments in electronic systems—order now for quick delivery and trusted quality.
Get Bourns 3296X1200LF today—built for precision and long-lasting durability in industrial calibration and control applications.
