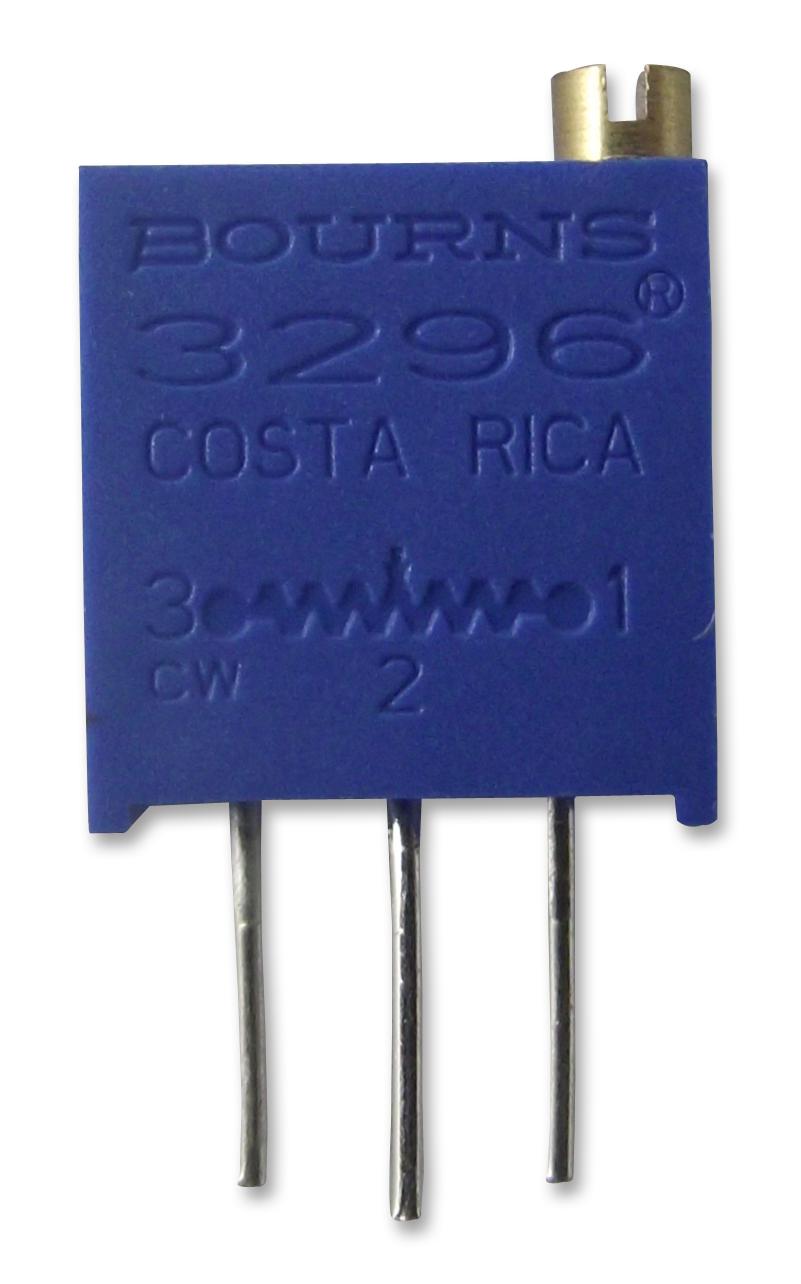

Bourns 3296Y1104LF Precision Trimmer Potentiometer
The 3296Y1104LF is a high-precision, multiturn trimmer potentiometer designed for industrial applications. This sealed cermet device features a 3/8-inch square form factor, with a 10 ohms to 2 megohms resistance range and a resistance tolerance of typically ±10%. It incorporates a chevron seal design for environmental protection, 5 terminal styles, and RoHS compliance. Suitable for trimming and adjustment in electronic circuitry, it offers stable performance over -55°C to +125°C, with a power rating of 0.5 watt at 70°C, and includes features such as solderable pins and robust mechanical stops for accurate calibration.
Bourns 3296Y1104LF Precision Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10% standard, tighter tolerance available
- Power Rating: 0.5 watt at 70°C
- Temperature Range: -55°C to +125°C
- Sealing: Chevron seal design with Fluorinert immersion test at 85°C
- Terminals: Solderable pins, RoHS compliant tin-plated
- Mechanical Stops: Durable for 200 cycles rotational life
- Physical Dimensions: 6.40 mm ±1.32 mm square, with standard resistance table
- Insulation Resistance: Min 1,000 megohms at 500 VDC
- Dielectric Strength: 70,000 V at sea level, 350 V at 25 turns
- Environmental Resistance: Vibration 20 G, Shock 100 G, MIL-STD-202 method 103 humidity testing
- Termination: Standard tin-plated or RoHS compliant options
Buy the Bourns 3296Y1104LF – Reliable Trimming Potentiometer for Industrial Applications
Purchase the Bourns 3296Y1104LF multiturn trimmer potentiometer online for your industrial or electronic projects. This sealed, high-accuracy device offers a resistance range from 10 ohms to 2 megohms, with tight tolerances and a power rating of 0.5 watt at 70°C. Its robust design withstands harsh environments with high insulation resistance, vibration, and shock resistance. Designed for easy soldering and calibration, it’s ideal for precision adjustments, ensuring reliable operation across a wide temperature range. Secure your order now for fast delivery and dependable performance.
Order your Bourns 3296Y1104LF precision multiturn trimmer today and ensure accurate calibration in industrial electronics with high reliability.
Frequently Asked Questions
Where can I buy Bourns 3296Y1104LF?
You can click on the BUY or RFQ button to purchase 3296Y1104LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3296Y1104LF?
You can download the 3296Y1104LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3296Y1104LF?
Bourns
