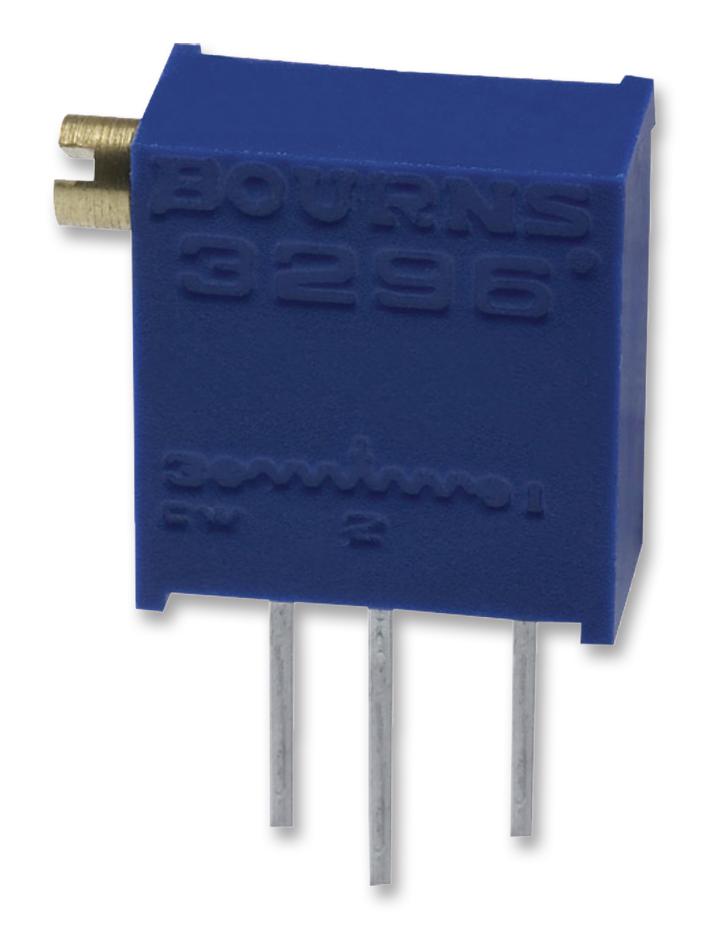

Bourns 3296Z1104LF Precision Trimmer Potentiometer
The 3296Z1104LF is a sealed, multiturn, cermet trimmer potentiometer designed for precision adjustment in industrial applications. It features a 6.40 mm square form factor, with a resistance range from 10 ohms to 2 megohms and standard resistance tolerance of ±10%. Its plastic housing offers robust environmental protection with an 85°C seal test and MIL-STD-202 humidity compliance. The device includes solderable terminals and is RoHS compliant, suitable for high-reliability electronic systems requiring accurate resistance calibration and compact dimensions. It supports reliable operation under vibration, shock, and temperature extremes.
Bourns 3296Z1104LF Precision Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10%
- Absolute Minimum Resistance: 2 ohms or 1% of resistance value
- Power Rating: 0.5 watt at 70°C
- Temperature Range: -55°C to +125°C
- Sealing: 85°C Fluorinert test, MIL-STD-202 humidity 96 hours
- Vibration Resistance: 20 G, Shock Resistance: 100 G
- Mechanical Stops: Wiper idle
- Terminals: Solderable pins
- Weight: 0.03 oz
- Flammability: UL 94V-0
- Packaging: 50 pcs. per tube, tape and reel options available
- Material: RoHS compliant tin-plated terminals
- Adjustability: Voltage ±0.01%, Resistance ±0.05%
Buy the Bourns Series 3296 Trimmer Potentiometer: 3296Z1104LF
Order the Bourns 3296Z1104LF now and enjoy high-quality, sealed multiturn cermet potentiometers designed for precise resistance adjustments. With a compact 6.4mm square profile, operating temperature from -55°C to +125°C, and RoHS compliance, it is ideal for industrial electronics requiring reliable calibration. The device offers excellent environmental resistance, including humidity and vibration, making it perfect for demanding applications. Purchase online today and benefit from fast delivery, durable build, and high-performance specifications for your engineering needs.
Buy Bourns 3296Z1104LF now and experience unmatched reliability and precision in resistance calibration for industrial and electronics projects.
