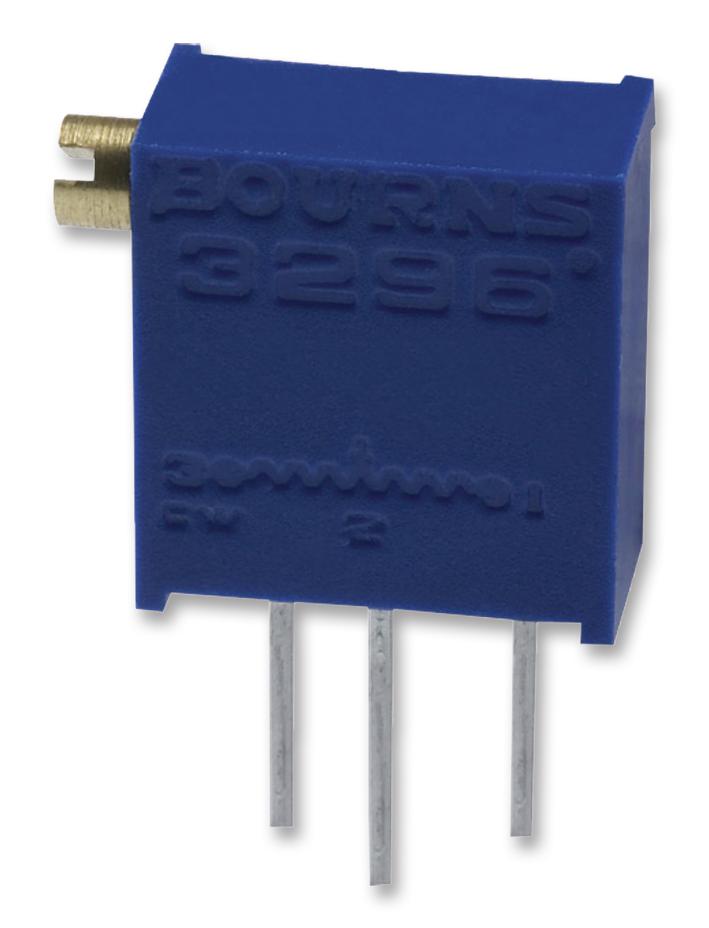

Bourns 3296Z1503LF Trimmer Potentiometer
The 3296Z1503LF is a 3/8-inch square trimmer potentiometer designed for precision adjustment in electronic circuits. It features a multiturn, sealed cermet construction with a 5S terminal style, making it suitable for industrial applications requiring reliable, fine resistance control. This high-quality trimmer offers a resistance range from 10 ohms to 2 megaohms, with tighter resistance tolerances available. It provides excellent environmental resilience, with features such as high insulation resistance, dielectric strength, vibration, and shock resistance, making it ideal for demanding electronic installations and calibration tasks. Its compact size and robust construction ensure long-term durability and precise performance.
Bourns 3296Z1503LF Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megaohms
- Resistance Tolerance: +10% standard, tighter options available
- Absolute Minimum Resistance: 2 ohms or 1% of resistance value
- Contact Resistance Variation: 3 ohms or 1.0% max
- Power Rating: 0.5 watt at 70°C, none at 125°C
- Temperature Range: -55°C to +125°C
- Insulation Resistance: ≥ 1000 megohms at 500 VDC
- Dielectric Strength: 70000V at sea level, 350V at 25 turns, 900VAC effective travel
- Mechanical: Wiper life 200 cycles, torque max 3 oz-in
- Environmental Resistance: Vibration 20G, Shock 100G, 96 hours humidity MIL-STD-202 Method 103
- Sealing: Chevron seal design, ULL 94V-0 flammability
- Terminals: Solderable pins, models available in tape and reel
- Dimensions: Approximately 6.4 mm square, with specific models and packaging options
- Compliance: RoHS 2015/863, EIA standard meet, UL listed style RU24 and RJR24
Buy the Bourns 3296Z1503LF – Reliable Trimmer for Industrial Applications
Purchase the Bourns 3296Z1503LF trimmer potentiometer today for precise resistance adjustment in your electronic projects. Designed with a sealed cermet and multiturn configuration, it ensures durability and high performance in industrial environments. Suitable for calibration, circuit tuning, and control applications, this compact component offers resistance from 10 ohms to 2 megaohms with tight tolerances. Featuring robust environmental resistance, high insulation, and compliance with RoHS standards, it provides reliable long-term operation. Order online now to secure this essential electronic adjustment part for your manufacturing or repair needs.
Get Bourns 3296Z1503LF today—built for precision and long-lasting durability in electronic calibration and industrial control systems.
Frequently Asked Questions
Where can I buy Bourns 3296Z1503LF?
You can click on the BUY or RFQ button to purchase 3296Z1503LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3296Z1503LF?
You can download the 3296Z1503LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3296Z1503LF?
Bourns
