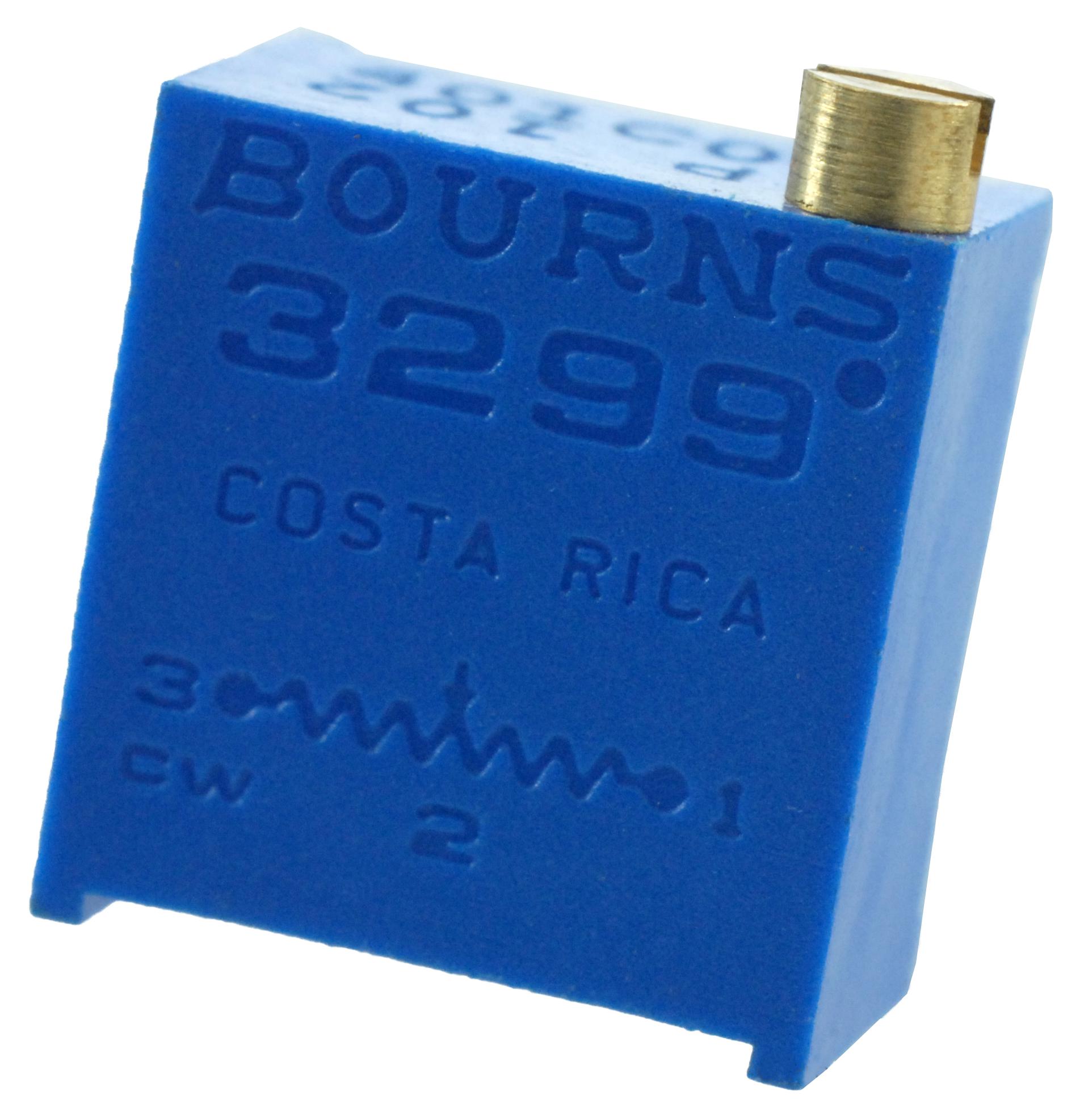

Bourns 3299P1102LF 3/8 Square Trimmer Potentiometer
The Bourns 3299P-1-102LF is a precision trimmer potentiometer designed for a wide range of industrial and commercial applications. This 3/8" square potentiometer provides adjustable resistance, allowing for fine-tuning of circuits and calibration processes. It features a robust design, sealed construction, and is available in RoHS compliant versions. The potentiometer's adjustable nature makes it suitable for applications requiring precise resistance adjustments, such as audio equipment, instrumentation, and process control systems. Bourns offers a variety of termination options and resistance values to meet specific application requirements.
Bourns 3299P1102LF 3/8 Square Trimmer Potentiometer Specifications:
- Standard Resistance Range: 10 to 2 megohms
- Resistance Tolerance: ±10 % std.
- Absolute Minimum Resistance: 1 % or 2 ohms max.
- Contact Resistance Variation: 1.0 % or 3 ohms max.
- Adjustability Voltage: ±0.01 %
- Resolution: Infinite
- Insulation Resistance: 500 vdc. 1,000 megohms min.
- Dielectric Strength Sea Level: 900 vac
- Effective Travel: 25 turns nom.
- Power Rating (300 volts max.) 70 °C: 0.5 watt
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert Humidity
- Vibration: 20 G (1 % ΔTR; 1 % ΔVR)
- Shock: 100 G (1 % ΔTR; 1 % ΔVR)
- Load Life: 1,000 hours 0.5 watt @ 70 °C
- Rotational Life: 200 cycles
- Torque: 3.0 oz-in. max.
- Mechanical Stops: Wiper idles
- Weight: 0.035 oz.
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: U.L. 94V-0
- Standard Packaging: 50 pcs. per tube
