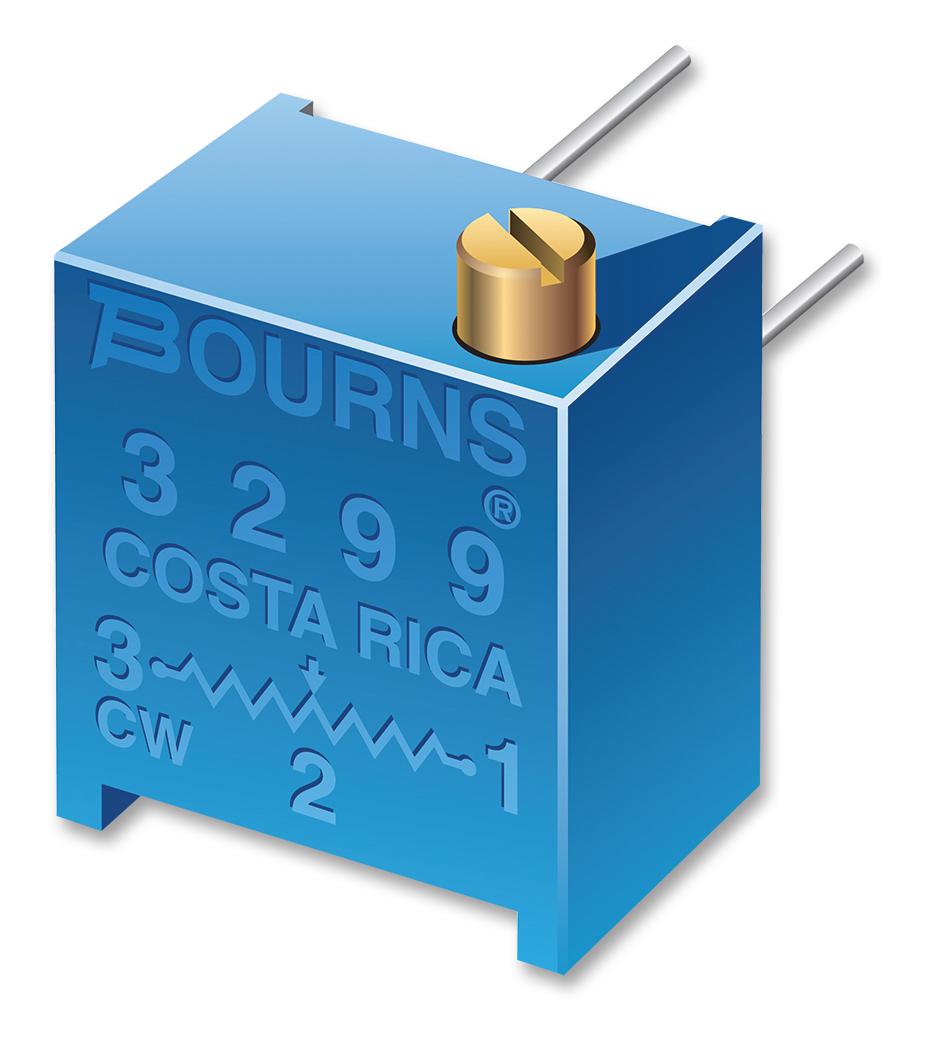

Bourns 3299P1505LF Trimmer Potentiometer
The Bourns 3299P series trimmer potentiometer is a sealed, industrial-grade, multiturn cermet device with a 3/8 inch square form factor. It features a resistance range from 10 ohms to 2 megohms with ±10% standard tolerance, offering high stability and precision for trimming or calibration. Designed for reliable performance at temperatures up to 125°C, it has low contact resistance variation, high dielectric strength at 70,000 feet altitude, and RoHS compliance. Suitable for applications requiring fine adjustment control in industrial and electronic systems.
Bourns 3299P1505LF Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10% standard (tighter available)
- Absolute Minimum Resistance: 2 ohms or 1% of resistance value, whichever is greater
- Contact Resistance Variation: 3 ohms max or 1%, whichever is greater
- Power Rating: 0.5 watts at 70°C, 0.25 watts at 125°C
- Temperature Range: -55°C to +125°C
- Dielectric Strength: 70,000 VAC at sea level, effective travel 900 VAC
- Environmental Resistance: Humidity MIL-STD-202 Method 103, 96 hours
- Vibration Resistance: 20 G, Shock Resistance: 100 G
- Mechanical Life: 200 cycles, Load Life: 1,000 hours at 0.5W/70°C
- Rotational Life: 200 cycles
- Physical Dimensions: 3/8 inch square, typical length 6.22 mm, terminal pins solderable
- Materials: Cermet resistive element, RoHS compliant tin-plated terminations
- Compliance: RoHS, UL 94V-0 flammability rated
- Packaging: 50 pieces per tube
Buy the Bourns Series 3299P Trimmer: 10Ω to 2MΩ Resistance
Purchase the Bourns 3299P series trimmer potentiometer online today and experience high precision adjustment in your electronic and industrial systems. This industrial-grade multiturn cermet device offers resistance from 10 ohms to 2 megohms with ±10% tolerance, ensuring reliable calibration. Its rugged construction can withstand high temperatures up to 125°C, humidity, vibration, and shock, making it ideal for demanding environments. Fast, secure online ordering guarantees quick delivery, enabling engineers and technicians to maintain precise control and optimum system performance with ease.
Get Bourns 3299P series trimmer today—built for precise calibration, stability, and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy Bourns 3299P1505LF?
You can click on the BUY or RFQ button to purchase 3299P1505LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3299P1505LF?
You can download the 3299P1505LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3299P1505LF?
Bourns
