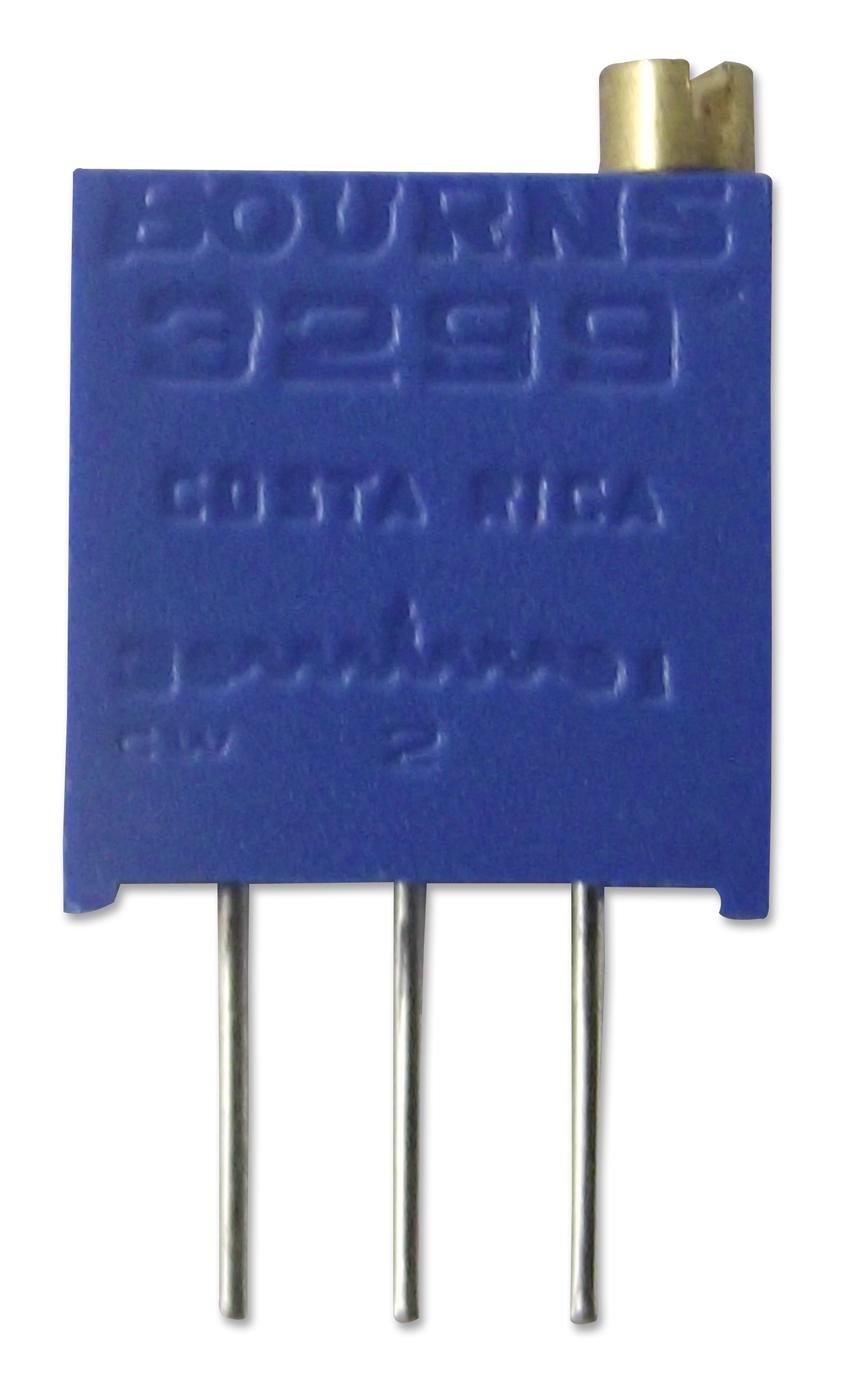

Bourns 3299W1254LF Trimmer Potentiometer
The Bourns 3299 Series 3/8 inch square trimmer potentiometer is a reliable, multi-turn cermet device designed for precision adjustment in industrial applications. It features sealed construction, solderable terminals, and multiple terminal styles, making it versatile for various trimmer applications. With resistance ranges from 10 ohms to 2 megohms, adjustable resolution, and high insulation resistance, this potentiometer withstands environmental stresses and ensures consistent performance. Suitable for calibration, tuning, and trimming in sophisticated electronic and industrial systems, the 3299 series offers durability, precise adjustments, and RoHS compliance for environmentally friendly manufacturing.
Bourns 3299W1254LF Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: +10%
- Absolute Minimum Resistance: 2 ohms or 1%
- Contact Resistance Variation: 3 ohms or 1%
- Adjustability: Voltage ±0.01 %, Resistance ±0.05 %
- Insulation Resistance: 1000 megohms min at 500 VDC
- Dielectric Strength: 70,000 feet altitude at sea level, 900 VAC travel
- Power Rating: 0.5 watt at 70°C, none at 125°C
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: 100 ppm/°C
- Mechanical Stops: Wiper idles, Torque maximum 3.0 oz-in
- Physical Size: 3/8 inch square, weight 0.035 oz
- Terminals: Solderable pins, RoHS compliant tin-plated or lead-plated
- Sealing: Sealed construction, tested at 85°C Fluorinert
- Vibration Resistance: 20 G, Shock Resistance: 100 G
- Rotational Life: 200 cycles, Load Life: 1000 hours at 70°C
- Markings: Manufacturer trademark, resistance code, wiring diagram, date code
- Packaging: 50 pcs per tube, adjustment tool H-90
Buy the Bourns Series 3299 Trimmer: 3/8 Inch Square Potentiometer: 3299W1254LF
Enhance your electronic calibration and tuning tasks with the durable and precise Bourns Series 3299 square trimmer potentiometer. Featuring multi-turn adjustment, sealed design, and resistance options from 10 ohms to 2 megohms, this component ensures accurate performance in harsh environments. Its RoHS compliance and solderable terminals make it ideal for industrial applications, calibration systems, and electronic manufacturing. With a powder-coated body, high insulation resistance, and robust construction, this trimmer offers long-term reliability and consistent adjustments. Purchase online today for quick delivery and trusted performance in your projects.
Order your Bourns Series 3299 3/8 Inch Square Trimmer today and ensure precise, reliable adjustments for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy Bourns 3299W1254LF?
You can click on the BUY or RFQ button to purchase 3299W1254LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3299W1254LF?
You can download the 3299W1254LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3299W1254LF?
Bourns
