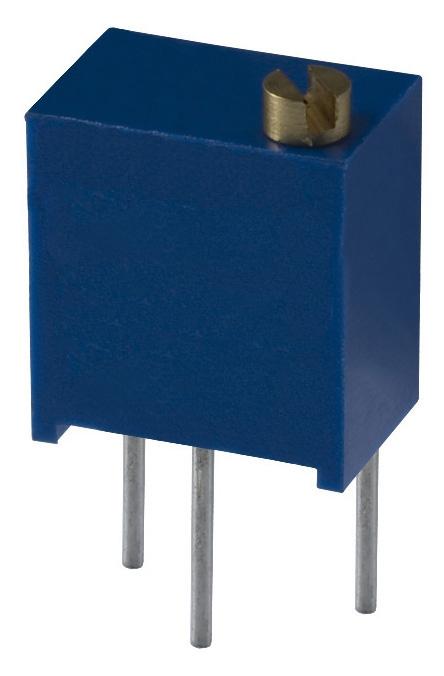

Bourns 3299Y1201LF Industrial Trimmer Potentiometer
The Bourns 3299 series is a 3/8-inch square trimmer potentiometer designed for industrial applications. It features multiple terminal styles, sealed construction, and RoHS compliance options. With resistance ranges from 10 ohms to 2 megaohms and standard resistance tolerance of ±10%, it offers precise adjustability for calibration and tuning in electronic circuits. The potentiometer operates at temperatures from -55°C to +125°C, with a power rating of 0.5 watt at 70°C, ensuring reliable performance under demanding conditions. Its durable design includes solderable terminals, a flanged wiper, and robust environmental resistance, making it ideal for trimmer and processing applications.
Bourns 3299Y1201LF Industrial Trimmer Potentiometer Specifications:
- Resistance Range: 10 to 2,000,000 ohms
- Resistance Tolerance: ±10%
- Absolute Min Resistance: 2 ohms or 1%
- Contact Resistance Variation: 3 ohms max.
- Insulation Resistance: 1000 MΩ min. at 500 VDC
- Dielectric Strength: 70,000 V at sea level
- Temperature Range: -55°C to +125°C
- Power Rating: 0.5 watt at 70°C
- Adjustability: 25 turns, voltage ±0.01%, resistance ±0.05%
- Mechanical Torque: 3 oz-in max.
- Weight: 0.035 oz.
- Flammability: UL 94V-0
- Terminals: Solderable pins
- Sealed construction, RoHS compliant options available
Buy the Bourns 3299 U– Reliable Industrial Trimmer for Electronic Calibration
Purchase the Bourns 3299 series industrial trimmer potentiometer online today to benefit from its wide resistance range, sealed and RoHS compliant design, and high durability. Perfect for calibration, tuning, and processing applications, it offers precise adjustment capabilities with 25 turns and low contact resistance variation. This robust component operates reliably from -55°C to +125°C and has a power rating of 0.5 watt at 70°C. Enjoy fast delivery and secure online ordering for your electronic assembly needs.
Order your Bourns Series 3299 trimmer potentiometer today and ensure precise, reliable adjustments in your industrial and electronic projects with the highest quality standards.
Frequently Asked Questions
Where can I buy Bourns 3299Y1201LF?
You can click on the BUY or RFQ button to purchase 3299Y1201LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3299Y1201LF?
You can download the 3299Y1201LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3299Y1201LF?
Bourns
