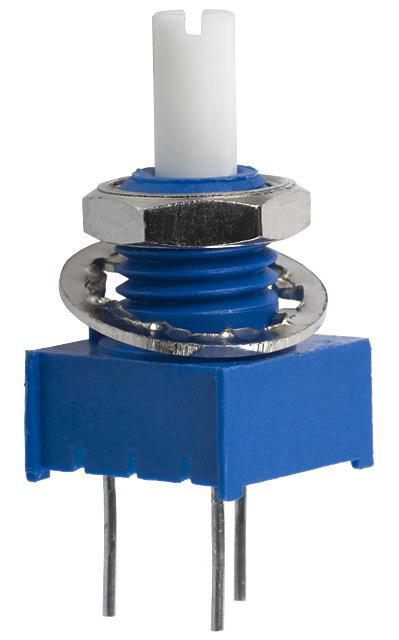

Bourns 3310C001102L Sealed Panel Control
The Bourns 3310C-001-102L is a 9mm square sealed panel control designed for demanding industrial environments. It utilizes a conductive plastic shaft and offers both PC board and bushing mounting options. Key features include resistance to industrial washing processes, a compact design to save space, and robust environmental protection with an IP67 rating. This potentiometer is ideal for applications requiring precise control and durability in challenging conditions, such as industrial equipment, medical devices, and automotive systems.
Bourns 3310C001102L Sealed Panel Control Specifications:
- Standard Resistance Range: 1 K ohms to 1 megohm
- Total Resistance Tolerance: ±20 %
- Independent Linearity: ±5 %
- End Resistance: 2 % or 2 ohms maximum
- Effective Electrical Angle: 270 ° ±15 °
- Contact Resistance Variation: 1 % or 1 ohm (whichever is greater)
- Dielectric Withstanding Voltage (Sea Level): 900 VAC minimum
- Dielectric Withstanding Voltage (70,000 Feet): 350 VAC minimum
- Insulation Resistance: 1,000 megohms minimum
- Power Rating @ 70 °C: 0.25 watts
- Operating Temperature Range: -40 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient Over Storage Temperature Range: ±1,000 ppm/°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours
- Rotational Life (No Load): 50,000 cycles
- Moisture Resistance: MIL-STD-202, Method 103, Condition B
- IP Rating: IP67
- Moisture Sensitivity Level: 1
- ESD Classification (HBM): N/A
- Stop Strength: 5.65 N-cm (8 oz.-in.)
- Mechanical Angle: 300 ° nominal
- Starting Torque: 3.53 N-cm (5.0 oz.-in.)
