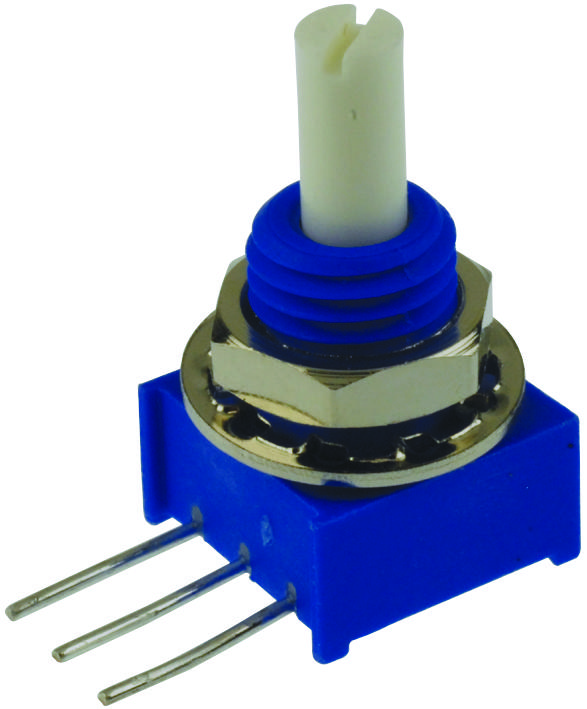

Bourns 3310C001105L Sealed Panel Control
The Bourns 3310C-001-105L is a 9mm square sealed panel control designed for demanding industrial applications. It utilizes a conductive plastic shaft and offers a compact footprint, saving valuable board and panel space. The sealed design provides excellent protection against moisture, dust, and vibration, making it ideal for harsh environments. It features a wide operating temperature range and is designed to withstand industrial washing processes. This potentiometer is a reliable solution for precise control in various industrial equipment and machinery.
Bourns 3310C001105L Sealed Panel Control Specifications:
- Standard Resistance Range: 1 K ohms to 1 megohm
- Total Resistance Tolerance: ±20 %
- Independent Linearity: ±5 %
- End Resistance: 2 % or 2 ohms maximum
- Effective Electrical Angle: 270 ° ±15 °
- Contact Resistance Variation: 1 % or 1 ohm (whichever is greater)
- Dielectric Withstanding Voltage (Sea Level): 900 VAC minimum
- Dielectric Withstanding Voltage (70,000 Feet): 350 VAC minimum
- Insulation Resistance: 1,000 megohms minimum
- Power Rating @ 70 °C: 0.25 watts
- Operating Temperature Range: -40 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient Over Storage Temperature Range: ±1,000 ppm/°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours
- Rotational Life (No Load): 50,000 cycles
- Moisture Resistance: MIL-STD-202, Method 103, Condition B
- IP Rating: IP67
- Moisture Sensitivity Level: 1
- ESD Classification (HBM): N/A
- Stop Strength: 5.65 N-cm (8 oz.-in.)
- Mechanical Angle: 300 ° nominal
- Starting Torque: 3.53 N-cm (5.0 oz.-in.)
