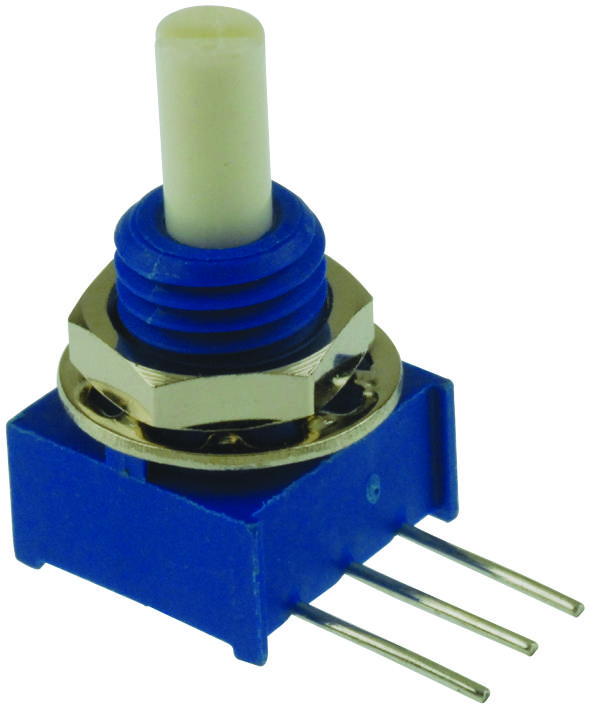

Bourns 3310H003104L 9mm Square Sealed Panel Control
The Bourns 3310H-003-104L is a robust 9mm square sealed panel control potentiometer designed for demanding industrial environments. Its conductive plastic construction, combined with PC board and bushing mount options, provides versatility in integration. The sealed design and ability to withstand industrial washing processes make it suitable for applications requiring high reliability and resistance to harsh conditions. The potentiometer offers a linear taper with a resistance range from 1K ohms to 1 megohm, and is rated IP67 for dust and water resistance.
Bourns 3310H003104L 9mm Square Sealed Panel Control Specifications:
- Standard Resistance Range: 1 K ohms to 1 megohm
- Total Resistance Tolerance: ±20 %
- Independent Linearity: ±5 %
- End Resistance: 2 % or 2 ohms maximum
- Effective Electrical Angle: 270 ° ±15 °
- Contact Resistance Variation: 1 % or 1 ohm (whichever is greater)
- Dielectric Withstanding Voltage (Sea Level): 900 VAC minimum
- Dielectric Withstanding Voltage (70,000 Feet): 350 VAC minimum
- Insulation Resistance: 1,000 megohms minimum
- Power Rating @ 70 °C: 0.25 watts
- Operating Temperature Range: -40 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient Over Storage Temperature Range: ±1,000 ppm/°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours
- Rotational Life (No Load): 50,000 cycles
- Moisture Resistance: MIL-STD-202, Method 103, Condition B
- IP Rating: IP67
- Moisture Sensitivity Level: 1
- ESD Classification (HBM): N/A
- Stop Strength: 5.65 N-cm (8 oz.-in.)
- Mechanical Angle: 300 ° nominal
- Starting Torque: 3.53 N-cm (5.0 oz.-in.)
