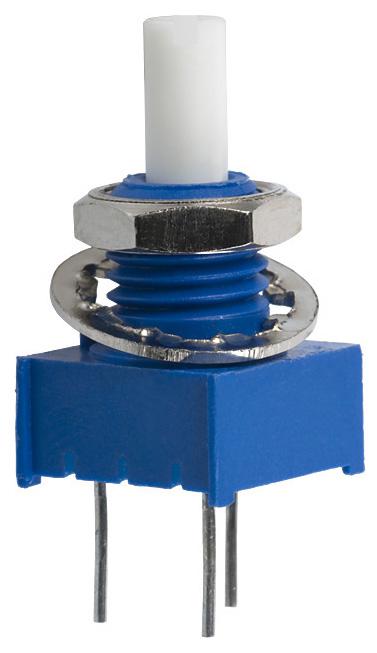

Bourns 3310Y001504L 9mm Square Sealed Panel Control
The Bourns 3310Y-001-504L is a sealed panel control potentiometer designed for demanding industrial environments. This potentiometer features a compact 9mm square design, conductive plastic construction, and offers both PC board and bushing mount options. It is engineered to withstand industrial washing processes and provides reliable performance across a wide range of operating conditions. The sealed design ensures protection against moisture and contaminants, making it suitable for applications in harsh environments. Its robust mechanical and electrical characteristics ensure long-term reliability and consistent performance.
Bourns 3310Y001504L 9mm Square Sealed Panel Control Specifications:
- Standard Resistance Range: 1 K ohms to 1 megohm
- Total Resistance Tolerance: ±20 %
- Independent Linearity: ±5 %
- End Resistance: 2 % or 2 ohms maximum
- Effective Electrical Angle: 270 ° ±15 °
- Contact Resistance Variation: 1 % or 1 ohm (whichever is greater)
- Dielectric Withstanding Voltage (Sea Level): 900 VAC minimum
- Dielectric Withstanding Voltage (70,000 Feet): 350 VAC minimum
- Insulation Resistance: 1,000 megohms minimum
- Power Rating @ 70 °C: 0.25 watts
- Operating Temperature Range: -40 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient Over Storage Temperature Range: ±1,000 ppm/°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours
- Rotational Life (No Load): 50,000 cycles
- Moisture Resistance: MIL-STD-202, Method 103, Condition B
- IP Rating: IP67
- Moisture Sensitivity Level: 1
- ESD Classification (HBM): N/A
- Stop Strength: 5.65 N-cm (8 oz.-in.)
- Mechanical Angle: 300 ° nominal
- Starting Torque: 3.53 N-cm (5.0 oz.-in.)
Buy the 3310Y-001-504L BOURNS 9mm Square Sealed Panel Control | myMectronic
Securely purchase the Bourns 3310Y-001-504L potentiometer online for reliable performance in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3310Y001504L?
You can click on the BUY or RFQ button to purchase 3310Y001504L from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3310Y001504L?
You can download the 3310Y001504L datasheet or visit the Bourns website for support.
Who is the manufacturer of 3310Y001504L?
Bourns
