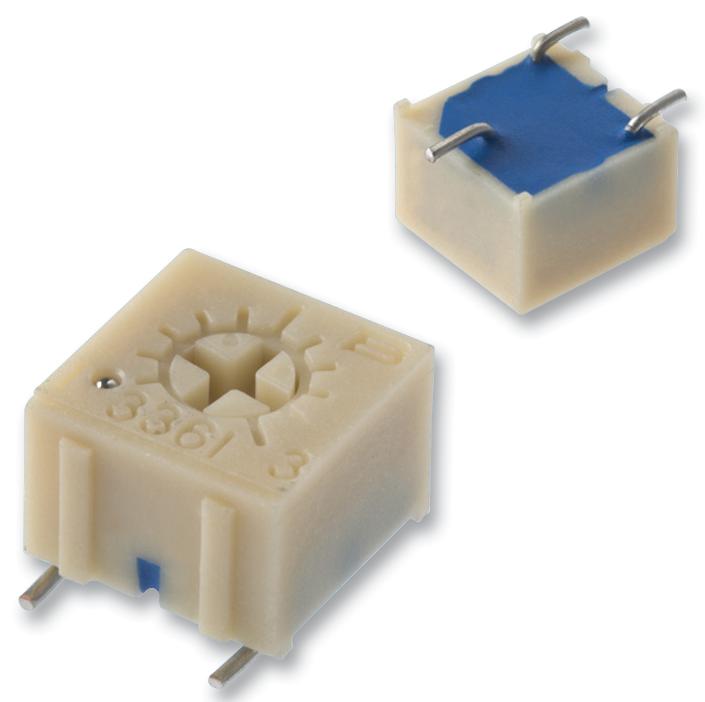

Bourns 3361P1101GLF Surface Mount Trimmer
The 3361 Trimpot is a 1/4 inch square surface-mount adjustable trimming potentiometer designed for precise resistance adjustment in industrial applications. It features single-turn, cermet elements, and is sealed to withstand harsh environments, including immersion cleaning. RoHS compliant and compatible with automated manufacturing processes, this miniature device offers resistance ranges from 10 ohms to 2 megohms, with tolerance options as tight as 1%. It features solderable pins, a 240° adjustment angle, and a power rating of 0.5 watts at 70°C, ensuring reliable performance across wide temperature ranges.
Bourns 3361P1101GLF Surface Mount Trimmer Specifications:
- Resistance Range: 10 to 2,000,000 ohms
- Tolerance: 10% standard, tighter options available
- Power Rating: 0.5 watt at 70°C
- Temperature Range: -55°C to +125°C
- Adjustment Angle: 240° nominal
- Sealing: Sealed for harsh environments including immersion cleaning
- Terminals: Solderable pins, tin-plated (RoHS compliant)
- Vibration: 30G
- Shock: 100G
- Humidity: 96 hours at 85°C
- Resistive element: Cermet, single-turn
- Dielectric Strength: 900 VAC at sea level, 350 VAC at 80,000 feet
- Construction: 1/4 inch square surface-mount package
Buy the Bourns Series 3361 Trimpot: 3361P1101GLF
Enhance your electronic projects with the reliable Bourns Series 3361 surface-mount trimmer. This adjustable potentiometer offers resistance from 10 ohms to 2 megohms, sealed for harsh environments, and RoHS compliant. Ideal for industrial automation, calibration, and tuning applications, its compact 1/4 inch square package ensures easy installation. With a 240° adjustment angle and solderable pins, this product guarantees precise, stable resistance adjustments in demanding conditions. Purchase online today for dependable, high-quality performance.
Order your Bourns Series 3361 adjustable surface-mount trimmer potentiometer today and ensure precise resistance tuning for reliable industrial performance.
Frequently Asked Questions
Where can I buy Bourns 3361P1101GLF?
You can click on the BUY or RFQ button to purchase 3361P1101GLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3361P1101GLF?
You can download the 3361P1101GLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3361P1101GLF?
Bourns
