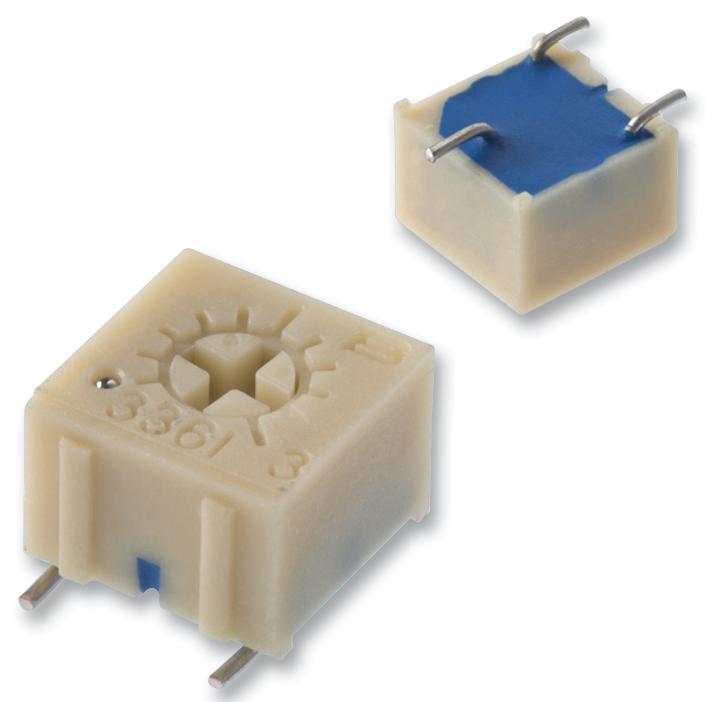

Bourns 3361P1202GLF Surface Mount Trimmer Potentiometer
The 3361 is a 1/4 inch square surface-mount SMD trimmer potentiometer designed for precise calibration and adjustments in harsh environments. It features a single-turn cermet resistive element, RoHS compliance, and is suitable for automated manufacturing. Its robust construction withstands immersion cleaning processes and harsh operational conditions, making it ideal for industrial applications. The device offers resistance ranges from 10 ohms to 2 megohms, with tight tolerances, high stability, and a 270° adjustability angle. It supports solderable pins, has a temperature range from -55°C to +125°C, and complies with safety standards including UL 94V-0 flammability rating.
Bourns 3361P1202GLF Surface Mount Trimmer Potentiometer Specifications:
- Resistance Range: 10 to 2 megohms, tolerance ±10% (custom tolerances available)
- Resistance Absolute Minimum: 7.04 ohms
- Contact Resistance Variation: < 3% or 3 ohms max
- Resistance Resolution: Infinite
- Insulation Resistance: 1000 megohms minimum at 500V DC
- Dielectric Strength: 900 VAC at sea level, 350 VAC at 80,000 ft altitude
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: 4100 ppm/°C
- Power Rating: 0.5 watt at 70°C, 0 watt at 125°C
- Adjustment Angle: 270° nominal
- Sealing: Sealed for immersion cleaning and harsh environments
- Soldering: +260°C for 20 seconds maximum
- Vibration: 30G, Shock: 100G
- Mechanical Torque: Max 3.0 oz-in, Min 7.0 oz-in stop strength
- Terminals: Solderable pins, RoHS compliant tin-plated
- Package: 500 or 750 pieces per reel, surface-mount style
- Flammability: UL 94V-0
Buy the Bourns 3361P1202GLF – Reliable Surface Mount Trimmer Potentiometer for Industrial Applications
Order the Bourns 3361P1202GLF surface mount trimmer potentiometer today to ensure precise calibration in your industrial projects. Engineered for demanding conditions, it offers resistance from 10 ohms to 2 megohms with tight tolerances, high stability, and RoHS compliance. Suitable for automated assembly, its sealed design withstands harsh environments and immersion cleaning. With a 270° adjustability, high insulation resistance, and reliable construction, this component is ideal for calibration, tuning, and adjustments in manufacturing, ensuring durability and accuracy in critical applications.
Buy Bourns 3361P1202GLF now and experience unmatched reliability and precise adjustment capabilities in industrial environments.
