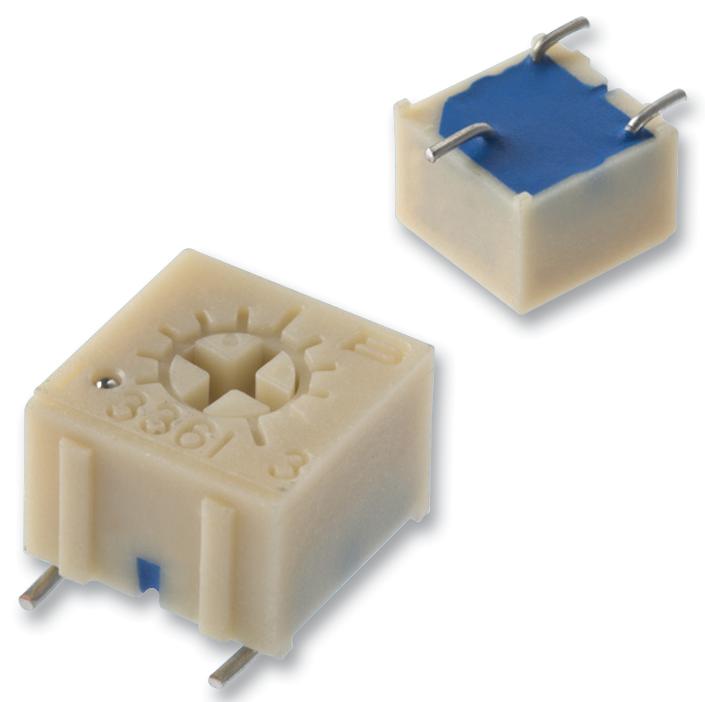

Bourns 3361P1503GLF SMD Trimmer Potentiometer
This 1/4-inch square SMD trimmer potentiometer offers precise resistance adjustment within a resistance range of 10 ohms to 2 megohms, featuring a sealed design suitable for harsh environments and immersion cleaning processes. Constructed with RoHS-compliant tin-plated terminals, it provides an adjustable resistance with infinite resolution and reliable electrical characteristics. Its compact miniature package with 270° mechanical rotation and 0.02 oz-in. torque ensures ease of use and durability in automated manufacturing processes, making it ideal for calibration, tuning, and trimming applications in industrial electronics.
Bourns 3361P1503GLF SMD Trimmer Potentiometer Specifications:
- Resistance Range: 10Ω to 2MΩ
- Resistance Tolerance: ±10% (standard), tighter tolerances available
- Absolute Minimum Resistance: 2Ω (1% or greater)
- Contact Resistance Variation: max 3Ω or 3%
- Adjustment Angle: 270° nominal
- Electrical Resistance: 15-30Ω typical
- Voltage: 30V (max)
- Insulation Resistance: 500VDC, 10 MΩ min
- Dielectric Strength: 80,000 feet
- Temperature Range: -55°C to +105°C
- Temperature Coefficient: ±200 ppm/°C
- Sealing: Sealed for harsh environments and immersion cleaning
- Soldering Temperature: 260°C for 10 seconds
- Mechanical Rotation: 270°
- Torque: Max 0.02 oz-in
- Dimensions: 0.25 inches square, height varies with resistance value
- Packaging: 500 or 750 pieces per reel, RoHS compliant
- Certifications: RoHS compliant, UL94 V-0
Buy the Bourns 3361P1503GLF – Reliable SMD Trimmer for Industrial Applications
Secure your production with the Bourns SMD Trimmer Potentiometer. Designed for high reliability in harsh environments, it offers precise resistance adjustment from 10Ω to 2MΩ. Its sealed, RoHS-compliant miniature package ensures durability and performance in automation and calibration tasks. Easy to install via surface-mount technology, it is ideal for industrial electronics, providing infinite resolution, consistent electrical characteristics, and robust construction. Purchase online today and enhance your manufacturing process with trusted quality and long-term performance.
Buy Bourns 3361P1503GLF now and experience unmatched precision and durability in surface-mount trimming solutions.
Frequently Asked Questions
Where can I buy Bourns 3361P1503GLF?
You can click on the BUY or RFQ button to purchase 3361P1503GLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3361P1503GLF?
You can download the 3361P1503GLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3361P1503GLF?
Bourns
