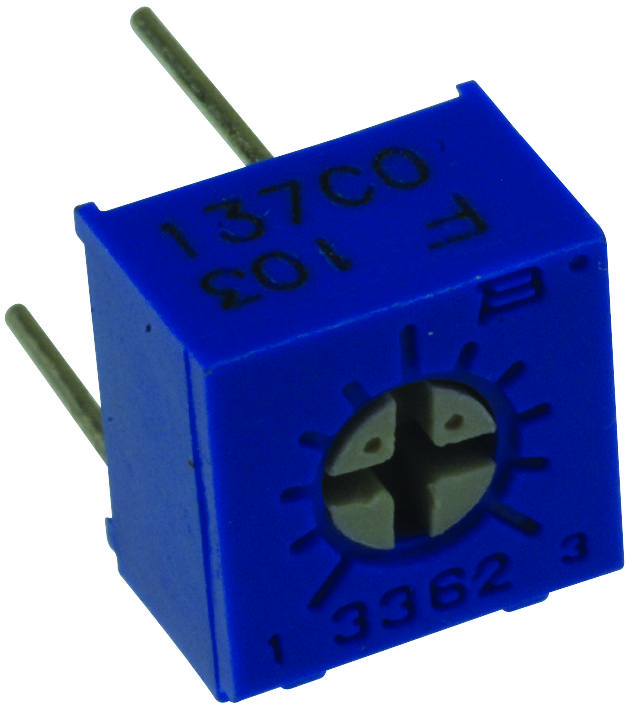

Bourns 3362F1205LF precision trimmer potentiometer
The 3362F1205LF is a precision trimmer potentiometer featuring a miniature, sealed, and industrial-grade design suitable for automatic machine adjustment interfaces. It withstands harsh environments, immersion cleaning, and offers high stability with a resistance range from 10 ohms to 2 megohms. This top adjust model has a 270° mechanical angle, solderable terminals, and RoHS compliance. Its compact size, rugged construction, and adjustable precision make it ideal for electronic calibration, signal adjustment, and control systems requiring reliable performance under demanding conditions.
Bourns 3362F1205LF precision trimmer potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±1% or 2 ohms minimum
- Power Rating: 0.50 watt at 70°C
- Temperature Range: -65°C to +125°C
- Mechanical Angle: 270° nominal
- Terminals: Solderable pins, RoHS compliant, tin-plated
- Dimensions: 0.25 inches (6.35 mm) square, custom options available
- Adjustment Angle: 240° nominal
- Sealing: Sealed package for harsh environments
- Environmental Tests: Vibration 30 G, Shock 100 G, humidity MIL-STD-202, 96 hours
- Weight: 0.02 oz (0.56 g)
- Flammability: UL 94V-0
- RoHS Compliance: Yes
Buy the Buy Bourns 3362F1205LF Trimmer Potentiometer Part Number 3362F1205LF Online
Discover the Bourns 3362F1205LF precision trimmer potentiometer available online. This miniature, sealed, and industrial-grade device offers high stability and adjustable resistance from 10 ohms to 2 megohms, making it ideal for automatic machine calibration, control systems, and challenging environmental conditions. RoHS compliant, with excellent environmental resistance, compact size, solderable terminals, and a 270° adjustment range, it ensures precise signal tuning, durability, and reliable performance in demanding applications.
Buy Bourns 3362F1205LF precision trimmer potentiometer now and experience unmatched reliability and high stability in demanding industrial environments.
