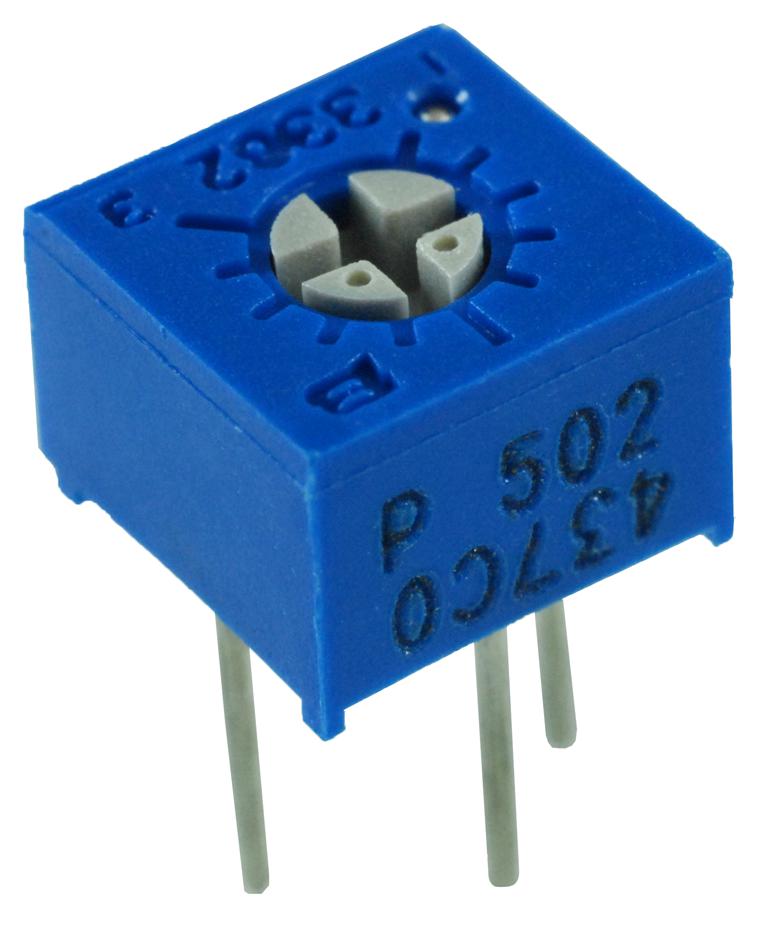

Bourns 3362P1502LF 1/4 Square Trimpot Trimming Potentiometer
The Bourns 3362P-1-502LF is a 1/4˝ square trimpot trimming potentiometer designed for a wide range of industrial applications. Its miniature package, rotor designed for automatic machine adjust interface, and ability to withstand harsh environments make it ideal for use in automated equipment and demanding conditions. Available in RoHS compliant versions, this potentiometer offers reliable performance and ease of integration.
Authorized Distributors
Source:Mouser Electronics
Part No:3362P-1-502LF
Stock:3973
Inv Date:05-29-2026
Price: Unit price: $0.9
Buy/RFQ:
Source:RS Americas, Inc
Part No:3362P-1-502LF
Stock:0
Inv Date:05-28-2026
Price: Unit price: $0.9
Buy/RFQ:
Source:Onlinecomponents.com
Part No:3362P-1-502LF
Stock:18750
Inv Date:05-28-2026
Price: Unit price: $0.5174
Buy/RFQ:
Source:Master Electronics
Part No:3362P-1-502LF
Stock:18750
Inv Date:05-28-2026
Price: Unit price: $0.5174
Buy/RFQ:
Bourns 3362P1502LF 1/4 Square Trimpot Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 %
- Absolute Minimum Resistance: 2.77 ohms
- Contact Resistance Variation: 1 % or 3 ohms max
- Adjustability Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Resolution: Infinite
- Insulation Resistance: 500 vdc
- Dielectric Strength: 900 vac (Sea Level), 350 vac (80,000 Feet)
- Adjustment Angle: 240 ° nom.
- Power Rating: 0.50 watt (70 °C), 0 watt (125 °C)
- Temperature Range: -55 °C to +125 °C
- Seal Test: 85 °C Fluorinert
- Temperature Coefficient: ±100 ppm/°C
- Humidity: MIL-STD-202 Method 103
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours (3 % ΔTR; 3 % or 3 ohms, CRV)
- Rotational Life: 200 cycles (4 % CRV)
- Mechanical Angle: 270 ° nom.
- Torque: 3.0 oz-in. max.
- Stop Strength: 7.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.02 oz
- Marking: Resistance code, terminal numbers, manufacturer’s model number, style and date code
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: U.L. 94V-0
- Packaging: 50 pcs. per tube
- Adjustment Tool: H-90
Buy the 3362P-1-502LF BOURNS 1/4 Square Trimpot Trimming Potentiometer | myMectronic
Purchase the Bourns 3362P-1-502LF trimming potentiometer securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3362P1502LF?
You can click on the BUY or RFQ button to purchase 3362P1502LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3362P1502LF?
You can download the 3362P1502LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3362P1502LF?
Bourns
