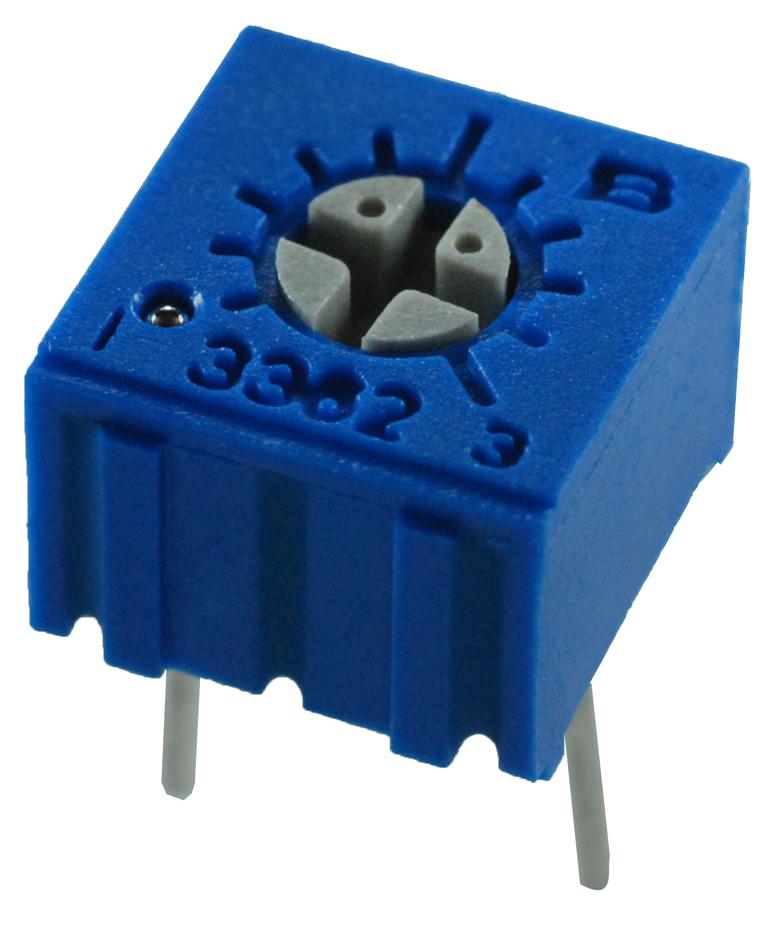

Bourns 3362P1503LF 1/4 Square Trimpot Trimming Potentiometer
The Bourns 3362P-1-503LF is a 1/4" square trimpot trimming potentiometer designed for a wide range of industrial applications. This potentiometer features a miniature package, a rotor designed for automatic machine adjust interface, and can withstand harsh environments and immersion cleaning processes. Available in RoHS compliant versions, it offers versatility and reliability for trimming and adjustment tasks. The potentiometer's design ensures precise control and ease of integration into various electronic systems.
Bourns 3362P1503LF 1/4 Square Trimpot Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 %
- Absolute Minimum Resistance: 2.77 ohms
- Contact Resistance Variation: 1 % or 3 ohms max
- Adjustability Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Resolution: Infinite
- Insulation Resistance: 500 vdc
- Dielectric Strength: 900 vac (Sea Level), 350 vac (80,000 Feet)
- Adjustment Angle: 240 ° nom.
- Power Rating: 0.50 watt (70 °C), 0 watt (125 °C)
- Temperature Range: -55 °C to +125 °C
- Seal Test: 85 °C Fluorinert
- Temperature Coefficient: ±100 ppm/°C
- Humidity: MIL-STD-202 Method 103
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours (3 % ΔTR; 3 % or 3 ohms, CRV)
- Rotational Life: 200 cycles (4 % CRV)
- Mechanical Angle: 270 ° nom.
- Torque: 3.0 oz-in. max.
- Stop Strength: 7.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.02 oz
- Marking: Resistance code, terminal numbers, manufacturer’s model number, style and date code
- Wiper: 50 % (Actual TR) ±10 %
- Flammability: U.L. 94V-0
- Standard Packaging: 50 pcs. per tube
Buy the 3362P-1-503LF BOURNS 1/4 Square Trimpot Trimming Potentiometer | myMectronic
Securely purchase the Bourns 3362P-1-503LF trimming potentiometer online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3362P1503LF?
You can click on the BUY or RFQ button to purchase 3362P1503LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3362P1503LF?
You can download the 3362P1503LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3362P1503LF?
Bourns
