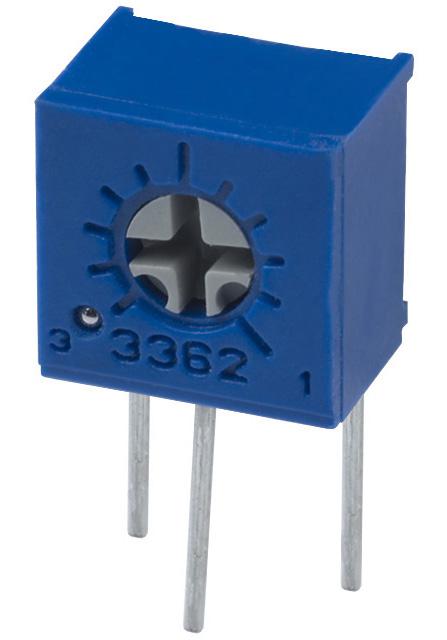

Bourns 3362X1272LF Trimmer Potentiometer
The 3362X1272LF is a compact, sealed trimmer potentiometer designed for precision adjustment in industrial applications. Featuring a miniature package, it withstands harsh environments, immersion cleaning, and has a reliable sealing test. It provides an adjustable resistance range from 10 ohms to 2 megohms with ±10% tolerance, ideal for calibration and tuning. With a 240° adjustment angle and solderable pins, this model offers high insulation resistance, dielectric strength, and stability in temperature from -65°C to +125°C. RoHS compliant, it also supports tape and reel packaging for automated assembly.
Bourns 3362X1272LF Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10%
- Adjustment Angle: 240°
- Power Rating: 0.50 watt at 70°C
- Temperature Range: -65°C to +125°C
- Dielectric Strength: 900 vac at sea level, 350 vac at 80,000 feet
- Insulation Resistance: 1000 megohms min at 500 VDC
- Sealing Test: 85°C Fluorinert immersion
- Mechanical Angles: 270° nominal
- Torque: 3.0 oz-in max
- Terminals: Solderable pins
- Weight: 0.02 oz
- Flammability: UL 94V-0
- RoHS compliant: Yes
- Packaging: 50 pcs per tube, tape and reel options available
Buy the Buy Bourns Trimmer Potentiometer Part Number 3362X1272LF Online
Get the Bourns 3362X1272LF sealed trimmer potentiometer online today. Perfect for precise adjustment in industrial applications, its compact and sealed design handles harsh environments, immersion cleaning, and temperature extremes from -65°C to +125°C. Featuring wide resistance options from 10Ω to 2MΩ with ±10% accuracy, it offers high insulation resistance, dielectric strength, and durability. With RoHS compliance and tape and reel packaging, it ensures efficient and reliable installation for calibration, tuning, and control in demanding settings.
Order your Bourns 3362X1272LF sealed trimmer potentiometer today and ensure precise calibration in rugged environments with reliable RoHS compliance.
Frequently Asked Questions
Where can I buy Bourns 3362X1272LF?
You can click on the BUY or RFQ button to purchase 3362X1272LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3362X1272LF?
You can download the 3362X1272LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3362X1272LF?
Bourns
