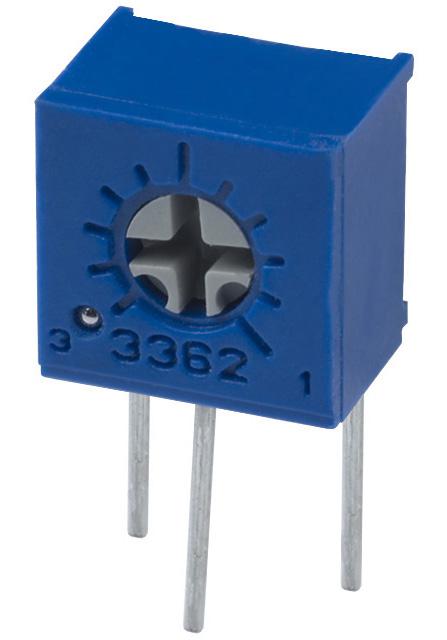

Bourns 3362Z1202LF Sealed Trimmer Potentiometer
The 3362Z1202LF is a precision single-turn trimmer potentiometer designed for industrial applications, featuring a miniature sealed package and a rotor suitable for automatic machine adjustment. It withstands harsh environments, immersion cleaning, and offers high stability with resistance tolerance of ±1% or 2 ohms, and a resistance range from 10 ohms to 2 megohms. Its robust construction includes solderable terminals, a 240° adjustment angle, and RoHS compliance, making it ideal for electronic calibration, measurement, and control systems requiring reliable performance in demanding conditions.
Bourns 3362Z1202LF Sealed Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±1% or 2 ohms (whichever is greater)
- Power Rating: 0.50 watt at 70°C
- Temperature Range: -65°C to +125°C
- Adjustment Angle: 240° nom.
- Termination: Solderable pins, RoHS compliant
- Dimensional Size: Deep 0.46 inches, side adjust models 0.25 inches wide
- Mechanical Angle: 270° nom.
- Torque: 3.0 oz-in. max.
- Stop Strength: 7.0 oz-in. min.
- Sealing: Sealed construction withstands harsh environments
- Vibration/Shock Resistance: 30 G / 100 G respectively
- RoHS Compliance: Yes
Buy the Buy Bourns 3362Z1202LF Sealed Trimmer Potentiometer Part Number 3362Z1202LF Online
Experience the precision and durability of the Bourns 3362Z1202LF sealed trimmer potentiometer, ideal for industrial calibration and electronic adjustment. Its robust waterproof and sealed design ensures reliable performance even in harsh environmental conditions. With a resistance range from 10 ohms to 2 megohms and tolerance of ±1%, this miniature device provides stable electrical characteristics and easy adjustment over a 240° angle. Perfect for high-precision applications requiring stability, RoHS compliance, and long-term reliability, this trimmer is available for quick online purchase.
Buy Bourns 3362Z1202LF sealed trimmer potentiometer now and experience unmatched reliability and precision for critical electronic calibration tasks.
Frequently Asked Questions
Where can I buy Bourns 3362Z1202LF?
You can click on the BUY or RFQ button to purchase 3362Z1202LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3362Z1202LF?
You can download the 3362Z1202LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3362Z1202LF?
Bourns
