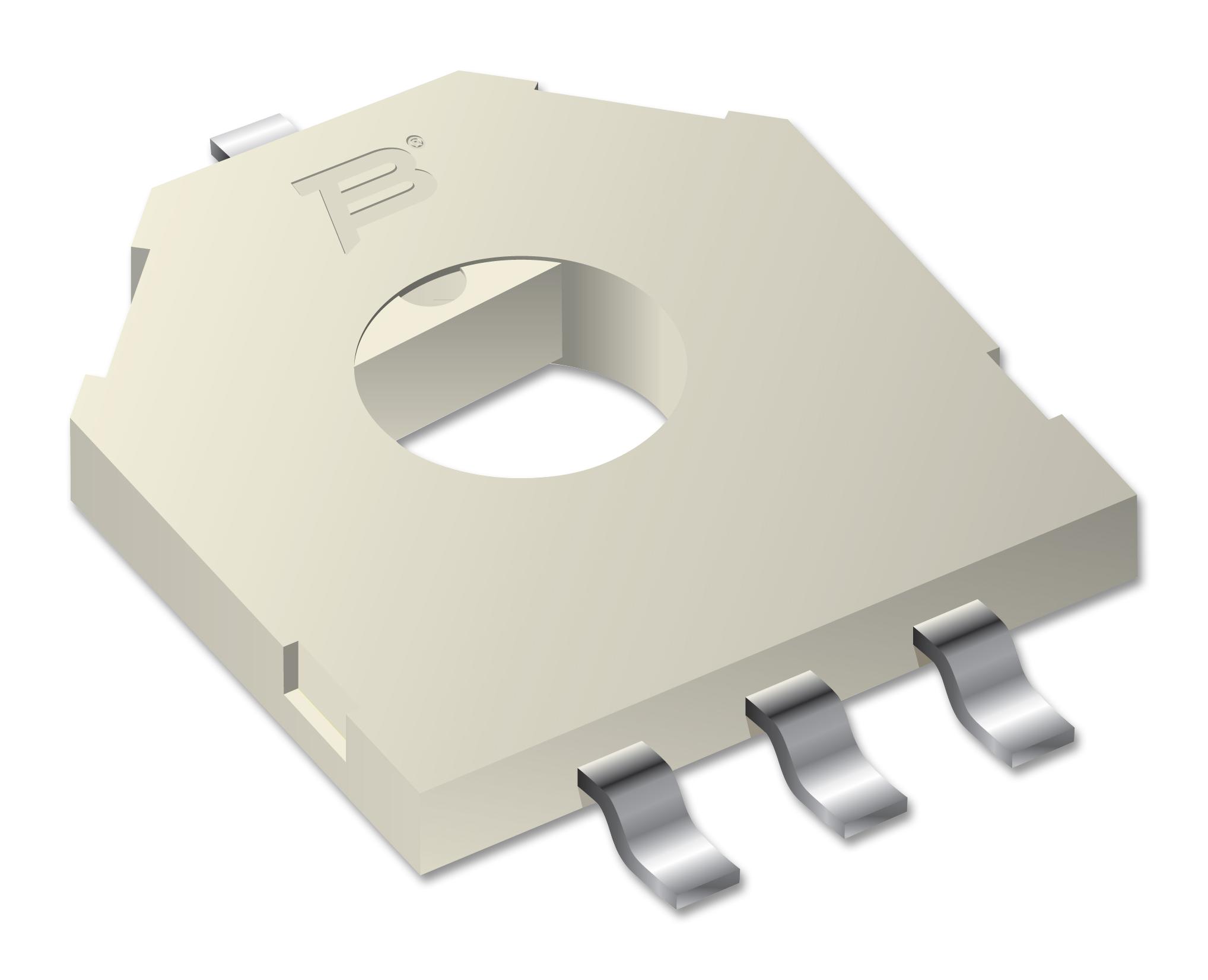

Bourns 3382H1103 Rotary Position Sensor
The 3382H rotary position sensor by Bourns features a compact, 12 mm square design with a thin profile, suitable for volume control, motion controllers, dishwasher systems, and automotive temperature range. It offers 1 million rotational cycles, RoHS compliance, and provides reliable, precise position detection with surface mount and through-hole versions. The device operates within -40°C to +120°C, delivering high durability, resistance to environmental factors, and consistent performance, making it an ideal choice for industrial automation, automotive, and consumer electronics applications.
Bourns 3382H1103 Rotary Position Sensor Specifications:
- Dimensions: 12 mm square, thin profile, approximately 0.0321 g resistance code and date code
- Operating Temperature Range: -40°C to +120°C
- Power Rating: 0.05 watt at 50°C, resistance range 2.5K to 100K ohms
- Resistance Tolerance: 430 % std., Linearity: 82%, Resolution: Essentially infinite
- Insulation Resistance: 100 megohms min. @ 500 VDC, Dielectric Strength: 70,000 feet at sea level
- Mechanical Rotation: Continuous, Resistance: 50 gf-cm max, Rotary cycles: 1,000,000
- Features: Surface mount and through-hole, dustproof, RoHS compliant, thin profile
- Packaging: 1000 pcs./13" reel or 50 pcs./tube, compatible with automated assembly
- Resistance Code: 252 (2.5K), 502 (5K), 103 (10K), 253 (25K), 503 (50K), 104 (100K)
Buy the Bourns 3382H – Reliable Rotary Position Sensor for Industrial Applications
Purchase the Bourns 3382H rotary position sensor online today and ensure your projects benefit from its exceptional durability and precise angle measurement. With a compact 12 mm square design, it supports both surface mount and through-hole mounting for versatile integration. The sensor offers high cycle life of one million rotations, RoHS compliance, and operates effectively across a temperature range of -40°C to +120°C. Ideal for volume control, motion controllers, dishwasher control systems, and automotive applications, it provides reliable performance in demanding environments.
Order your Bourns 3382H rotary position sensor today and enhance your industrial equipment with highly durable, high-precision position detection.
Frequently Asked Questions
Where can I buy Bourns 3382H1103?
You can click on the BUY or RFQ button to purchase 3382H1103 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3382H1103?
You can download the 3382H1103 datasheet or visit the Bourns website for support.
Who is the manufacturer of 3382H1103?
Bourns
