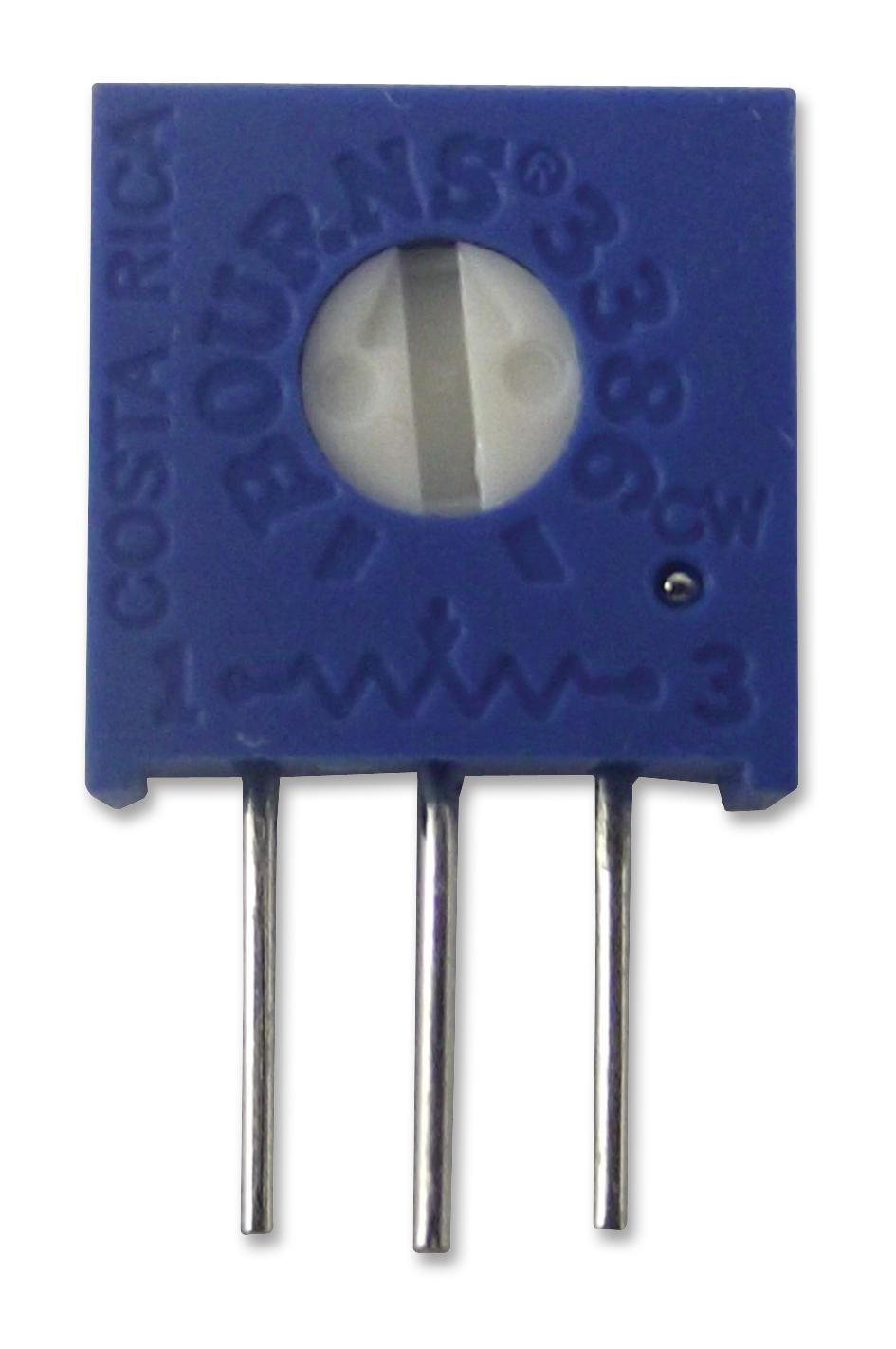

Bourns 3386H1222LF trimming potentiometer
The 3386H1222LF is a precision, sealed trimmer potentiometer with a 3/8 inch square form factor, designed for fine-tuning electrical circuits. It features a top adjustment type with a 310° mechanical rotation angle, solderable pins, and a durable construction suitable for industrial and automation applications. Its resistance ranges from 10 ohms to 2 megohms, with a standard tolerance of +10%. The device offers a power rating of 0.5 watt at 85°C, operates within -55°C to +125°C, and complies with RoHS standards, ensuring reliable performance in harsh environments.
Bourns 3386H1222LF trimming potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: +10%
- Power Rating: 0.5 watt at 85°C
- Operating Temperature: -55°C to +125°C
- Adjustment Angle: 310° nominal
- Solderable pins
- Mechanical Torque: 5.0 oz-in max
- Stop Strength: 15.0 oz-in min
- Flammability: UL 94V-0
- Weight: 0.03 oz.
- RoHS compliant
- Certifications: UL Listed
- Sealed design suitable for environmental sealing
- Dimensons: 3/8 inch square form factor
- Material: Metal adjustment shaft, plastic housing
- Packaging: 50 pcs. per tube
Buy the Buy Boums Trimming Potentiometer Part Number 3386H1222LF Online
Order the Boums 3386H1222LF sealed trimmer potentiometer online today. Designed for precision adjustments, it features a 310° rotation, solder pins, and a 10 ohms to 2 megohms resistance range. Its 0.5 watt power rating at 85°C and operating temperature from -55°C to +125°C ensure excellent performance in harsh environments. RoHS compliant, this durable component is ideal for automation, instrumentation, and industrial equipment. Fast, reliable shipping makes it easy to incorporate this high-quality trimmer into your projects.
Get Boums 3386H1222LF today—built for precision, durability, and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy Bourns 3386H1222LF?
You can click on the BUY or RFQ button to purchase 3386H1222LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3386H1222LF?
You can download the 3386H1222LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3386H1222LF?
Bourns
