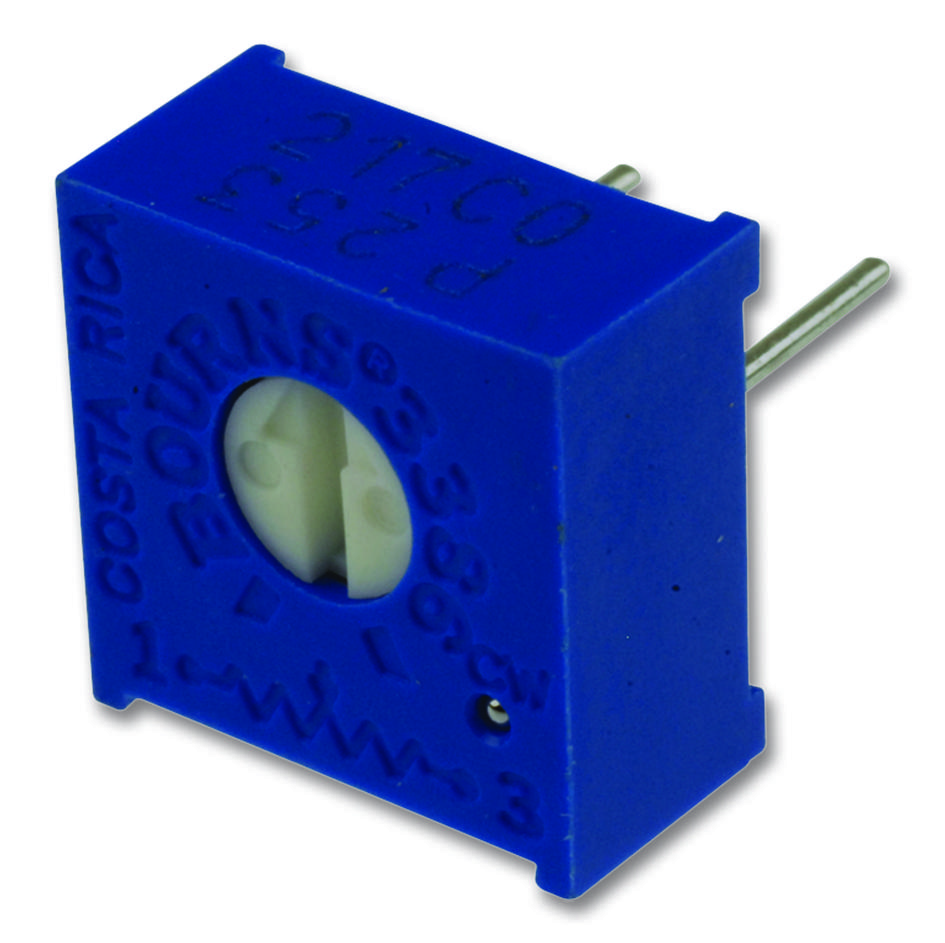

Bourns 3386P1253LF Square Trimming Potentiometer
The Bourns 3386 series is a versatile line of 3/8” square trimming potentiometers, ideal for a wide range of industrial applications requiring precise adjustment. These trimpots offer single-turn operation, cermet resistive elements for stability, and are available in various configurations including top and side adjust styles, extended shafts, and knob options. They are designed for reliable performance and are RoHS compliant, making them suitable for environmentally conscious designs. The 3386P-1-253LF model specifically provides a robust and adjustable solution for electronic circuits.
Bourns 3386P1253LF Square Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 % std. (.030)
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 2 % or 3 ohms max.
- Adjustability: Infinite
- Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Insulation Resistance: 500 vdc. 1,000 megohms min.
- Dielectric Strength: 900 vac (Sea Level), 350 vac (70,000 Feet)
- Adjustment Angle: 280 ° nom.
- Power Rating: 0.5 watt (85 °C), 0.1 watt (125 °C)
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Humidity: MIL-STD-202 Method 103 96 hours
- Vibration: 30 G (1 % ΔTR, 1 % ΔVR)
- Load LifeShock: 100 G (1 % ΔTR; 1 % ΔVR)
- Rotational Life: 200 cycles
- Mechanical Angle: 310 ° nom.
- Torque: 5.0 oz-in. max.
- Stop Strength: 15.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.03 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number
- Flammability: U.L. 94V-0
