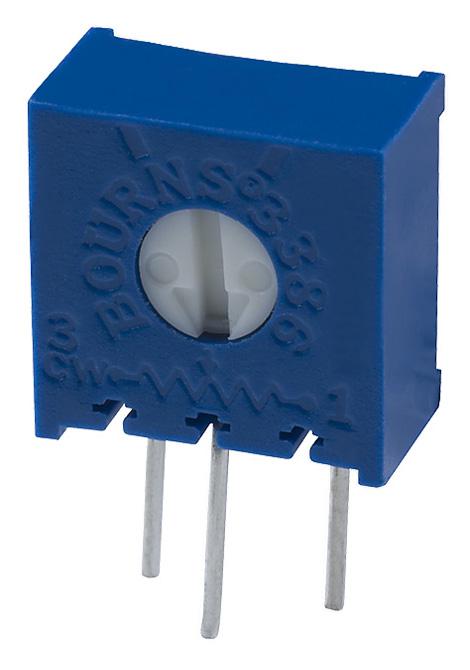

Bourns 3386X1504LF Square Trimming Potentiometer
The Bourns 3386X-1-504LF is a versatile 3/8" square trimming potentiometer ideal for a wide range of industrial applications requiring precise adjustment. This sealed trimpot offers a robust design, ensuring reliable performance in demanding environments. It is RoHS compliant and available with several customization options, including a knob for finger adjustment, an extended shaft for remote operation, and a cross-slot rotor for enhanced precision. The potentiometer's features make it suitable for applications in audio equipment, instrumentation, and various control systems.
Bourns 3386X1504LF Square Trimming Potentiometer Specifications:
- Features: Single Turn / Cermet / Industrial / Sealed
- RoHS Compliant: Available
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 % std. (.030)
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 2 % or 3 ohms max.
- Adjustability: Infinite
- Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Insulation Resistance: 500 vdc
- Resolution: Infinite
- Dielectric Strength: 900 vac (Sea Level), 350 vac (70,000 Feet)
- Adjustment Angle: 280 ° nom.
- Power Rating: 0.5 watt @ 85 °C, 0.1 watt @ 125 °C
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Humidity: MIL-STD-202 Method 103
- Vibration: 30 G (1 % ΔTR; 1 % ΔVR)
- Shock: 100 G (1 % ΔTR; 1 % ΔVR)
- Load Life: 1,000 hours (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Rotational Life: 200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Mechanical Angle: 310 ° nom.
- Torque: 5.0 oz-in. max.
- Stop Strength: 15.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.03 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style
- Flammability: U.L. 94V-0
- Wiper: 50 % (Actual TR) ±10 %
