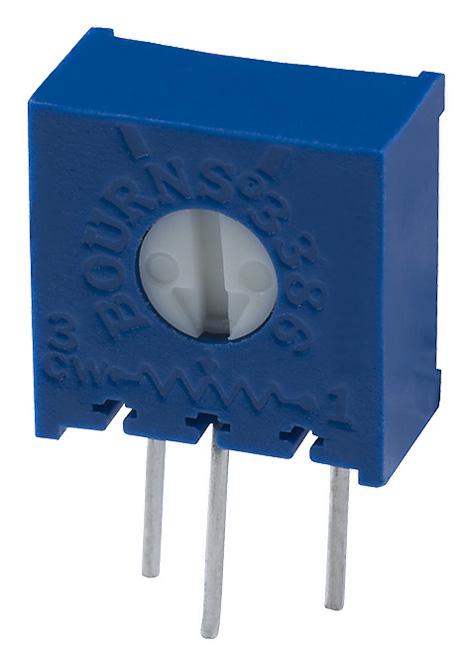

Bourns 3386XDF6503LF 3/8 Square Trimpot
The Bourns 3386 series trimming potentiometers are versatile components used for precise adjustment in a wide range of industrial and consumer applications. These potentiometers offer a compact design, robust construction, and reliable performance. The 3386X-DF6-503LF model specifically provides a 3/8” square format with various adjustment options, including extended shafts and knobs, catering to diverse user preferences and integration requirements. RoHS compliance ensures environmental responsibility, making it suitable for modern electronic designs.
Bourns 3386XDF6503LF 3/8 Square Trimpot Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 % std. (.030)
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 2 % or 3 ohms max.
- Adjustability: Infinite
- Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Insulation Resistance: 500 vdc. 1,000 megohms min.
- Dielectric Strength: 900 vac (Sea Level), 350 vac (70,000 Feet)
- Adjustment Angle: 280 ° nom.
- Power Rating: 0.5 watt (85 °C), 0.1 watt (125 °C)
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Humidity: MIL-STD-202 Method 103 96 hours
- Vibration: 30 G (1 % ΔTR, 1 % ΔVR)
- Load LifeShock: 100 G (1 % ΔTR; 1 % ΔVR)
- Rotational Life: 200 cycles
- Mechanical Angle: 310 ° nom.
- Torque: 5.0 oz-in. max.
- Stop Strength: 15.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.03 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number
- Flammability: U.L. 94V-0
Buy the 3386X-DF6-503LF Bourns 3/8 Square Trimpot | myMectronic
Purchase the Bourns 3386X-DF6-503LF trimming potentiometer securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3386XDF6503LF?
You can click on the BUY or RFQ button to purchase 3386XDF6503LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3386XDF6503LF?
You can download the 3386XDF6503LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3386XDF6503LF?
Bourns
